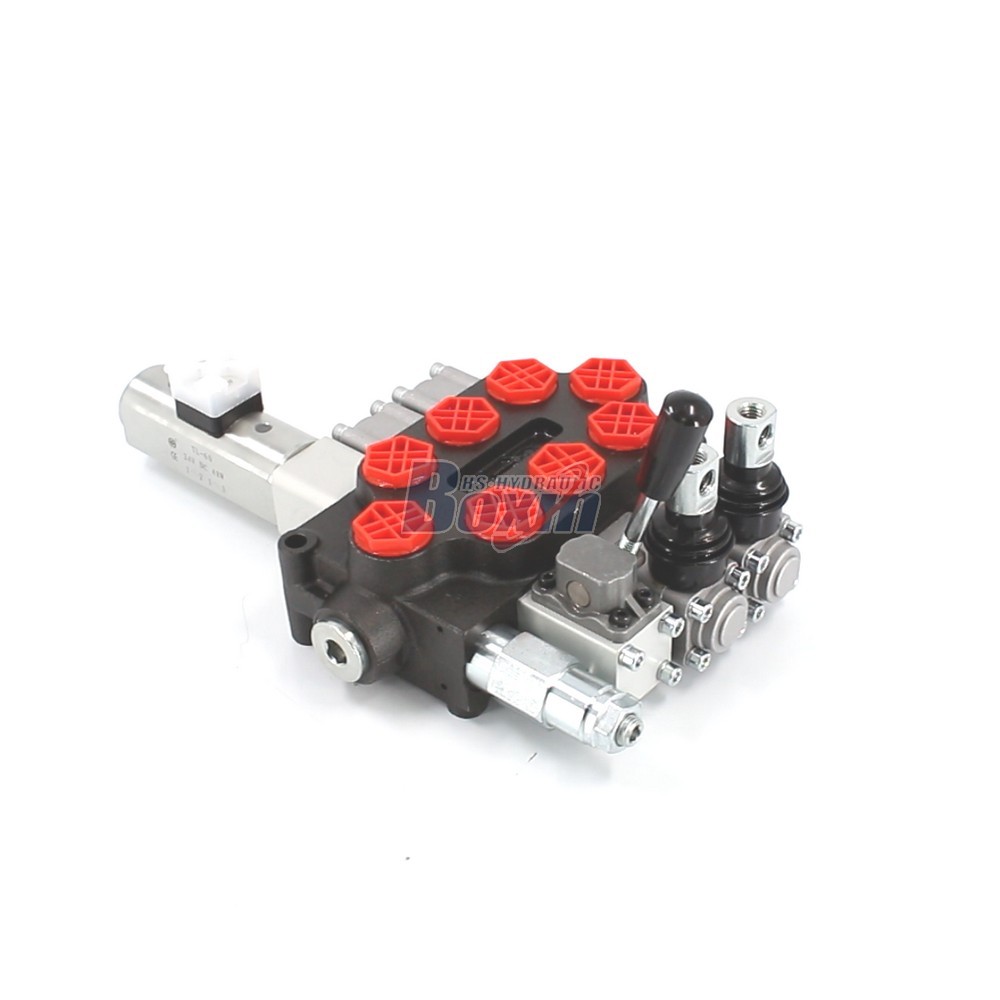

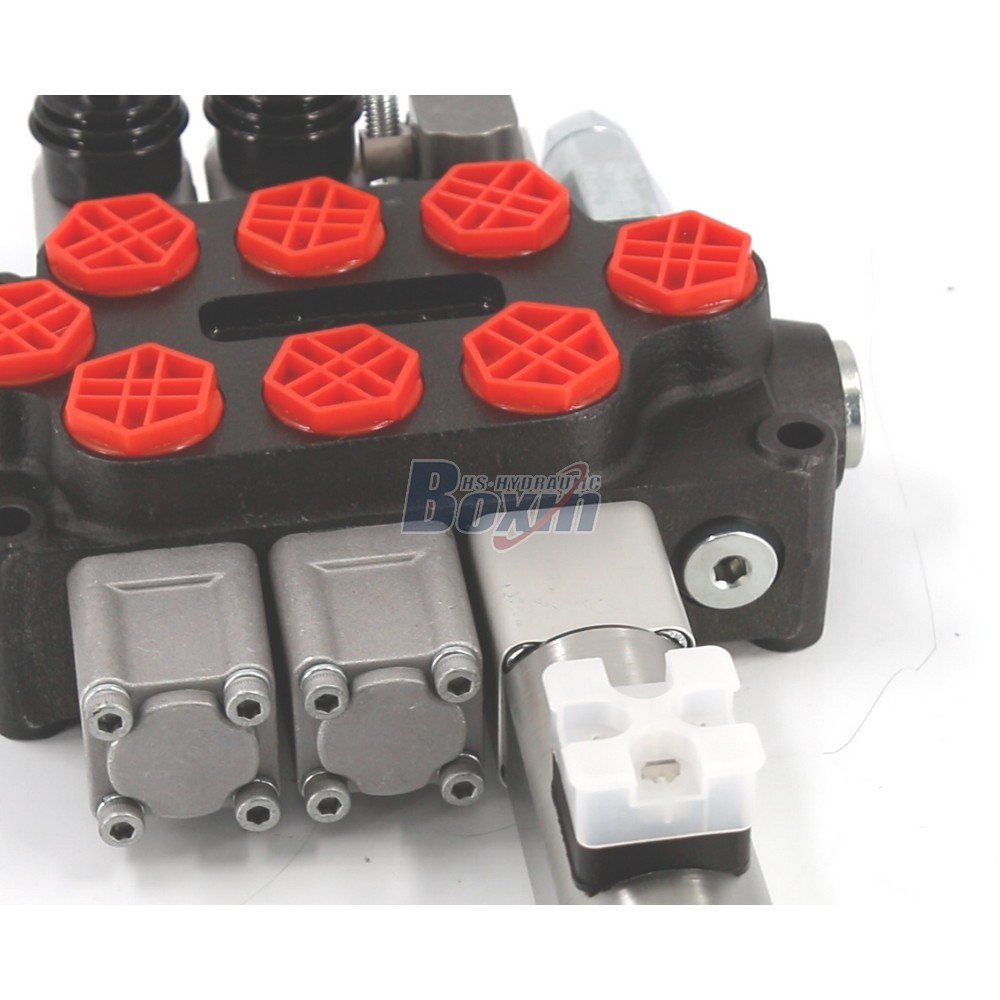

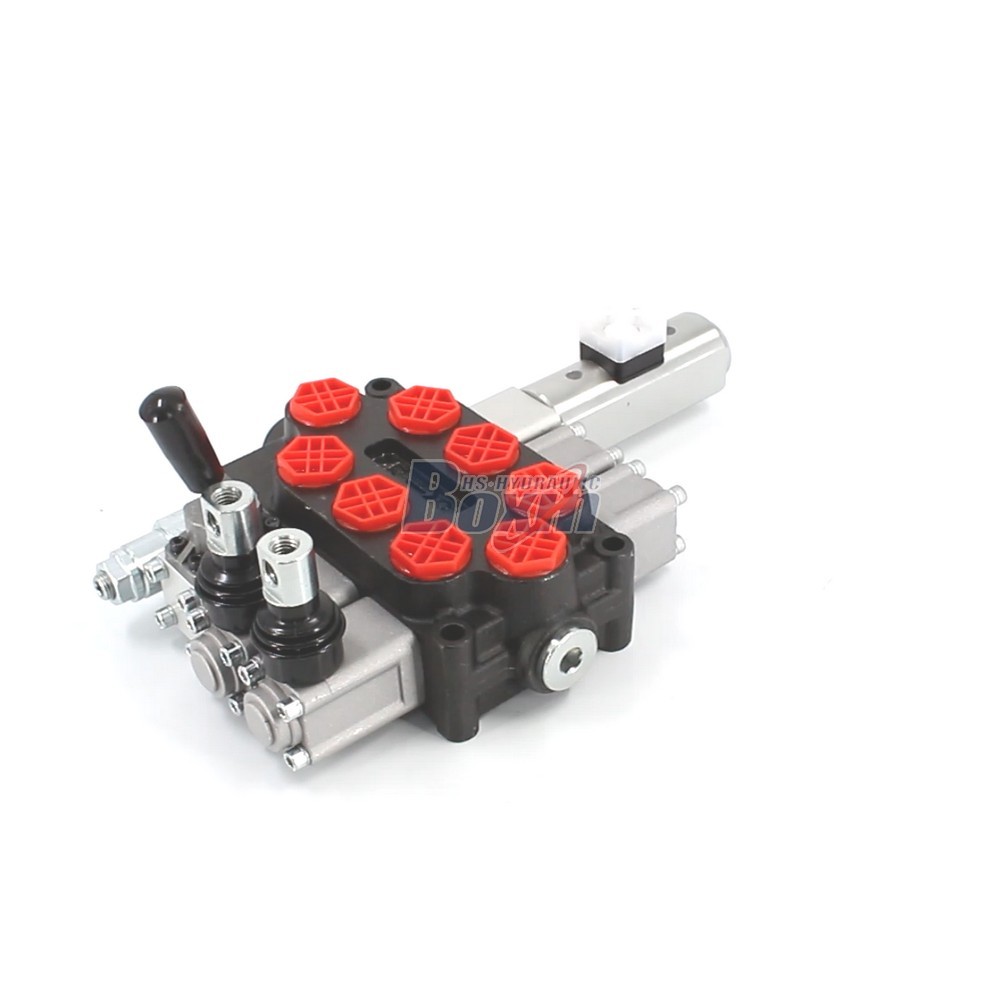

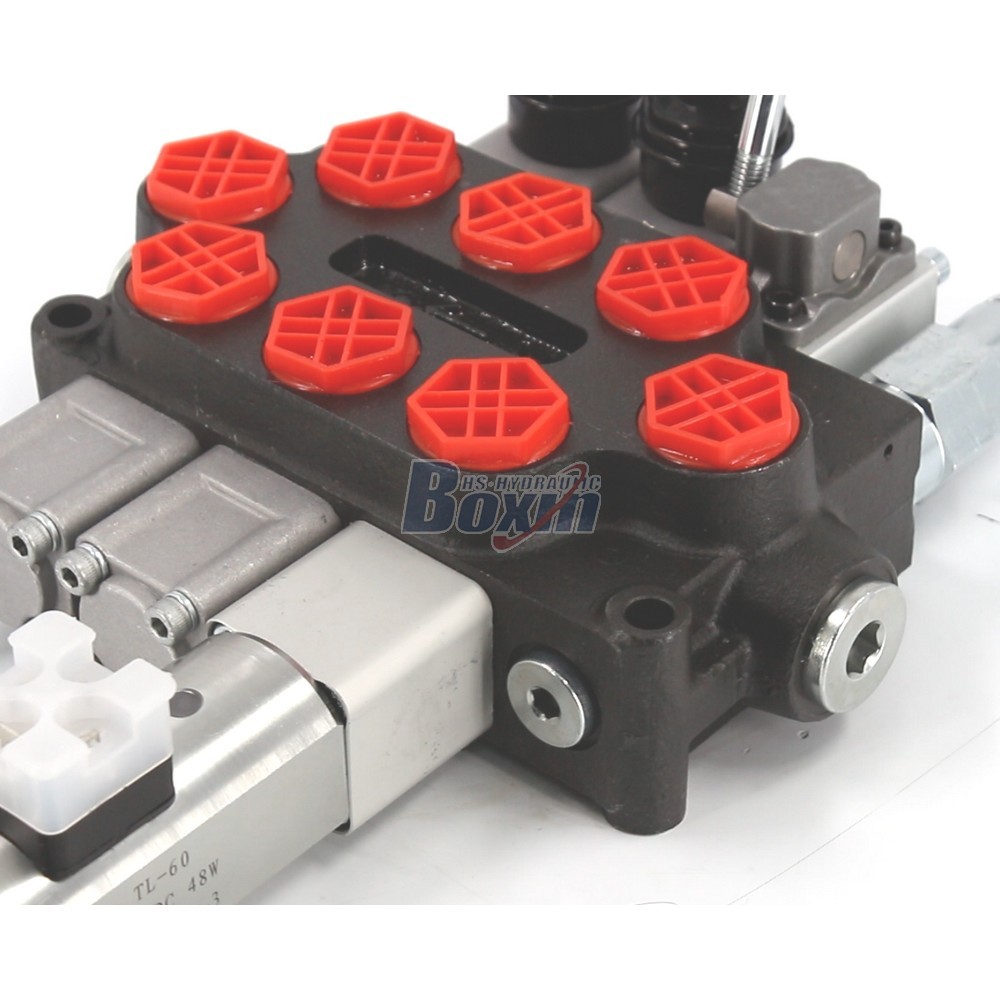

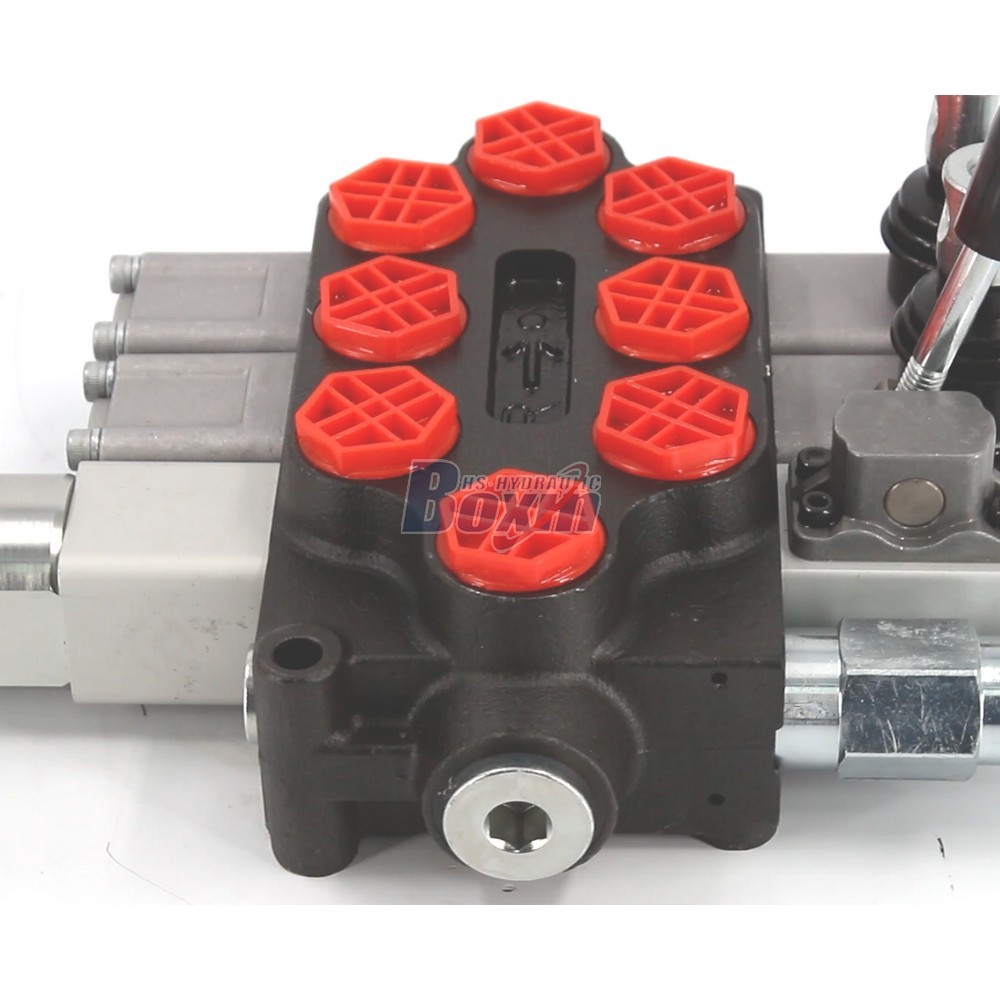

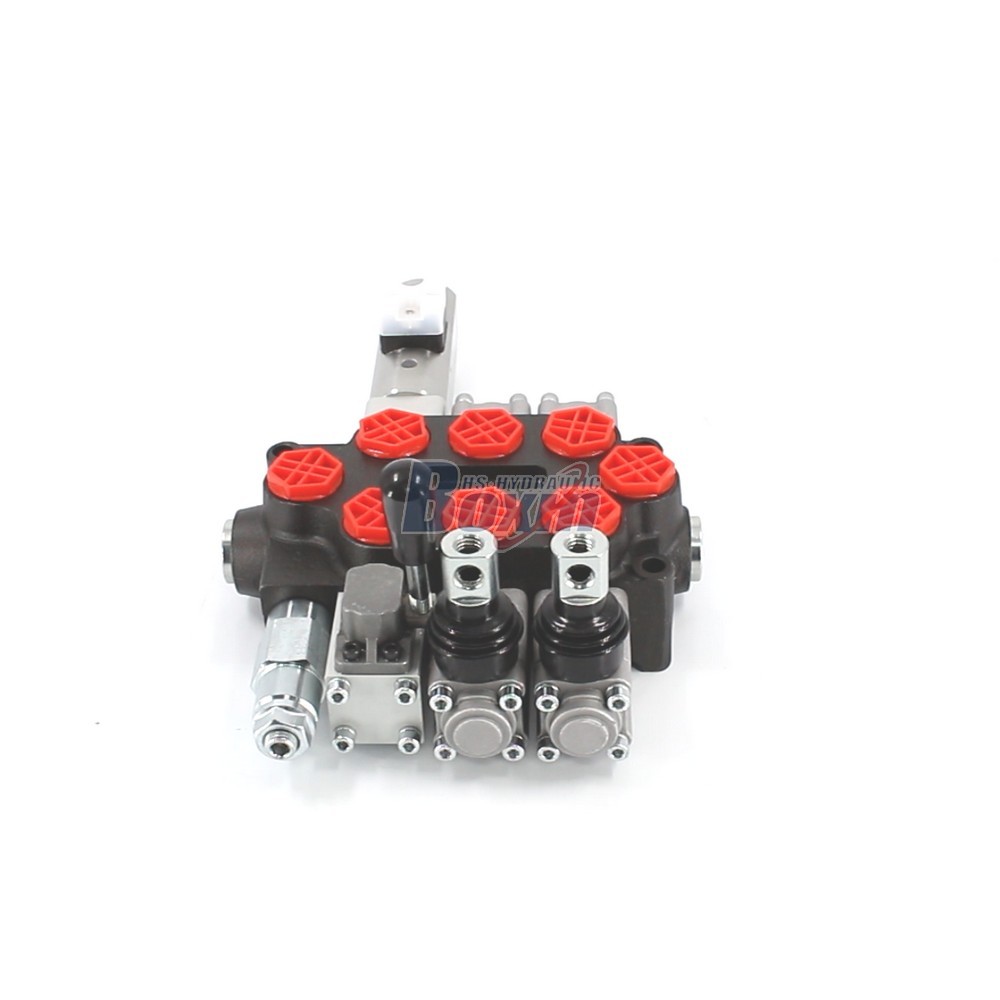

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

제어 방식:수동 및 푸시풀 전자석

스풀:3 스풀

정격 유량:분당 45리터 (11.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:Q45 시리즈 모노블럭 방향 제어 밸브

포장 크기:22.0*36.5*19.0

총중량:9.00 kg

재고 상태: 재고 있음

97 이 제품을 찾아보시지 않겠습니까?

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve

Q45-DT-2OT Manual and Push-pull Electromagnet 3 Spool Monoblock Directional Valve drawing image

The Q45-DT-2OT is a versatile 3-spool monoblock directional control valve featuring both manual and push-pull electromagnet control. With a rated flow of 45 L/min and a maximum pressure of 315 bar, it is designed for precision and reliability in demanding mobile applications.

Q45 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 조이스틱, 솔레노이드 및 수동, 수동 및 푸시풀 전자석, 푸시풀 전자석
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -20°C ~ +80°C (-4°F ~ +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 45리터 (11.8 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2
출구 포트 G1/2
포트 크기 G1/2

As a leading manufacturer of high-performance hydraulic solutions, we offer the Q45-DT-2OT 3 Spool Monoblock Directional Valve for global markets. This valve integrates manual and push-pull electromagnet control methods, ensuring flexible operation for material handling, construction, and agricultural machinery. It handles a rated flow of 45 L/min (11.8 US gpm) and pressures up to 315 bar (4600 psi), featuring standard G1/2 ports. We provide comprehensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. Our factory provides direct wholesale pricing and high-volume supply capabilities. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Whether you need reliable components for tractors, mini-excavators, or forklifts, our Q45 series offers robust quality and versatile functionality for industrial vehicle manufacturers and aftermarket suppliers.
