Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

제어 방식:수동 및 푸시풀 전자석

스풀:1 스풀

정격 유량:분당 45리터 (11.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:Q45 시리즈 모노블럭 방향 제어 밸브

포장 크기:28* 18*16

총중량:8.00 kg

재고 상태: 재고 있음

74 이 제품을 찾아보시지 않겠습니까?

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems

Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve for Hydraulic Systems drawing image

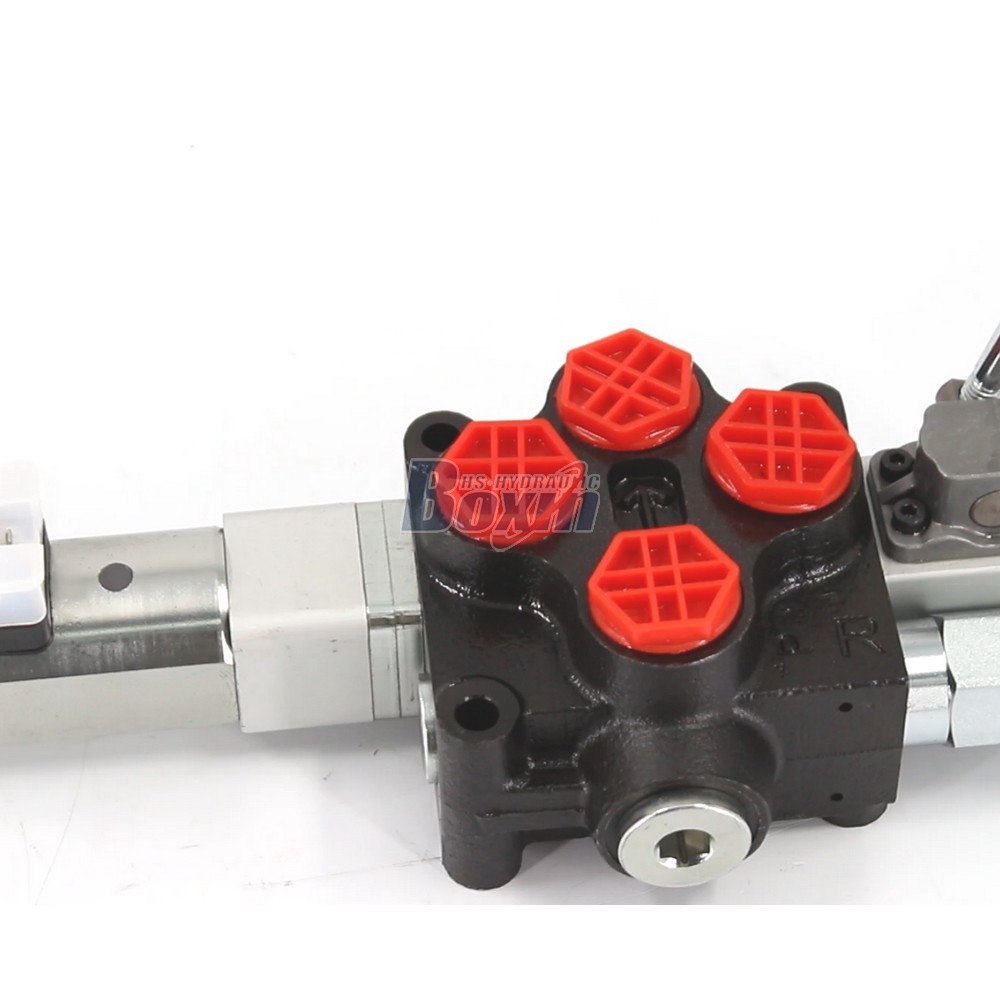

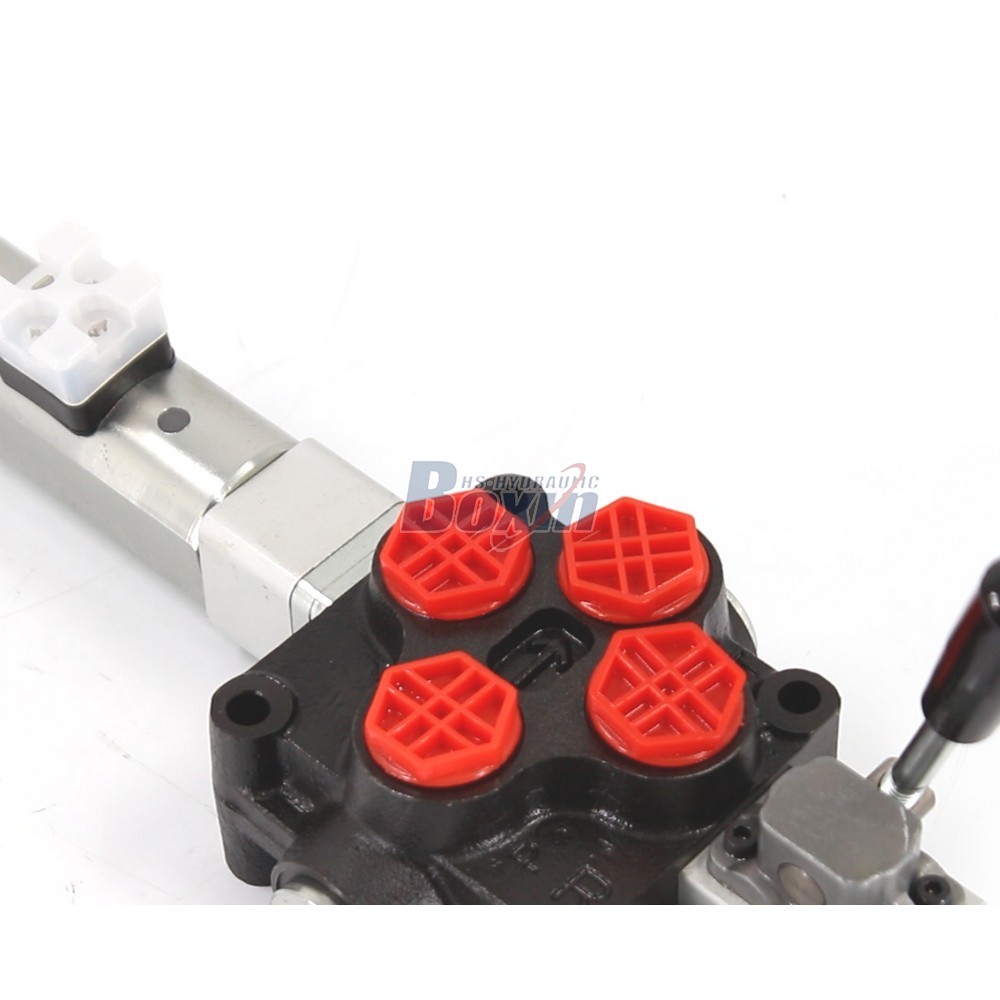

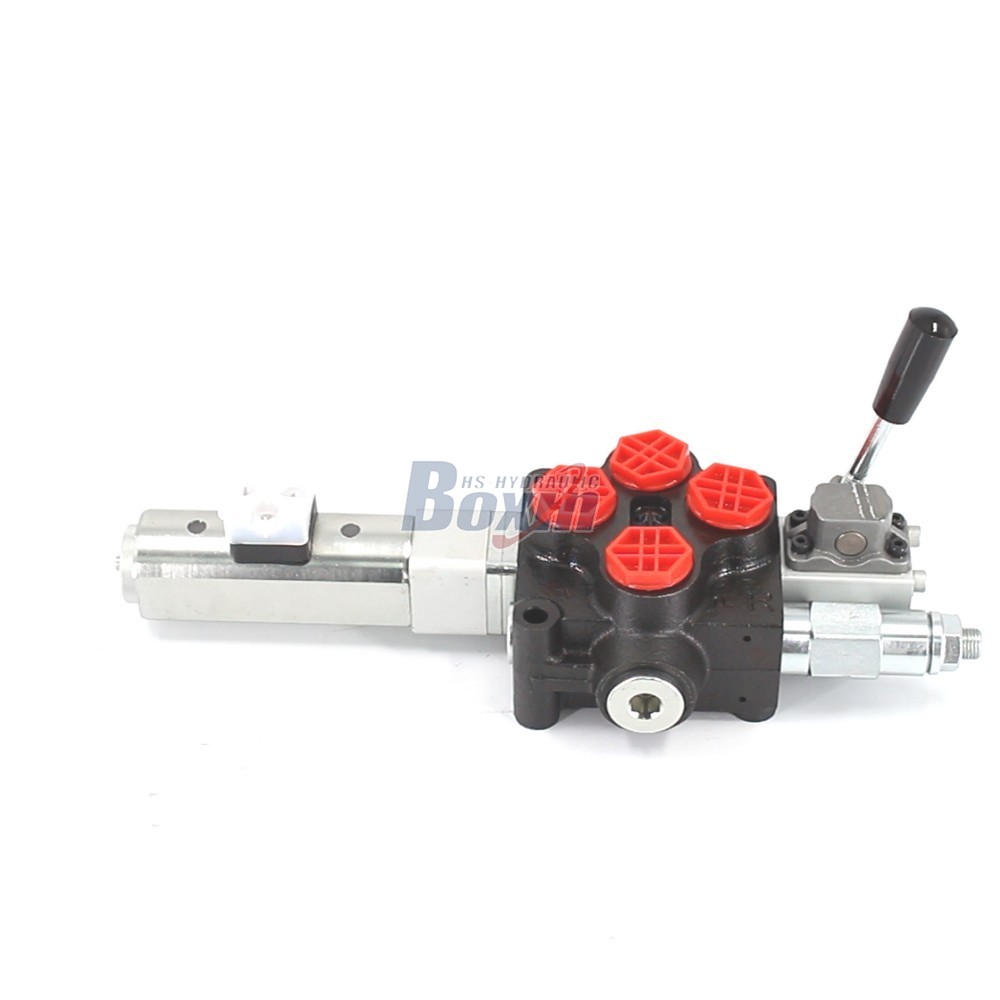

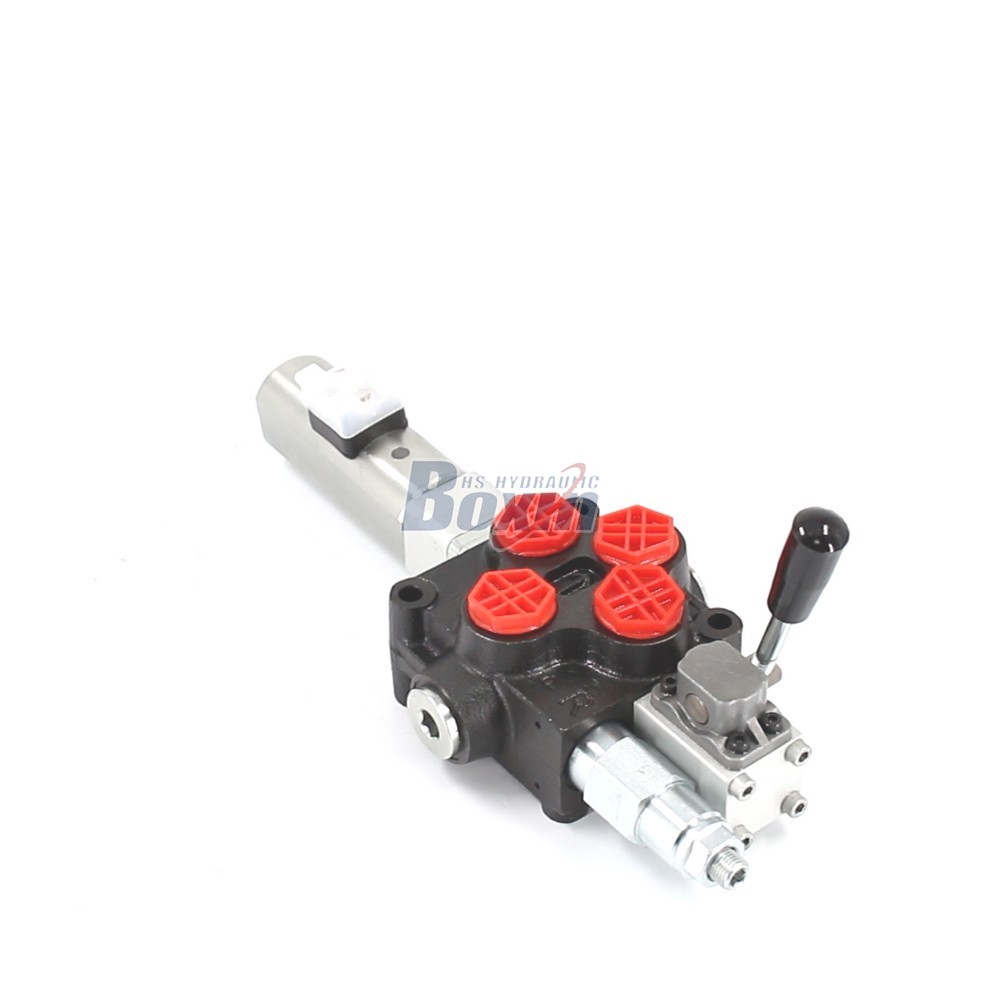

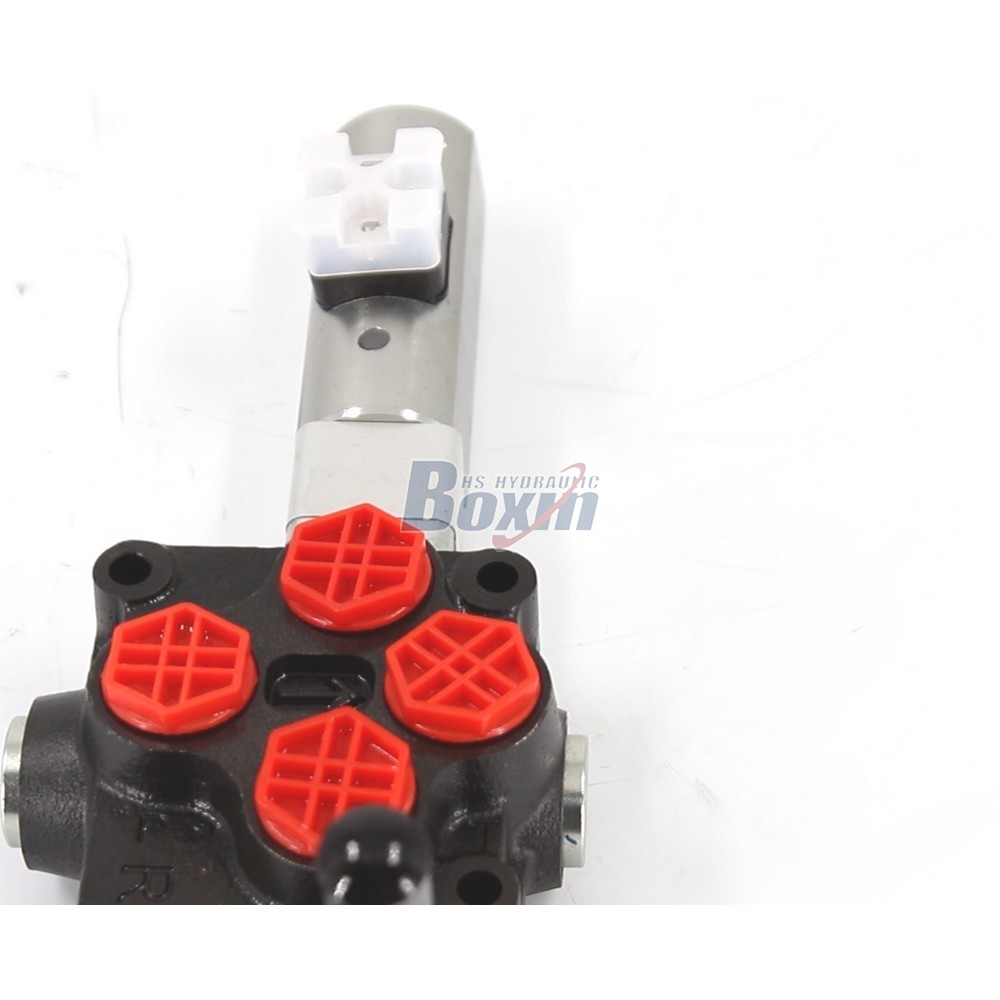

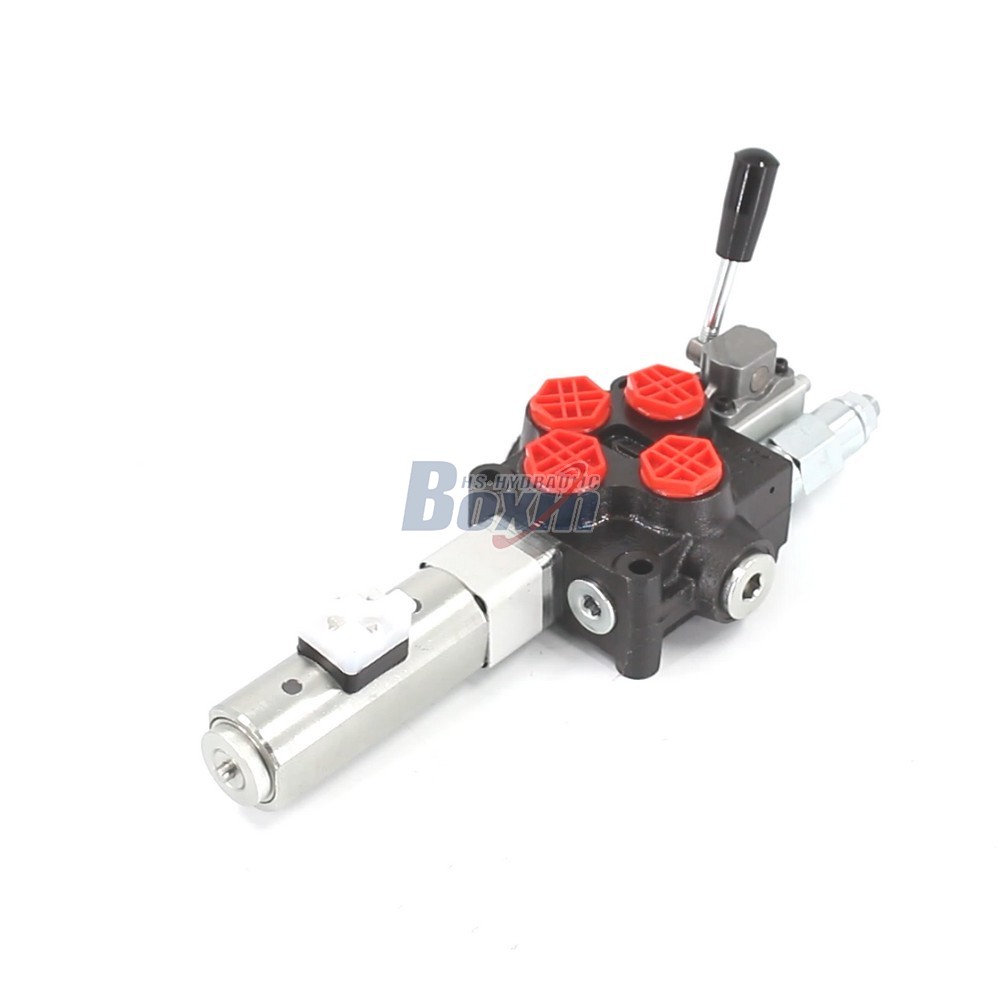

The Q45 Series is a versatile 1-spool monoblock directional control valve designed for hydraulic systems requiring dual solenoid and manual control. With a rated flow of 45 L/min and a maximum pressure rating of 315 bar, this high-performance valve is engineered for durability and precision across material handling, construction, and agricultural machinery.

Q45 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 조이스틱, 솔레노이드 및 수동, 수동 및 푸시풀 전자석, 푸시풀 전자석
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -20°C ~ +80°C (-4°F ~ +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 45리터 (11.8 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2
출구 포트 G1/2
포트 크기 G1/2

As a leading manufacturer of premium hydraulic components, we proudly present the Q45 Series Solenoid and Manual 1 Spool Monoblock Directional Valve. This robust valve offers exceptional control for various applications including forklifts, tractors, mini-excavators, and aerial platforms. Featuring G1/2 inlet and outlet ports, it supports a flow capacity of 45 L/min (11.8 US gpm) and operates effectively up to 315 bar (4600 psi). We provide comprehensive manufacturing services, including professional OEM and ODM solutions, private labeling (branding), and bespoke customization to meet specific technical requirements. Our factory is fully equipped for large-scale production, offering competitive wholesale pricing and reliable supply chains. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our market reach. Whether you need a trusted factory supplier for bulk orders or a partner for specialized hydraulic valve development, our team provides the technical expertise and manufacturing excellence required for long-term success in the hydraulic industry.
