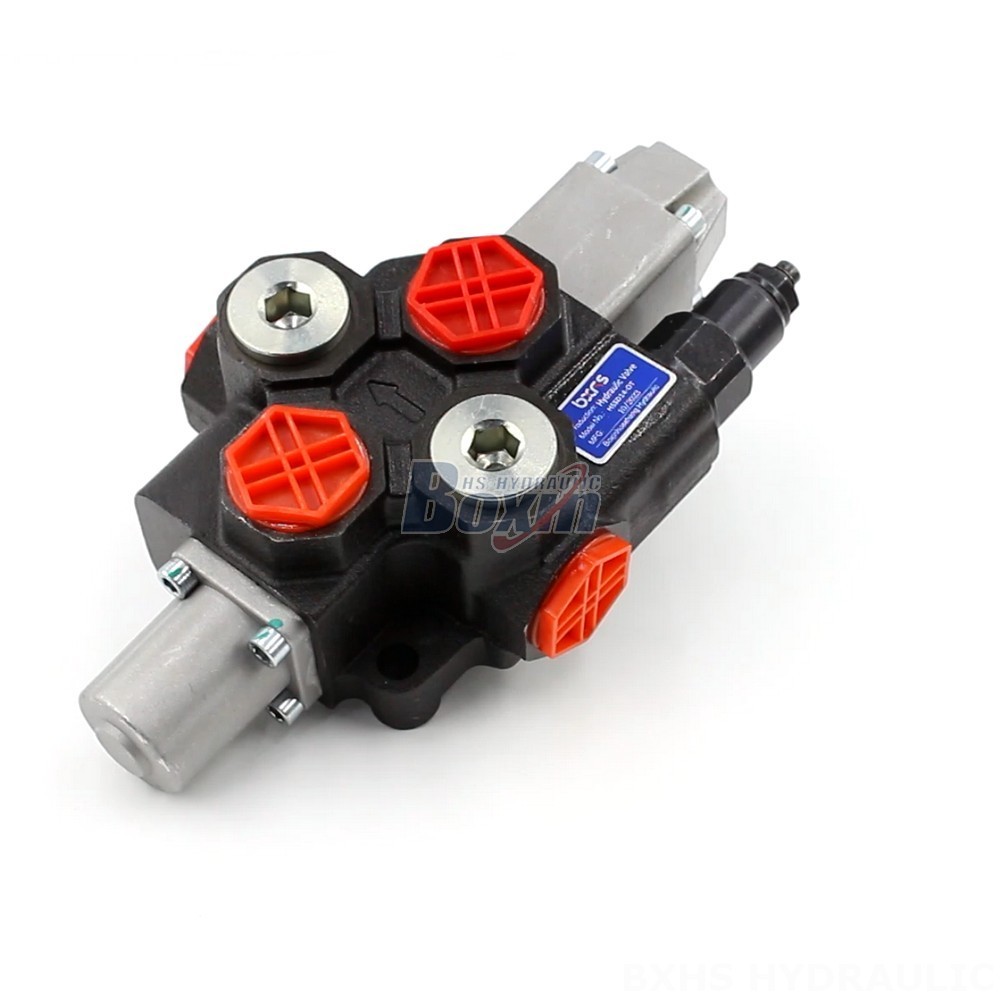

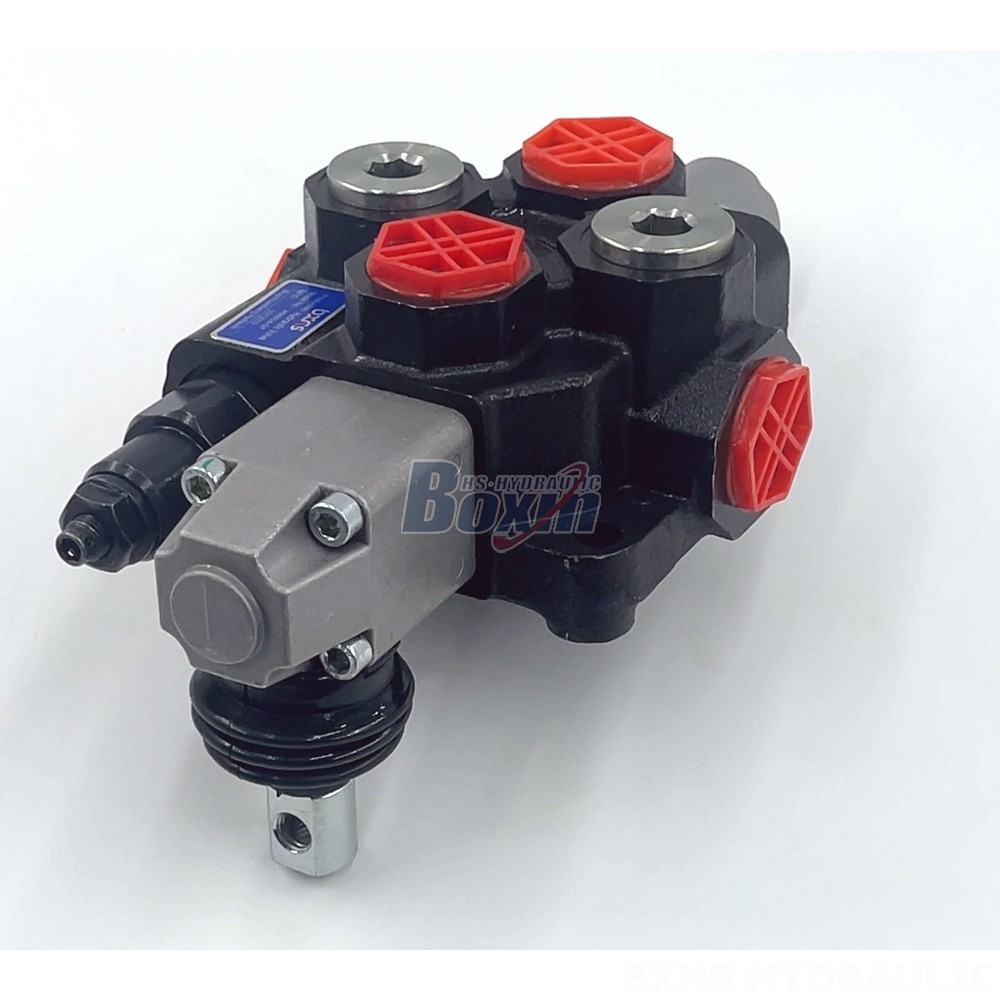

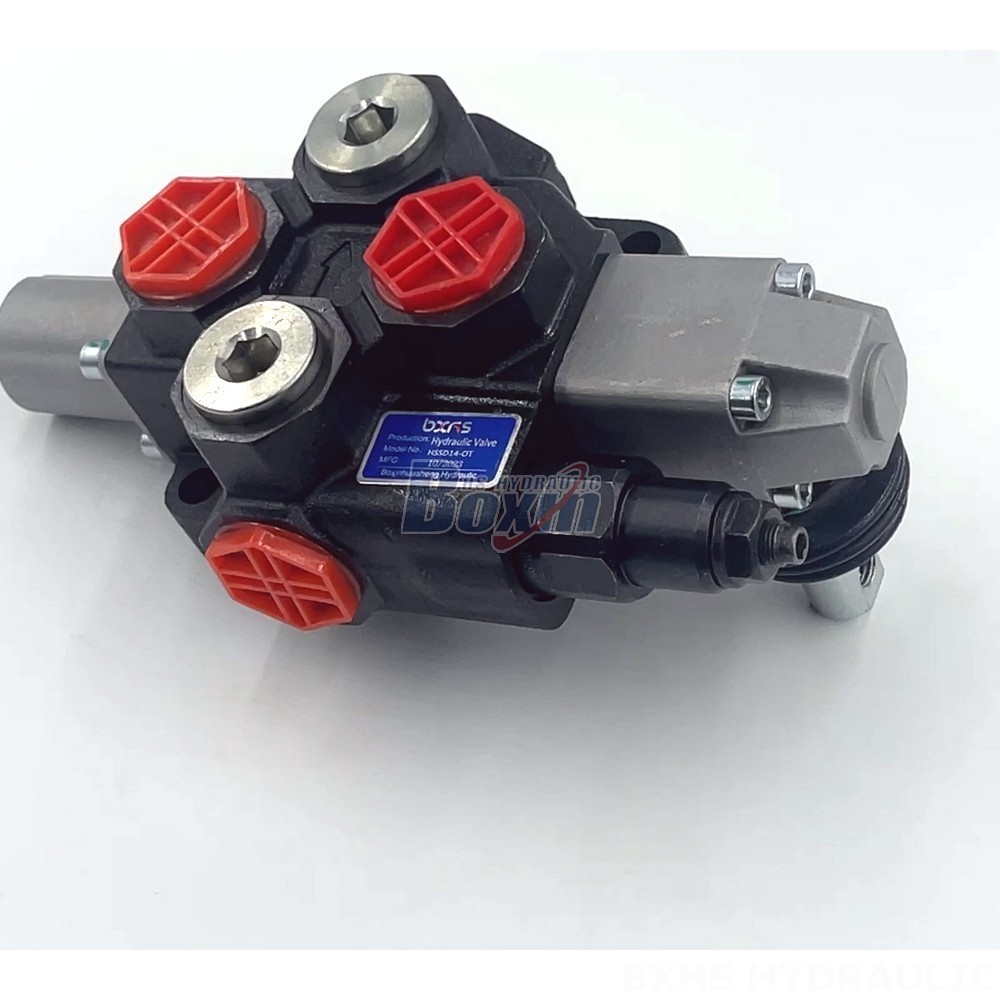

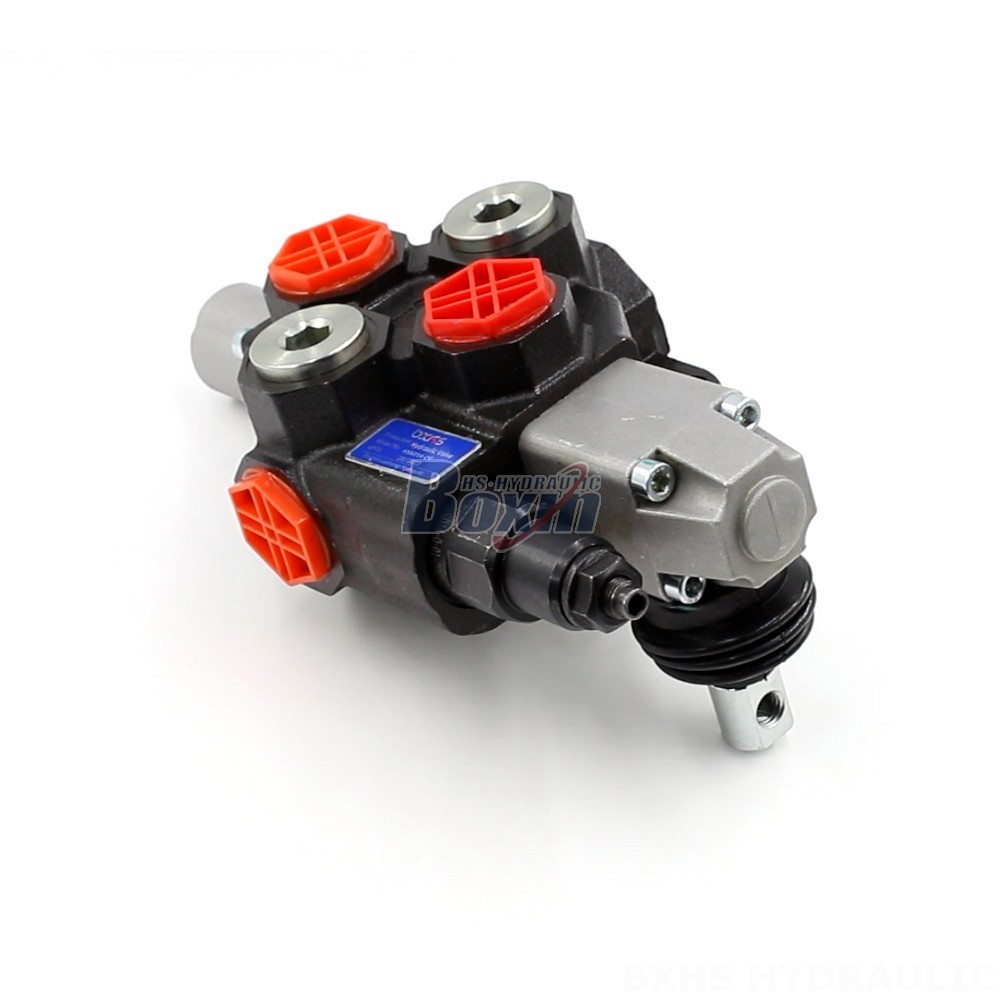

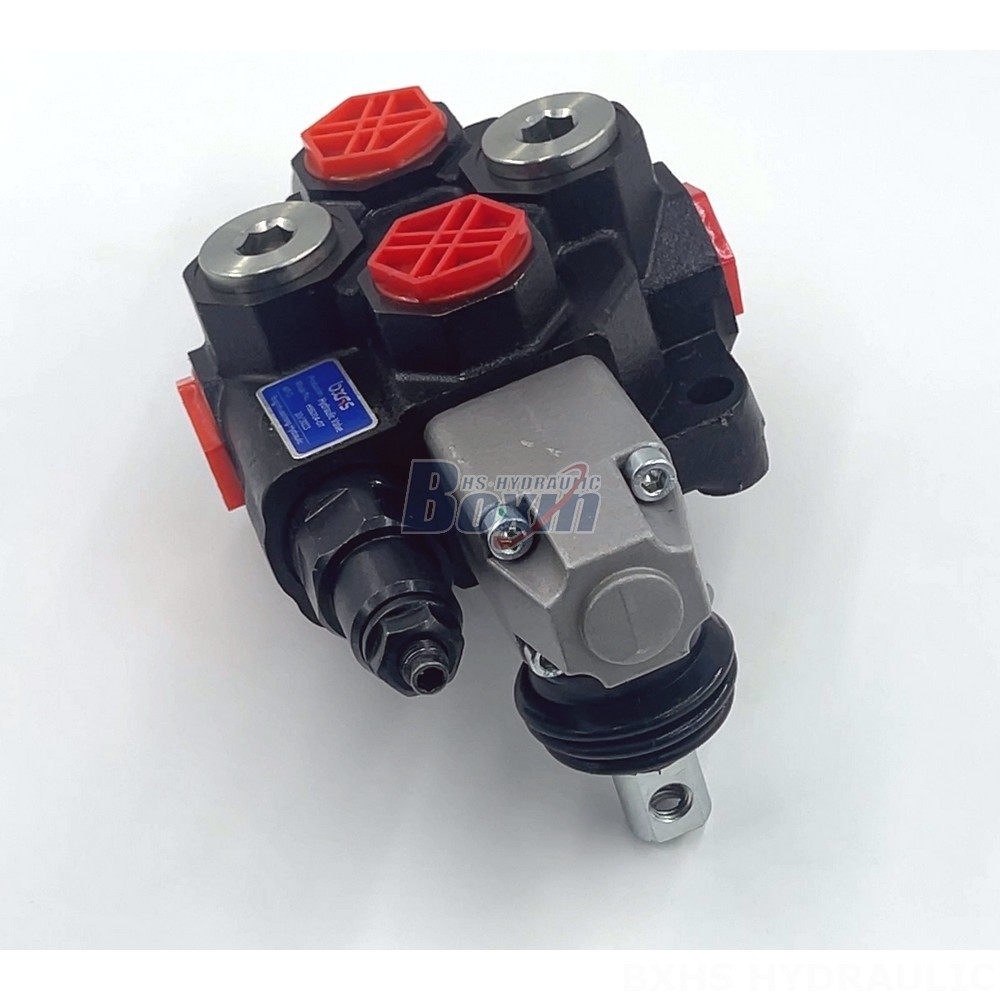

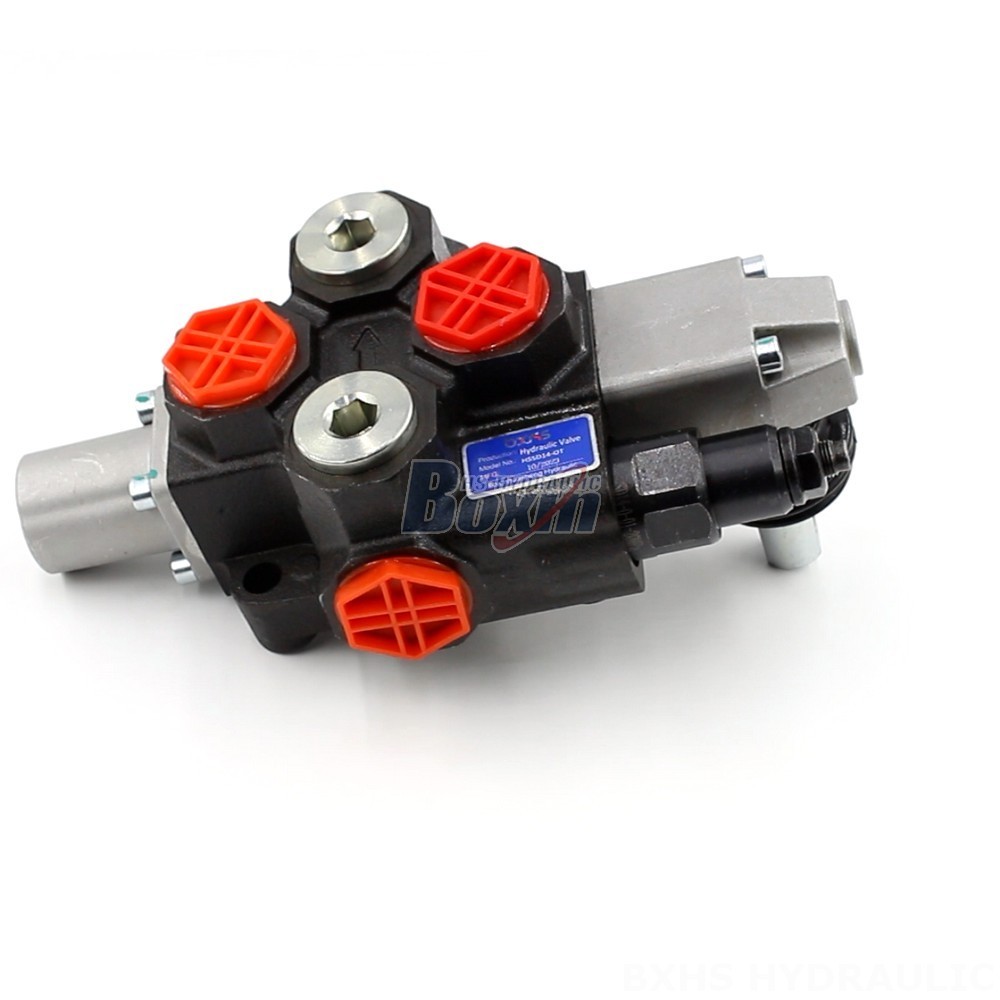

The SD14 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for various industrial applications. With its manual control mechanism, 1 spool design, and robust monoblock construction, this valve offers precise flow control and reliable operation. Its rated flow capacity of 120 L/min and maximum pressure of 315 bar make it suitable for demanding hydraulic systems.
| SD14 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 유압 |
| 스풀 | 1 스풀 |
| 주변 온도 범위 | -40°C to +60°C (-40°F to +140°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 120 L/분 (31.7 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G3/4 |
| 출구 포트 | G3/4 |
| 포트 크기 | G3/4 |
**Product Highlights:**
- Manual control for precise flow regulation
- Monoblock construction for enhanced durability and reduced leakage
- 1 spool design for efficient flow management
- Rated flow of 120 L/min (31.7 US gpm) for high flow capacity
- Maximum pressure of 315 bar (4600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for wide compatibility
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for reliable performance in various environments
**Applications:**
The SD14 Manual 1 Spool Monoblock Directional Valve finds applications in various industries, including:
- Material handling: Telehandlers, forklifts, stackers
- Construction and earth moving: All-terrain cranes, motor graders, excavators
- Agriculture: Tractors, harvesters
- Industrial vehicles: Aerial platforms, skid steer loaders, compact wheel loaders
