What is the primary application of the SD5 Hydraulic Valve | Key Features and Applications?

The SD5 Hydraulic Valve | Key Features and Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

SD5 Hydraulic Valve | Key Features and Applications

Name: SD5 Hydraulic Valve | Key Features and Applications
Brand: Boxinhuasheng
SKU: BXHS-51304
Availability: InStock

홈모노블럭 방향 제어 밸브SD5 시리즈제품 상세

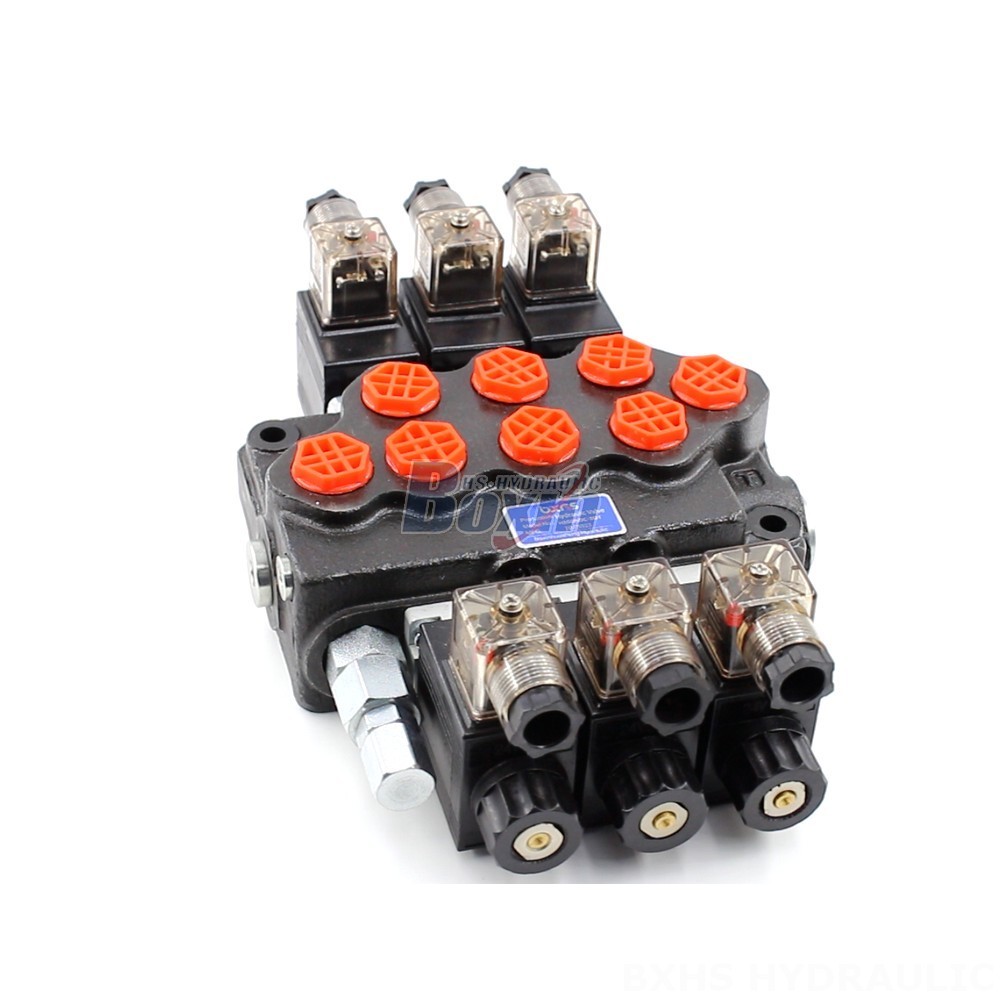

SD5 Hydraulic Valve | Key Features and Applications cover photo

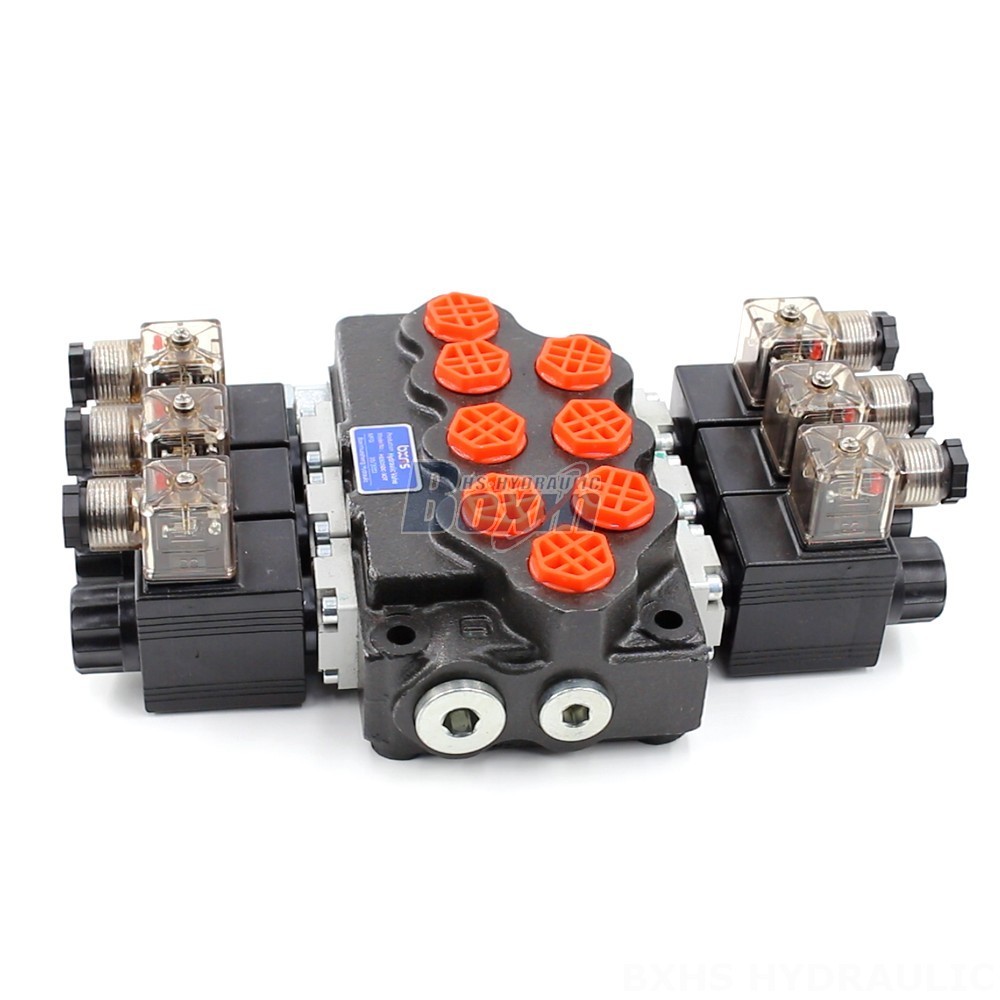

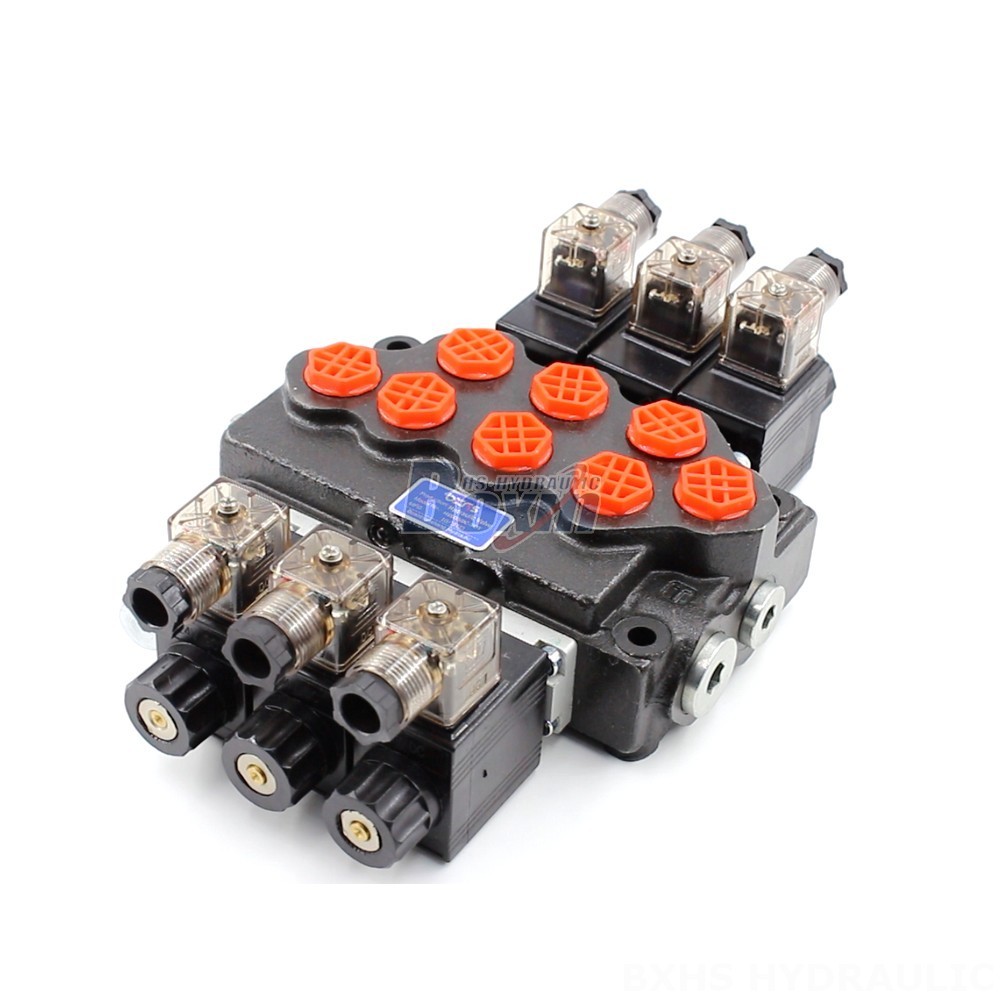

SD5 Hydraulic Valve | Key Features and Applications main image

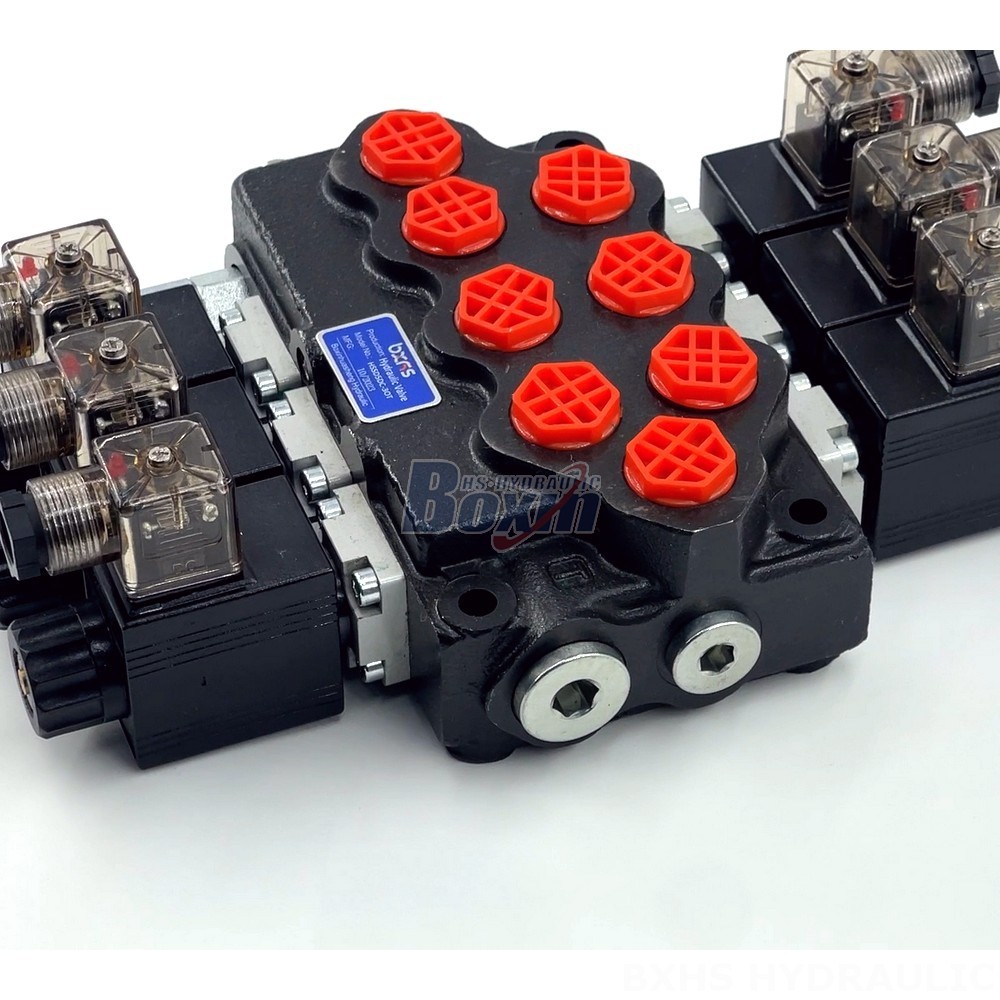

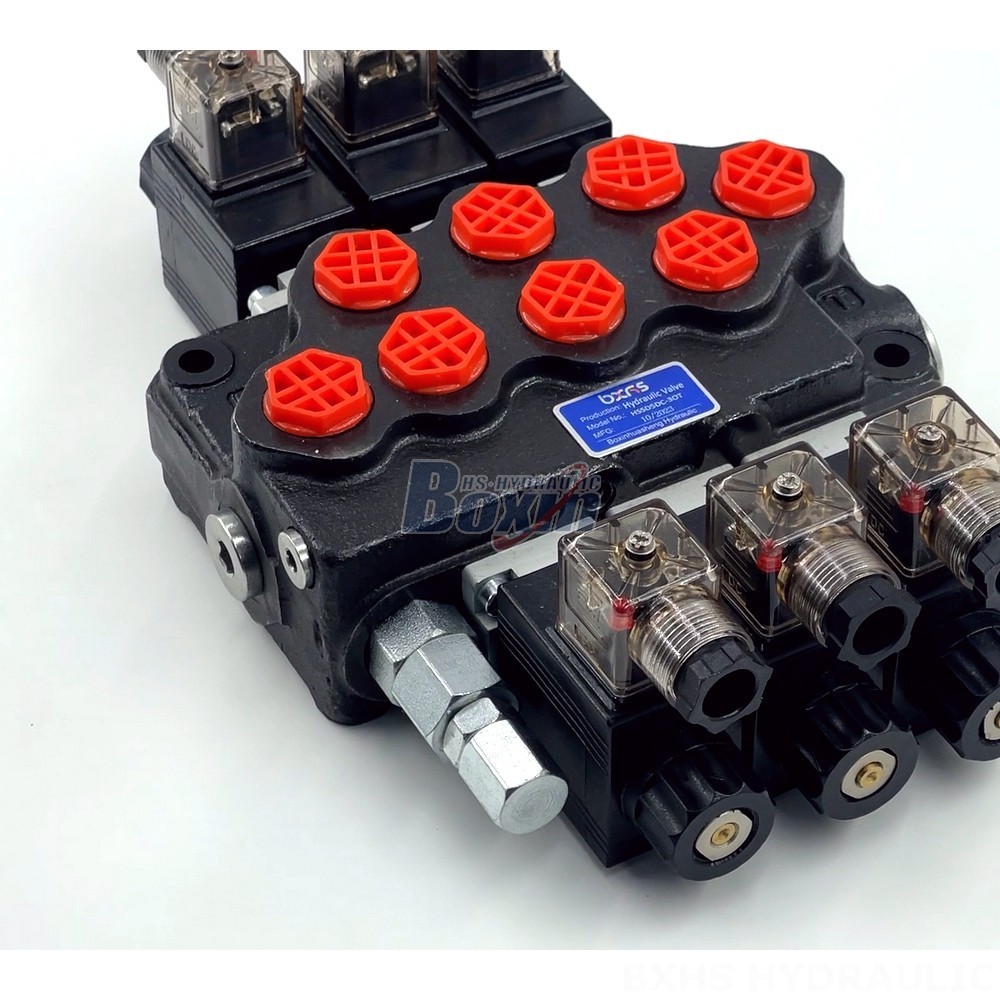

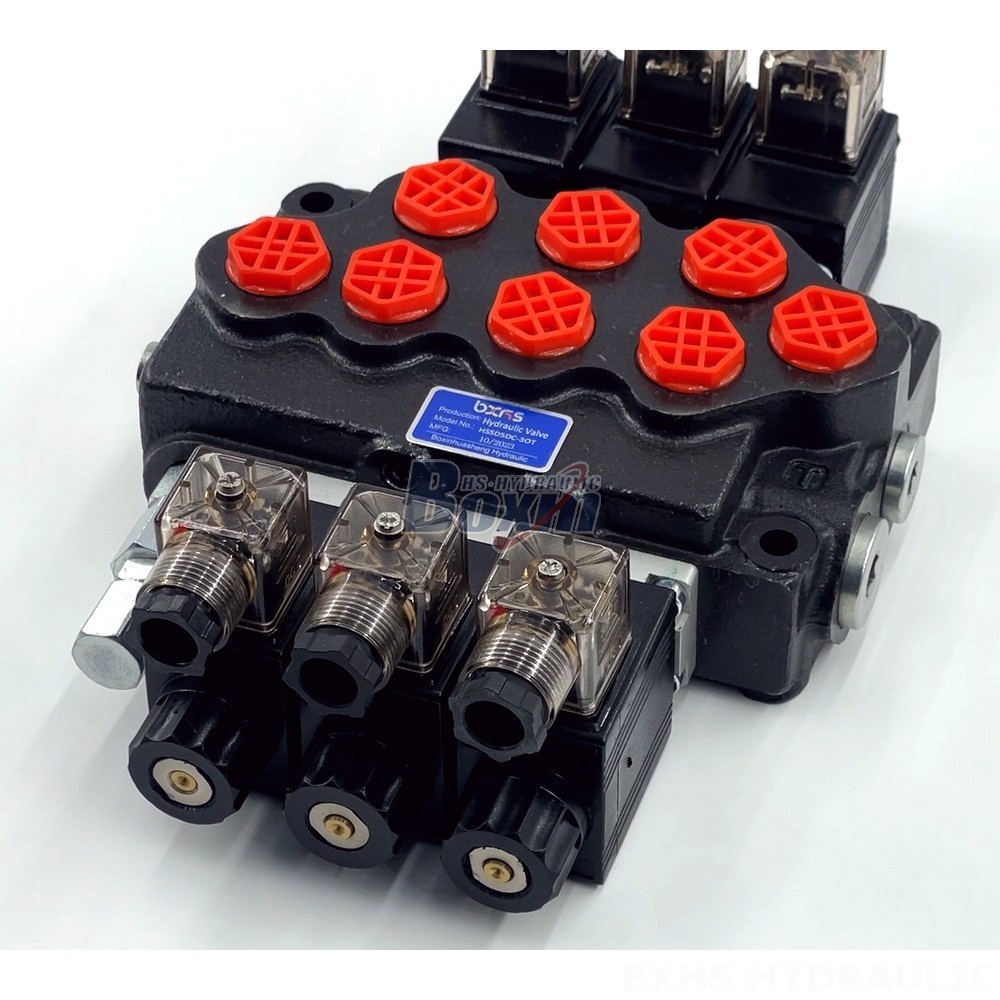

SD5 Hydraulic Valve | Key Features and Applications detail image

SD5 Hydraulic Valve | Key Features and Applications

제어 방식:솔레노이드

스풀:3 스풀

정격 유량:분당 45리터 (11.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G3/8

출구 포트:G3/8

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:SD5 시리즈 모노블럭 방향 제어 밸브

포장 크기:30*21*13

총중량:9.00 kg

재고 상태: 재고 있음

문의하기

1217 이 제품을 찾아보시지 않겠습니까?

SD5 Hydraulic Valve | Key Features and Applications

SD5 Hydraulic Valve | Key Features and Applications drawing image

The SD5 Hydraulic Valve is a high-performance solenoid-controlled monoblock valve designed for use in agricultural machinery, construction equipment, and industrial vehicles. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it's ideal for applications demanding reliable hydraulic control.

SD5 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +60°C (-40°F to +140°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	305바 (4400 psi)
입구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
출구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
포트 크기	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

This 3-section SD5 Series valve offers exceptional control with its solenoid operation and robust construction. Designed for demanding environments, it boasts an operating viscosity range of 15 - 75 mm²/s and a wide ambient temperature range from -40°C to +60°C. With its 3 spools and 40 L/min rated flow, it's perfect for controlling hydraulic systems in a variety of agricultural machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, and more. Its monoblock design ensures durability and reliable performance, making it a valuable asset for any hydraulic system.
