The SD8 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications. It features a compact and lightweight design, making it ideal for use in space-constrained applications. The valve is also highly efficient and reliable, making it a cost-effective solution for demanding applications.
| SD8 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 90리터 (23.8 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G1/2, G3/4, SAE 10 |
| 출구 포트 | G1/2, G3/4, SAE 10, 3/4 NPT |
| 포트 크기 | G1/2, SAE 10 |

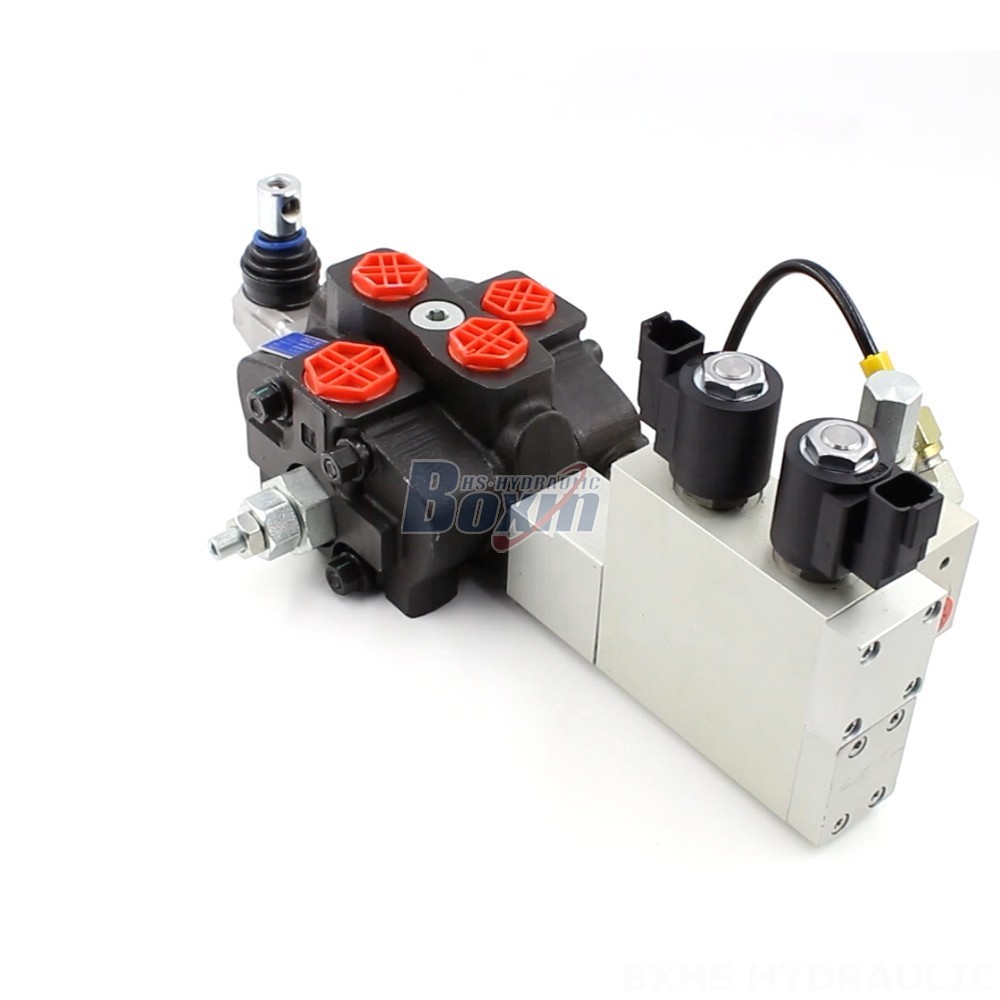

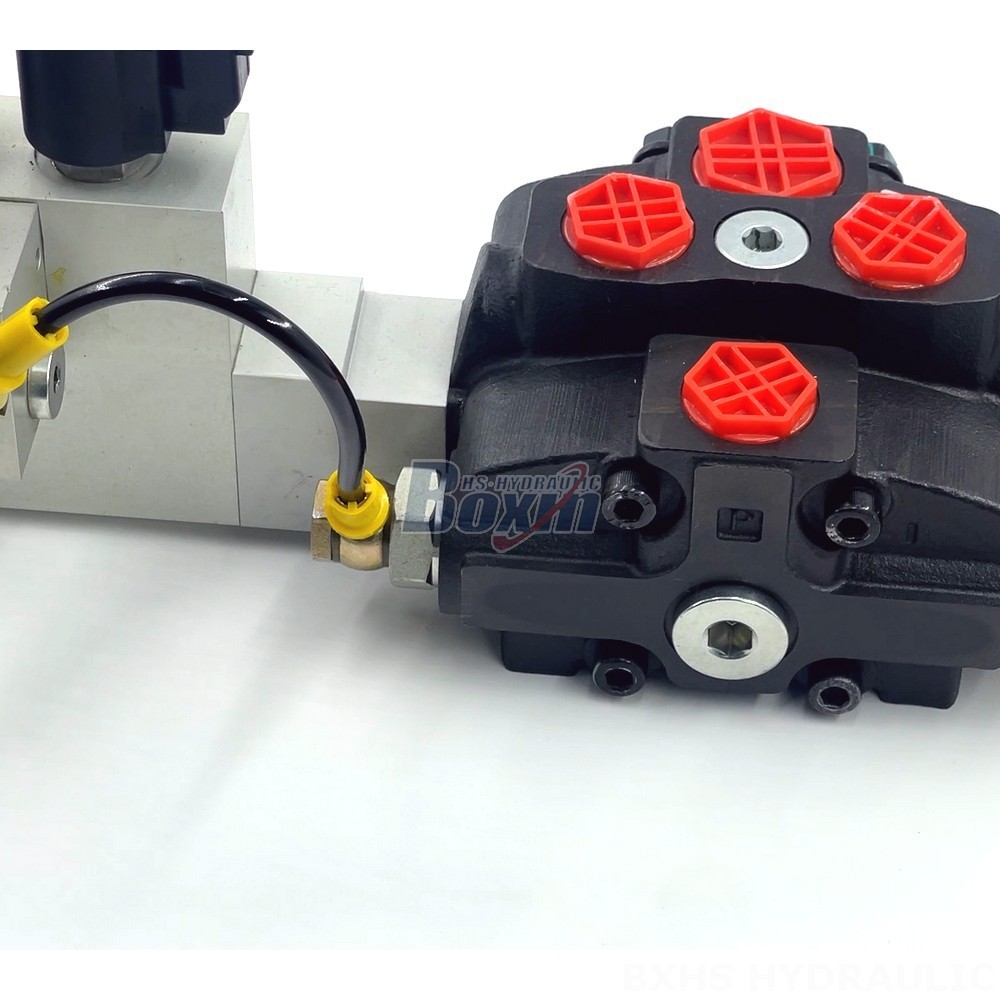

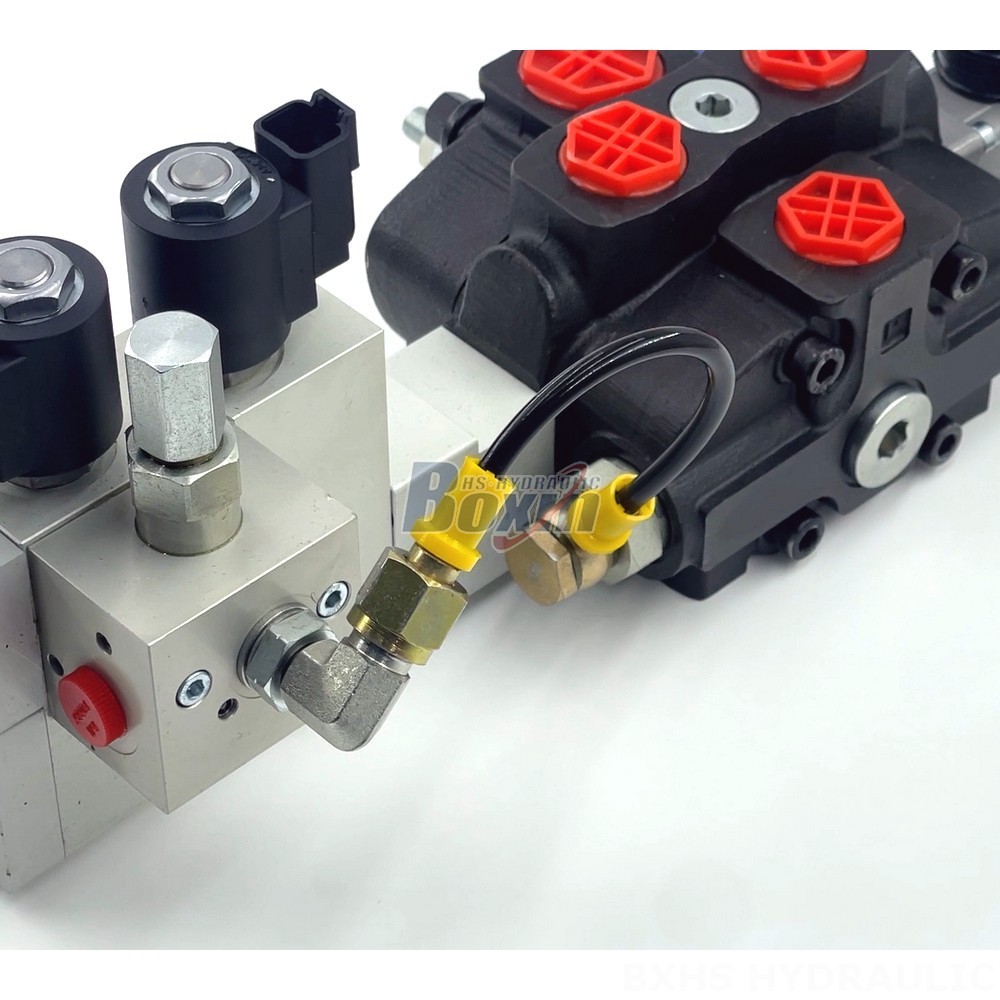

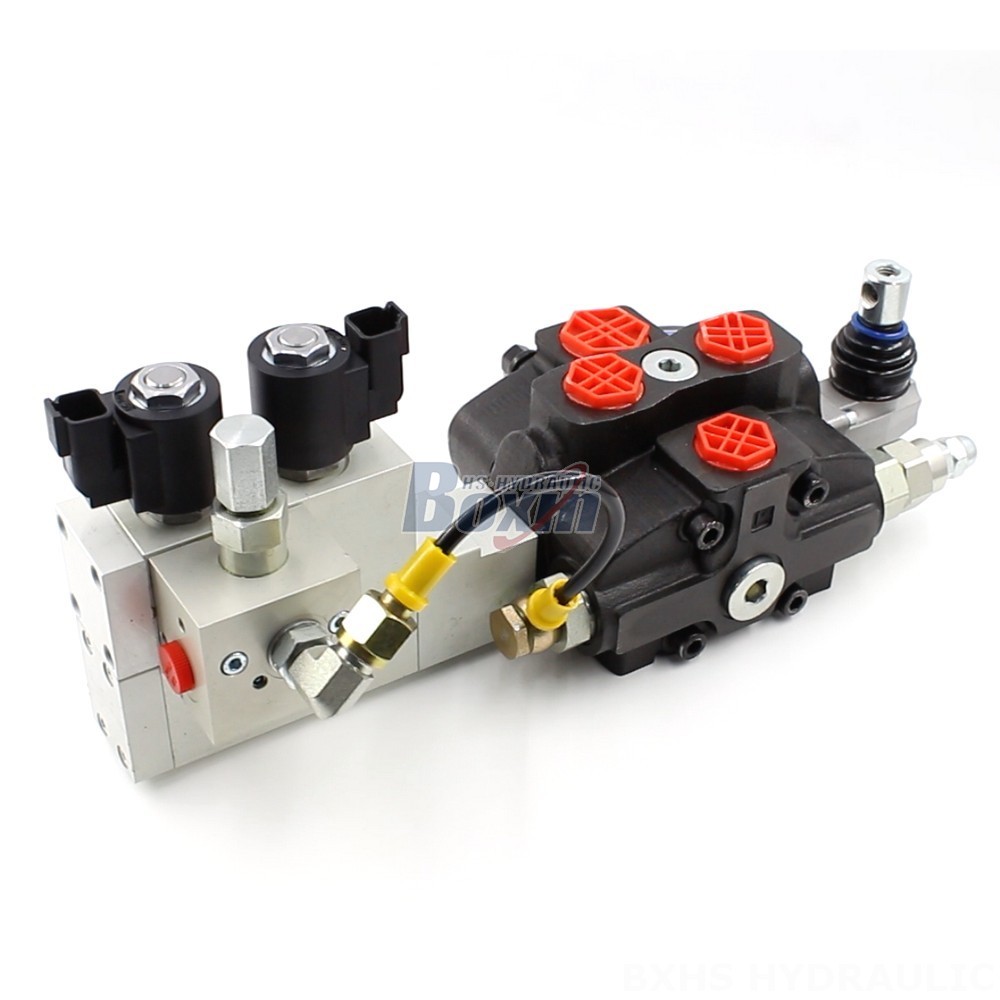

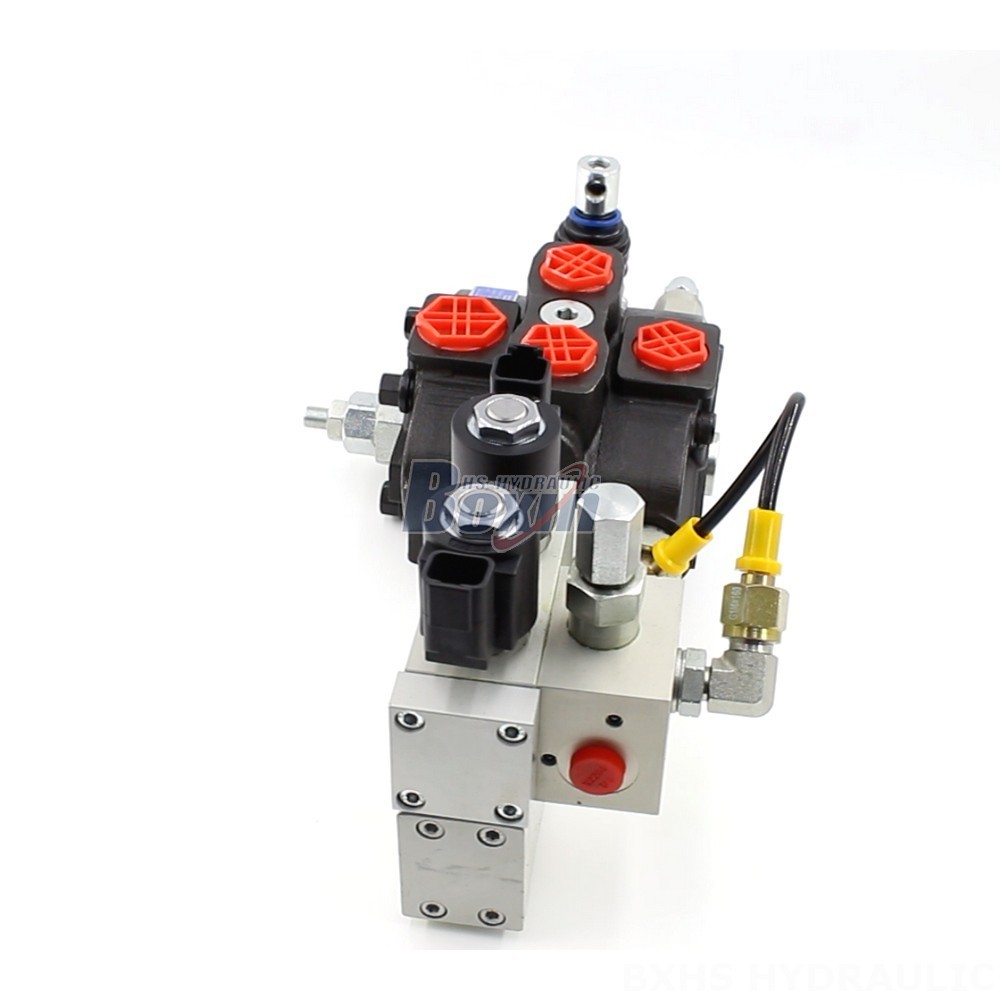

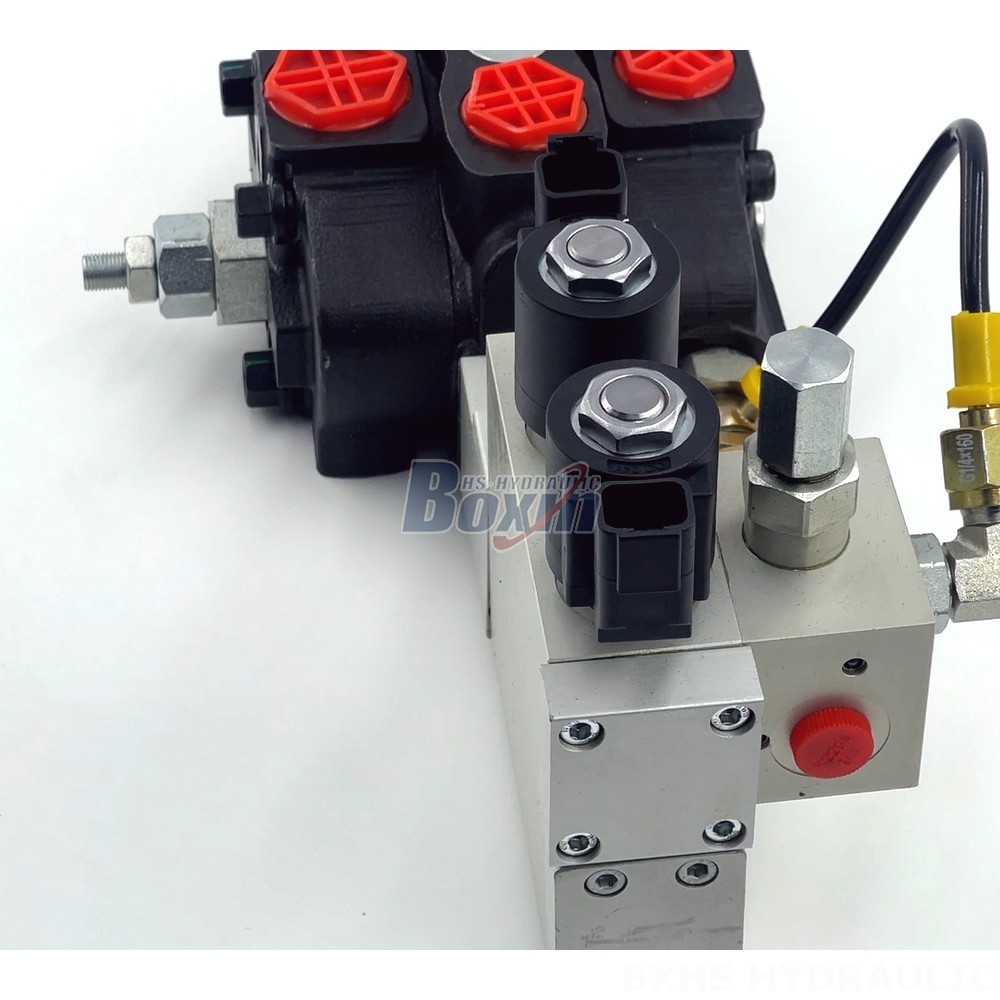

**SD8 Electro-hydraulic Directional Control Valve**
The SD8 Electro-hydraulic Directional Control Valve is a 1-section, electro-hydraulically controlled valve with a rated flow of 90 L/min and a maximum pressure of 350 bar. It is a sectional valve, which means that it can be easily customized to meet the specific requirements of an application. The valve is available with a variety of spool options, including single-acting, double-acting, and float. It is also available with a variety of porting options, including NPT, SAE, and BSPP.
The SD8 Electro-hydraulic Directional Control Valve is a versatile and reliable valve that is suitable for use in a wide range of applications, including:
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Key Features**
* Compact and lightweight design
* High efficiency and reliability
* Easy to customize to meet the specific requirements of an application
* Available with a variety of spool and porting options
