What is the primary application of the SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable?

The SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable

Name: SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-56674
Availability: InStock

홈구역 방향 밸브SD8 시리즈제품 상세

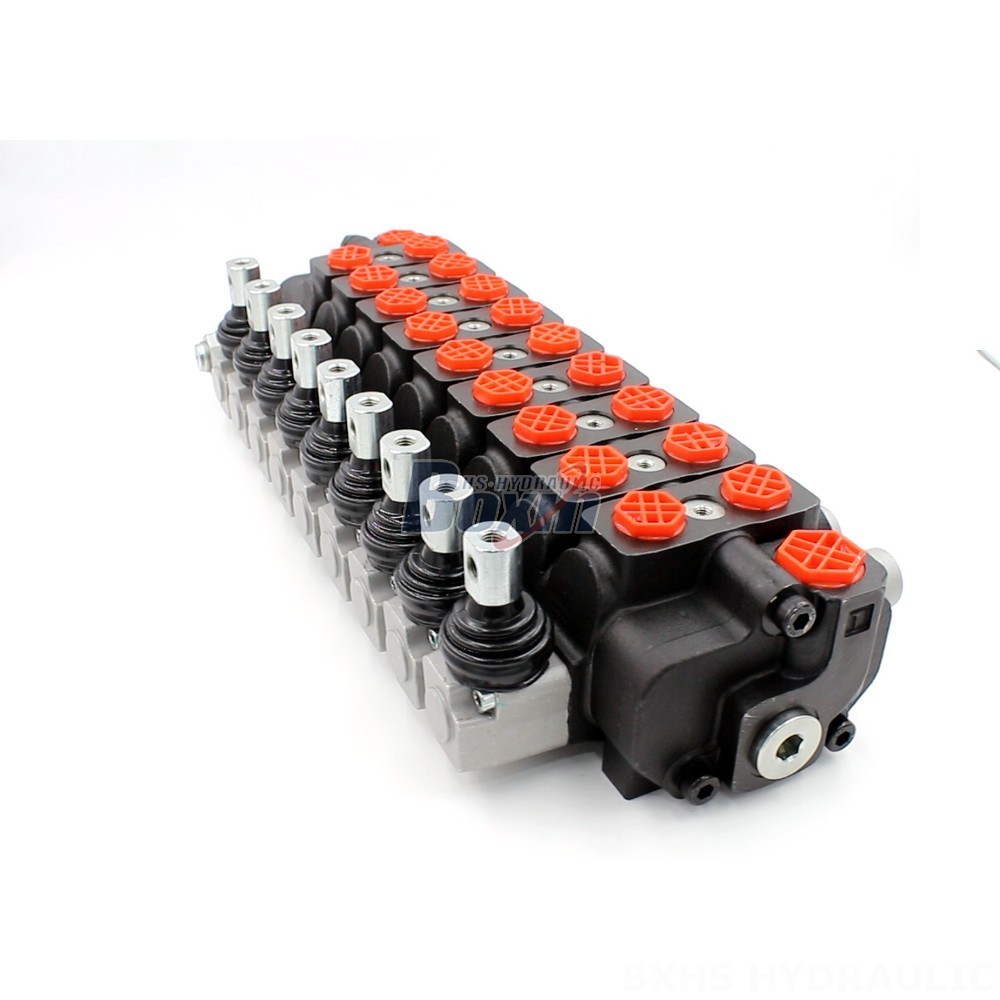

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable cover photo

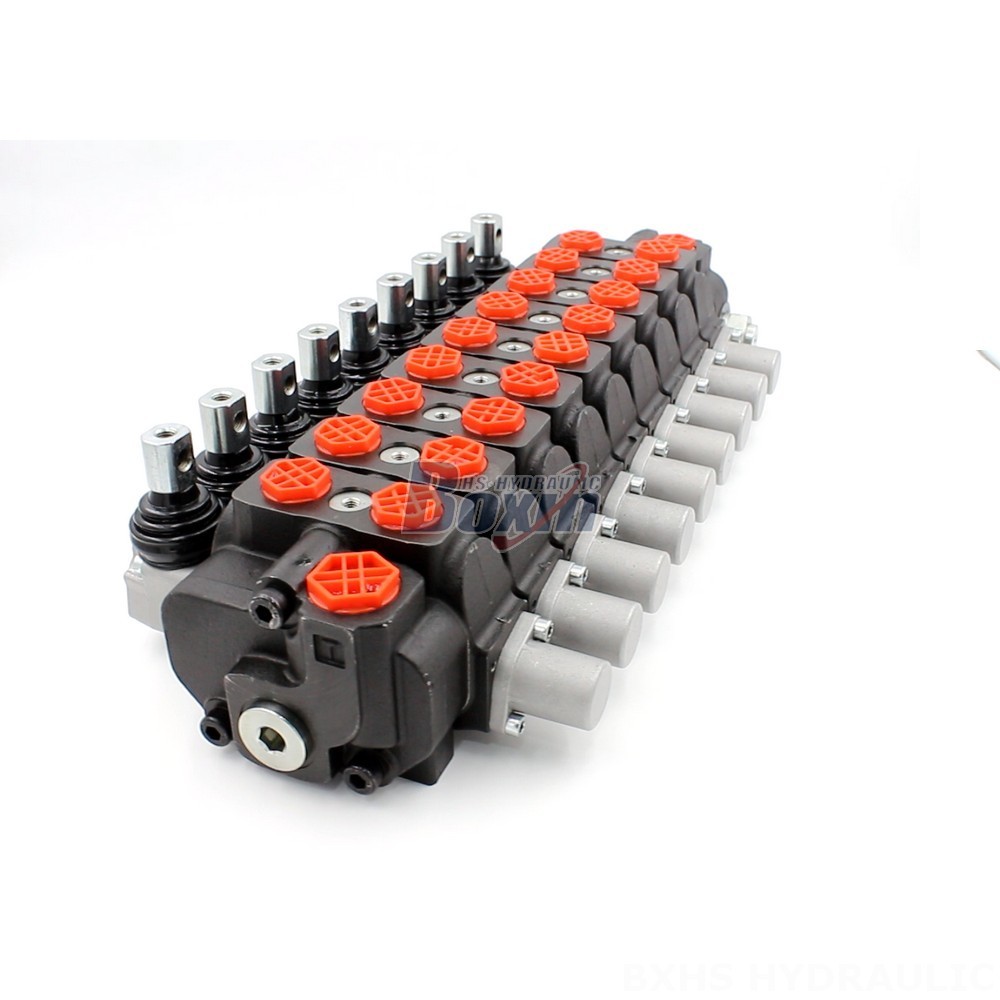

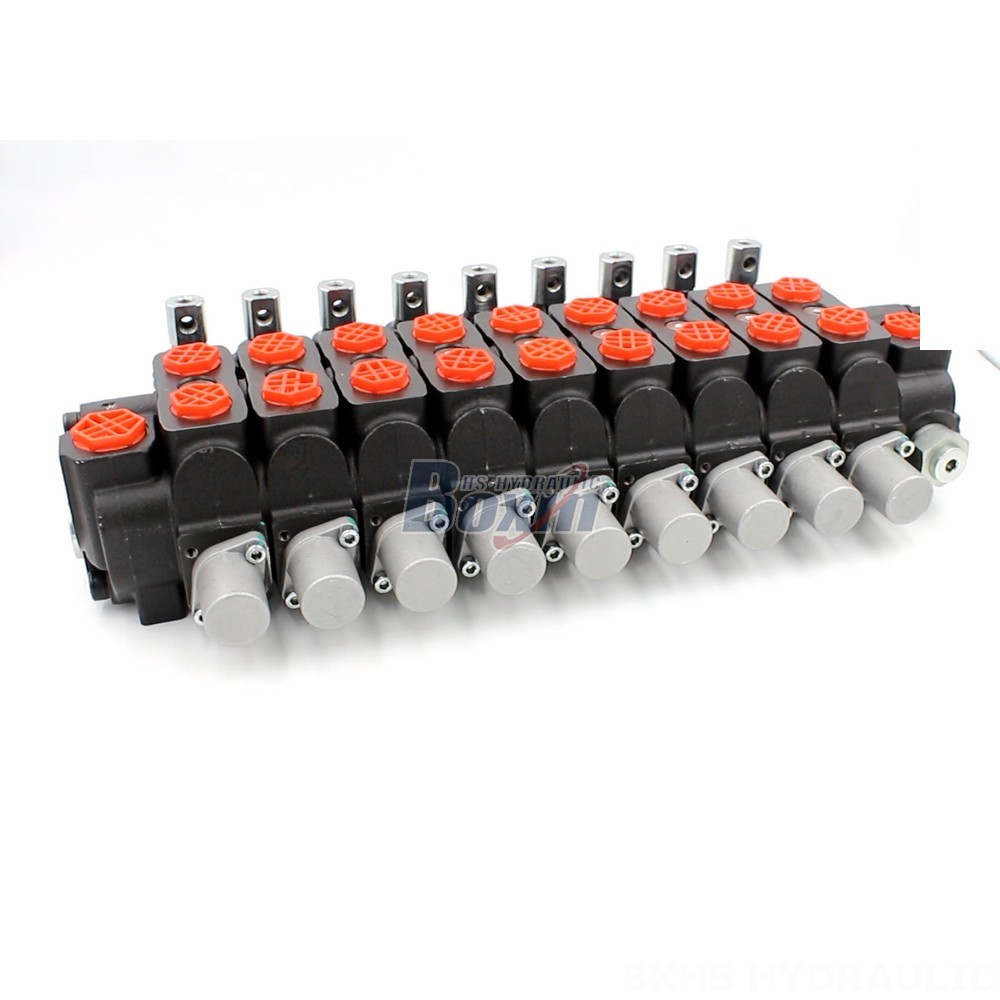

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable main image

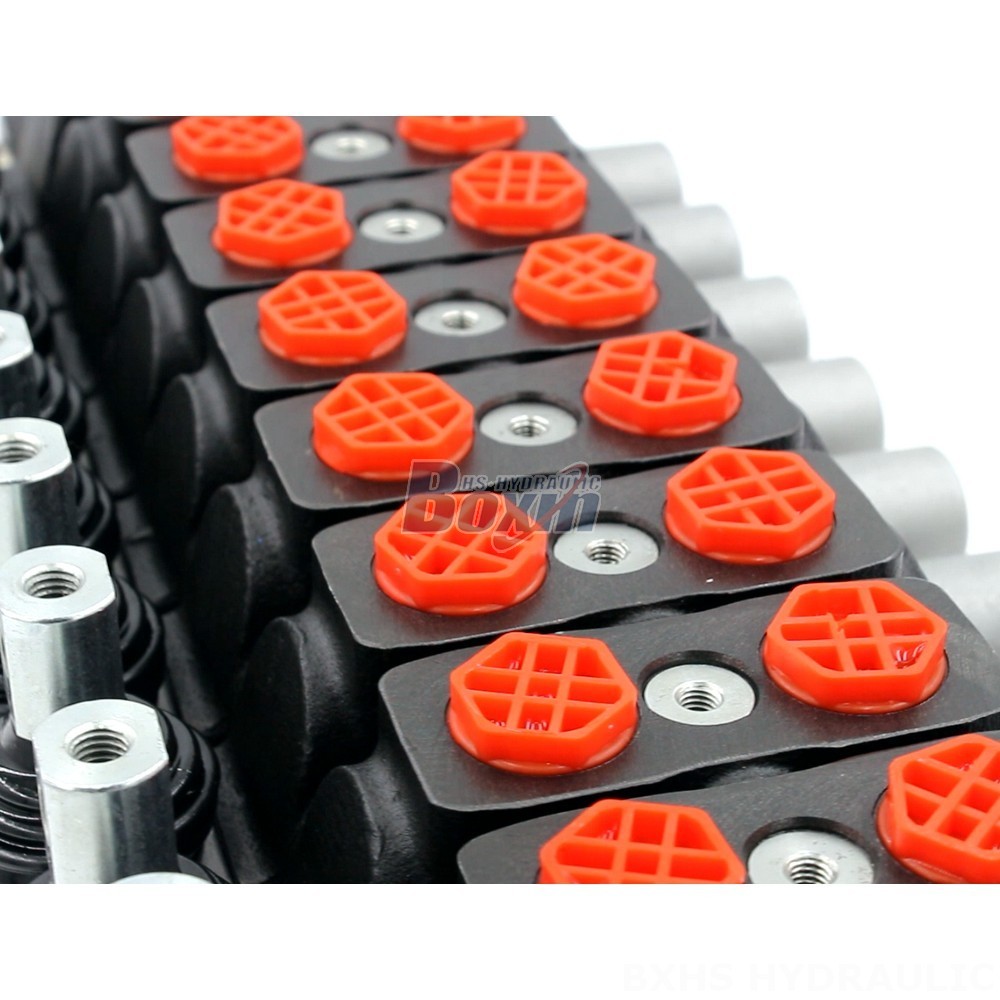

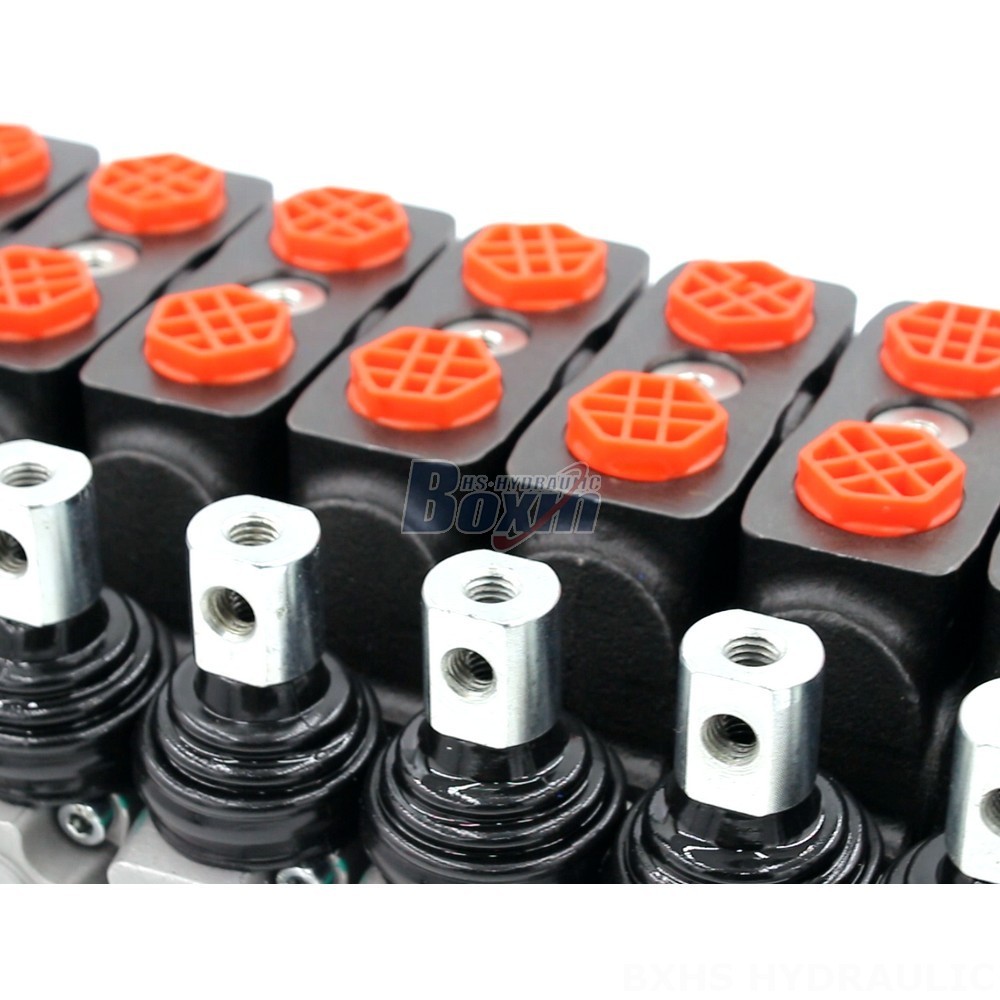

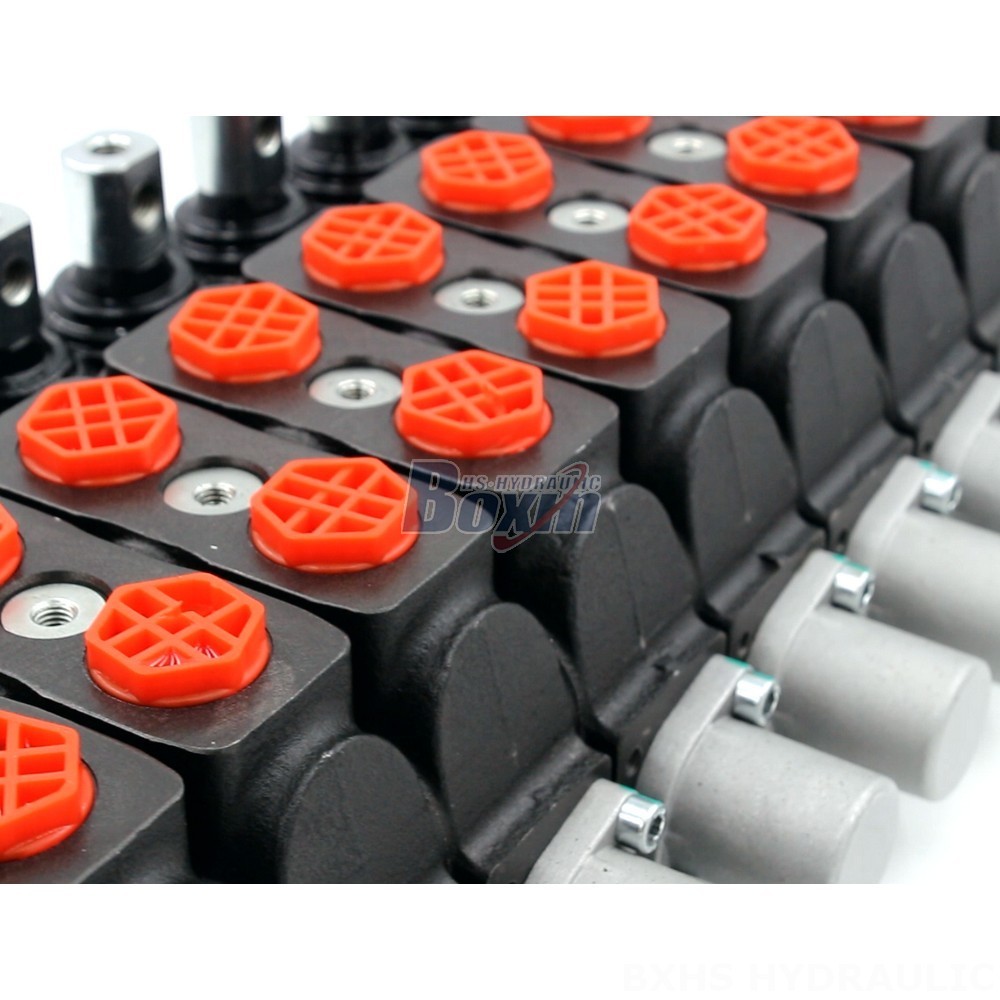

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable detail image

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable

제어 방식:수동

스풀:9 스풀

정격 유량:분당 90리터 (23.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G1/2

출구 포트:G3/4

포트 크기:G1/2

브랜드:BXHS

제품 유형:구역 방향 밸브

제품 시리즈:SD8 시리즈 구역 방향 밸브

포장 크기:50*35*17

총중량:37.00 kg

재고 상태: 재고 있음

문의하기

1057 이 제품을 찾아보시지 않겠습니까?

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable

SD8 Manual Hydraulic Directional Valve | Factory Direct & Customizable drawing image

The SD8 Manual Hydraulic Directional Valve is a high-performance, 9-section, sectional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It offers manual control, a rated flow of 90 L/min, and a maximum pressure of 350 bar.

SD8 시리즈 구역 방향 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	섹션 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션
작동 점도 범위	12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량	분당 90리터 (23.8 US gpm)
최대 압력	315바 (4600 psi)
입구 포트	G1/2, G3/4, SAE 10
출구 포트	G1/2, G3/4, SAE 10, 3/4 NPT
포트 크기	G1/2, SAE 10

The SD8 Series Manual Hydraulic Directional Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 9-section, sectional valve features a manual control mechanism for easy operation. Its rated flow of 90 L/min and maximum pressure of 350 bar make it ideal for heavy-duty applications. The valve is designed to operate in temperatures ranging from -40°C to +80°C, making it suitable for a wide range of environments. It is compatible with a variety of hydraulic systems and is commonly used in telehandlers, forklifts, cranes, excavators, loaders, and other industrial vehicles.
