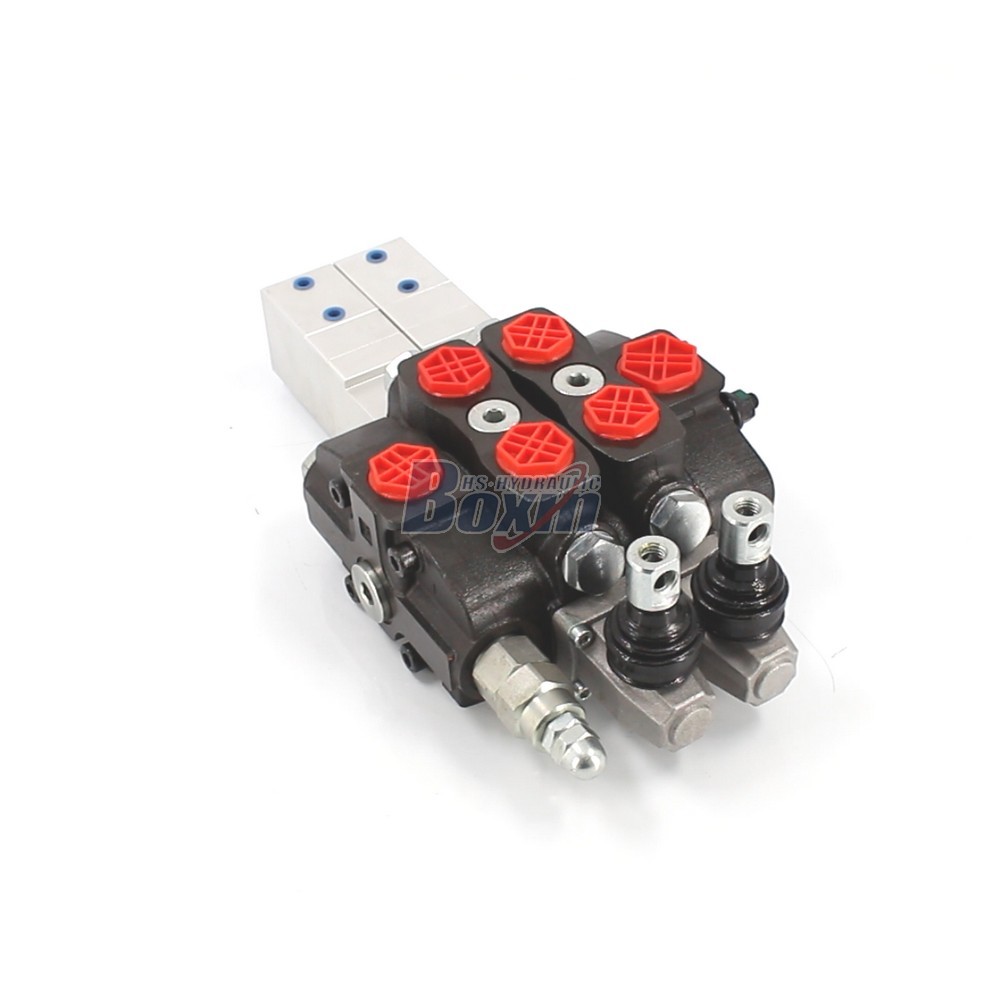

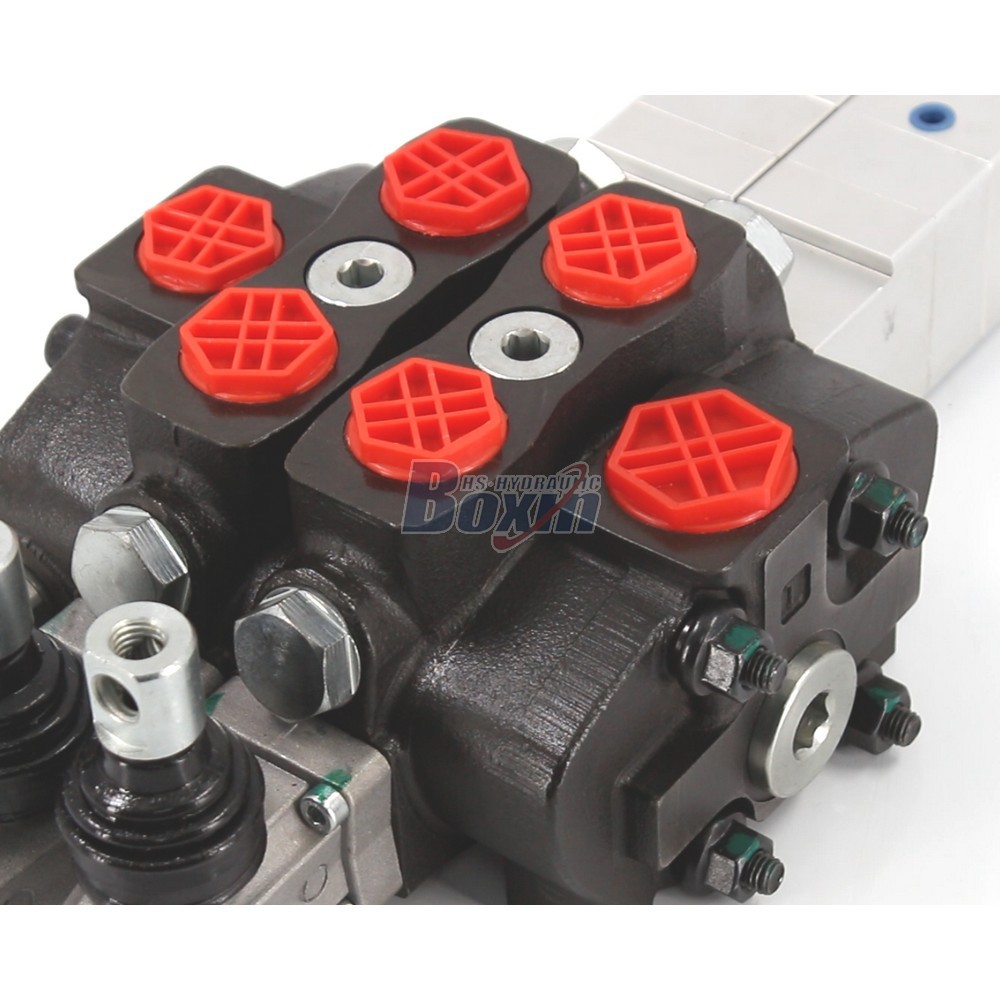

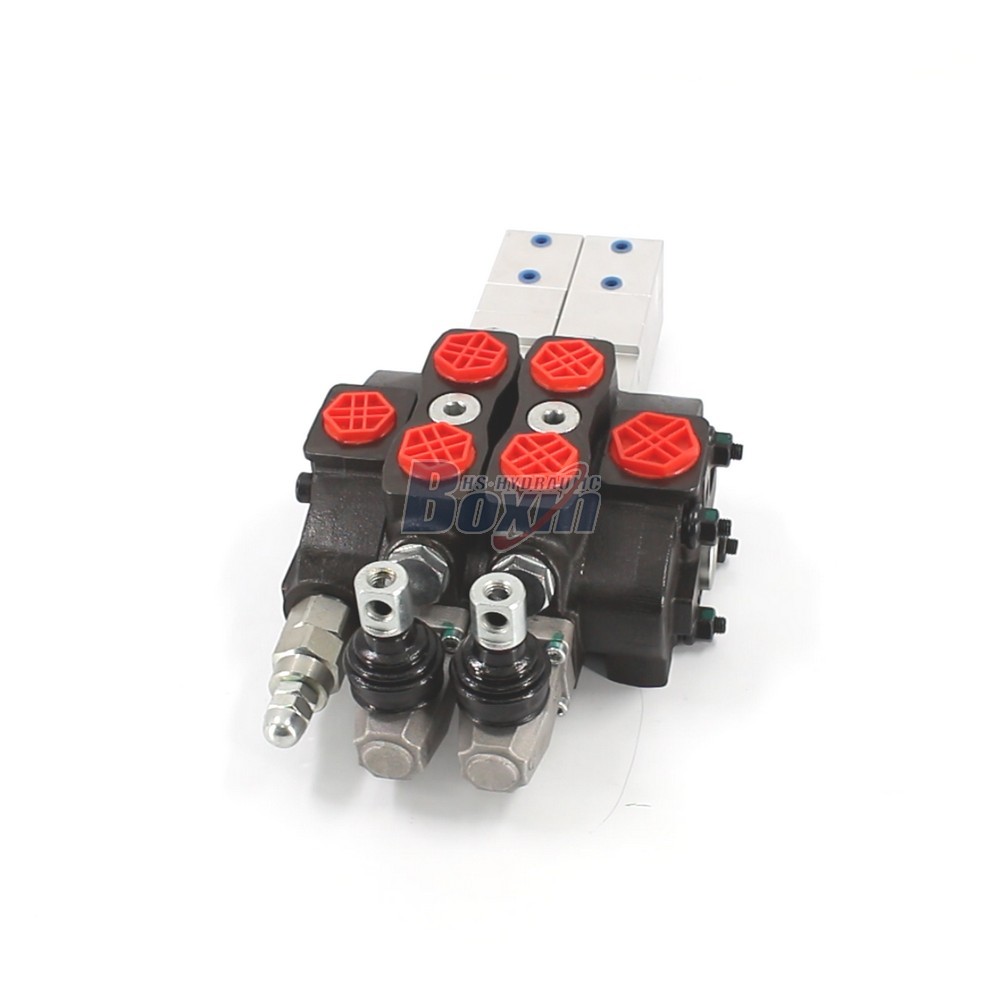

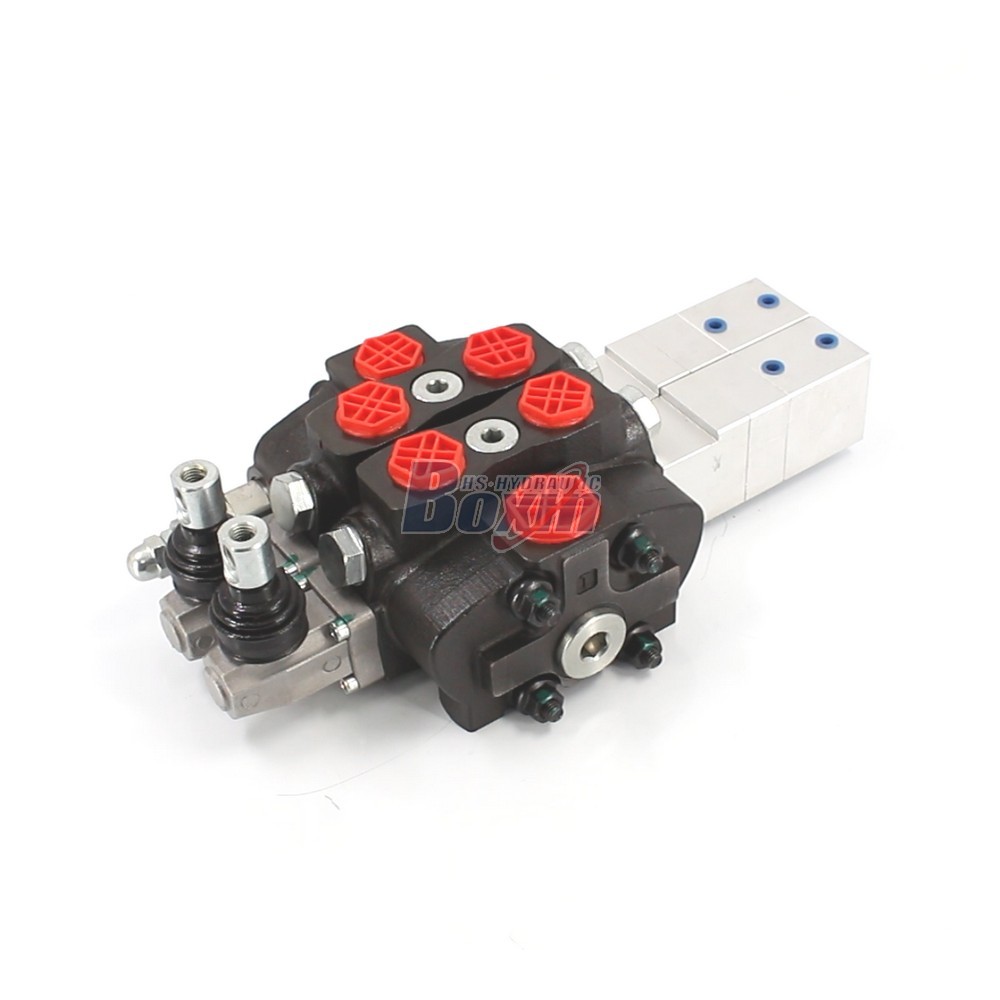

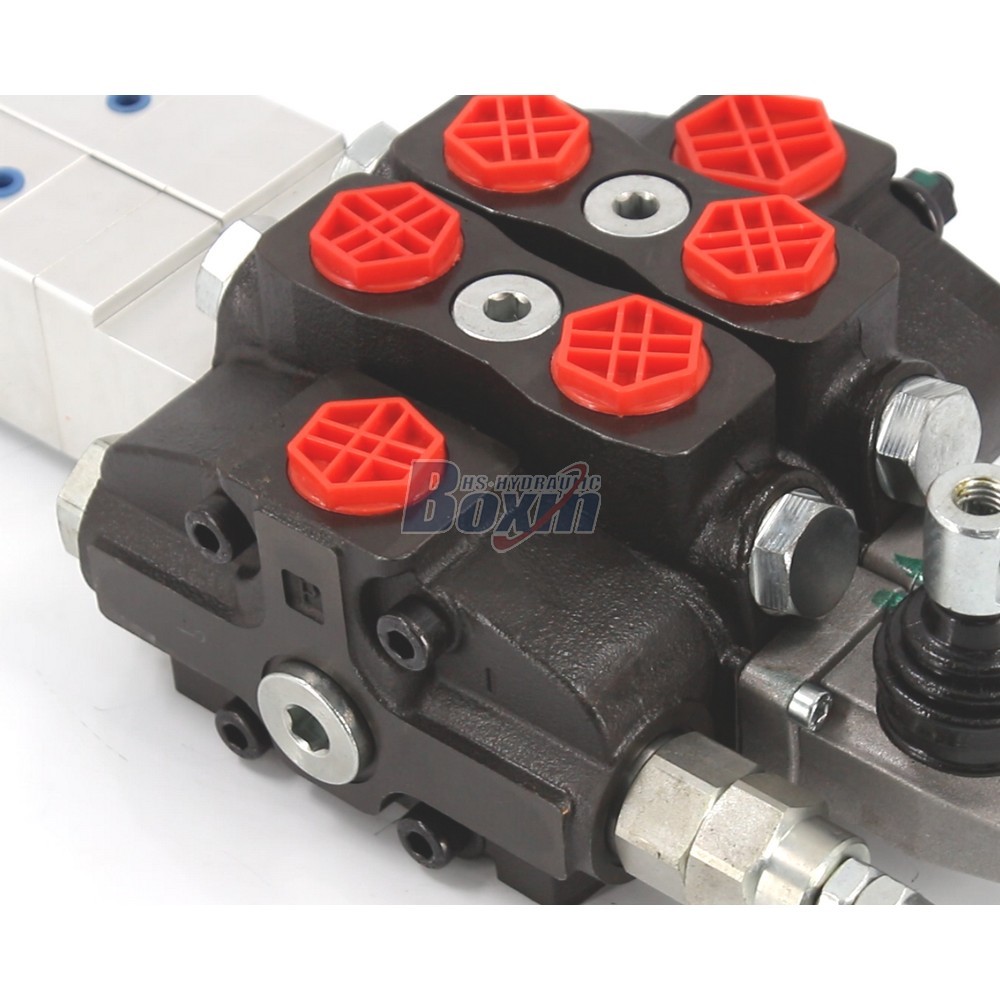

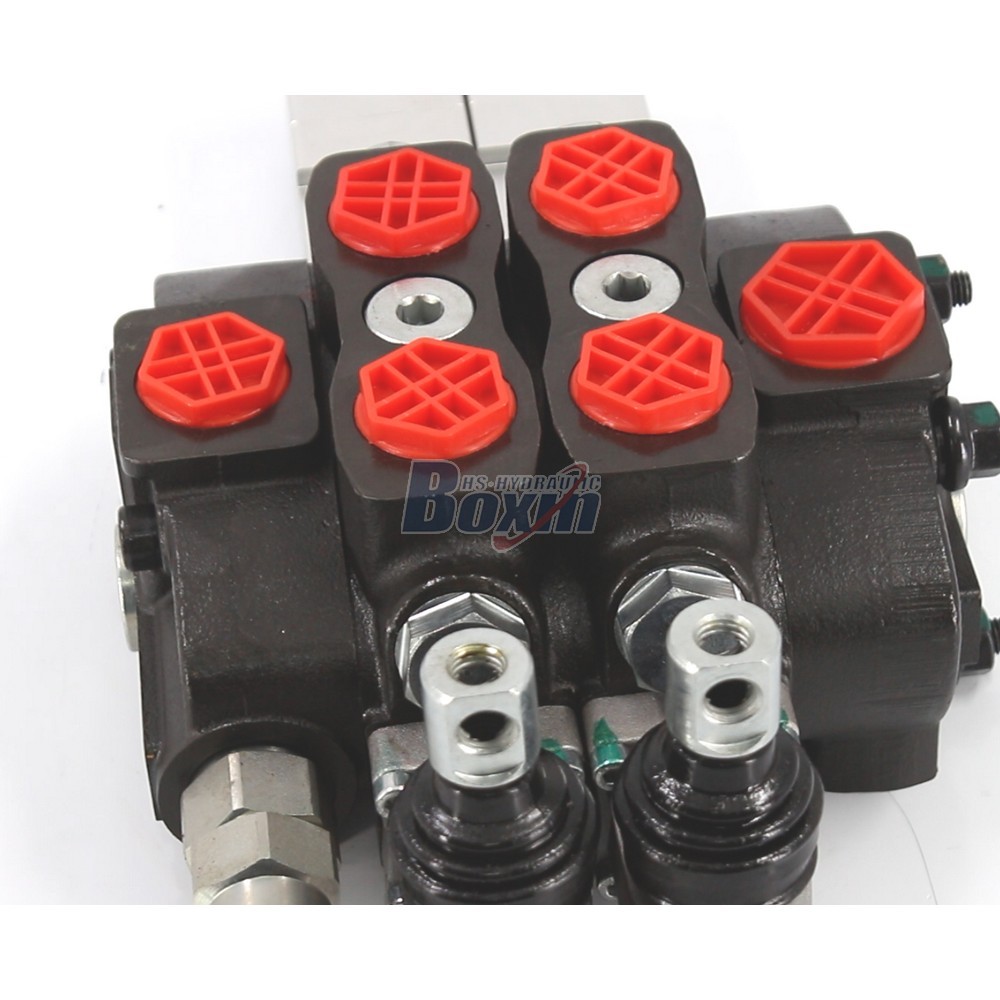

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

제어 방식:공압

스풀:2 스풀

정격 유량:분당 90리터 (23.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:SAE 10

출구 포트:SAE 10

포트 크기:SAE 10

브랜드:BXHS

제품 유형:구역 방향 밸브

제품 시리즈:SD8 시리즈 구역 방향 밸브

포장 크기:34*24*15.5

총중량:12.50 kg

재고 상태: 재고 있음

92 이 제품을 찾아보시지 않겠습니까?

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery

SD8 Pneumatic Control Valve 2 Spool Sectional Type for Machinery drawing image

The SD8 Series Pneumatic Control Valve is a high-performance 2-spool sectional valve designed for heavy-duty machinery. With a rated flow of 80 L/min and a maximum pressure of 350 bar, it provides precise pneumatic control for applications in construction, agriculture, and material handling.

SD8 시리즈 구역 방향 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 섹션 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션
작동 점도 범위 12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량 분당 90리터 (23.8 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2, G3/4, SAE 10
출구 포트 G1/2, G3/4, SAE 10, 3/4 NPT
포트 크기 G1/2, SAE 10

As a leading large-scale manufacturer of hydraulic products, we offer the SD8 Series Pneumatic Control Valve, a robust 2-spool sectional type solution engineered for global markets. This valve features a rated flow of 80 L/min (21.2 US gpm) and can withstand pressures up to 350 bar (5100 psi), ensuring reliable performance in demanding environments like construction sites and agricultural fields. It is widely compatible with forklifts, mini-excavators, skid steer loaders, and tractors. We provide comprehensive manufacturing services including OEM, ODM, and custom branding to meet specific technical requirements. Our factory offers direct wholesale supply with competitive pricing for bulk orders. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. Contact us for factory-direct sourcing and professional hydraulic solutions tailored to your machinery needs.
