The SDS180 Manual 2 Spool Sectional Directional Valve is a versatile and high-performance hydraulic valve designed for a wide range of applications in industries such as material handling, construction, and agriculture. With its robust construction, precise control, and durability, it offers reliable operation and enhanced system efficiency.
| SDS180 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 유압 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 160리터 (42.2 US gpm) |
| 최대 압력 | 315바 (4600 psi), 350바 (5100 psi) |
| 입구 포트 | G3/4, G1, SAE 12 |
| 출구 포트 | G1, SAE 16 |
| 포트 크기 | G3/4, G1, SAE 12 |

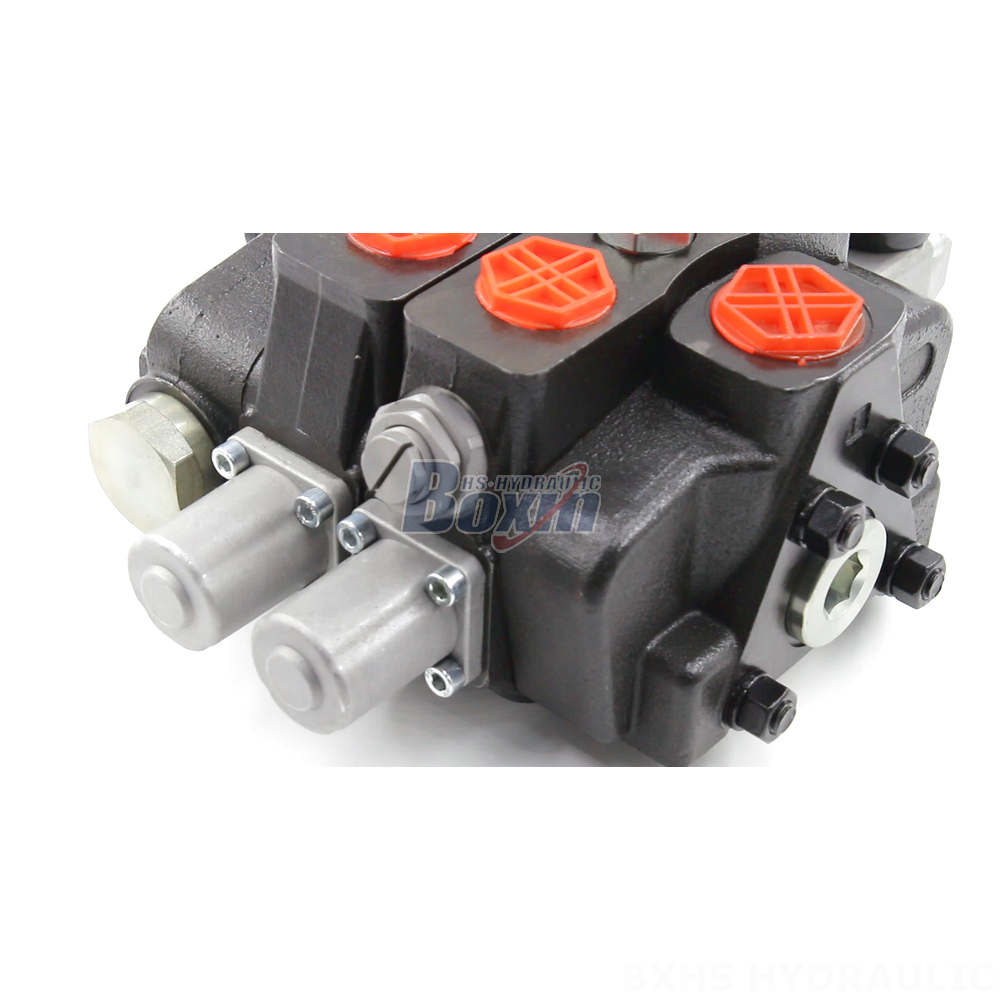

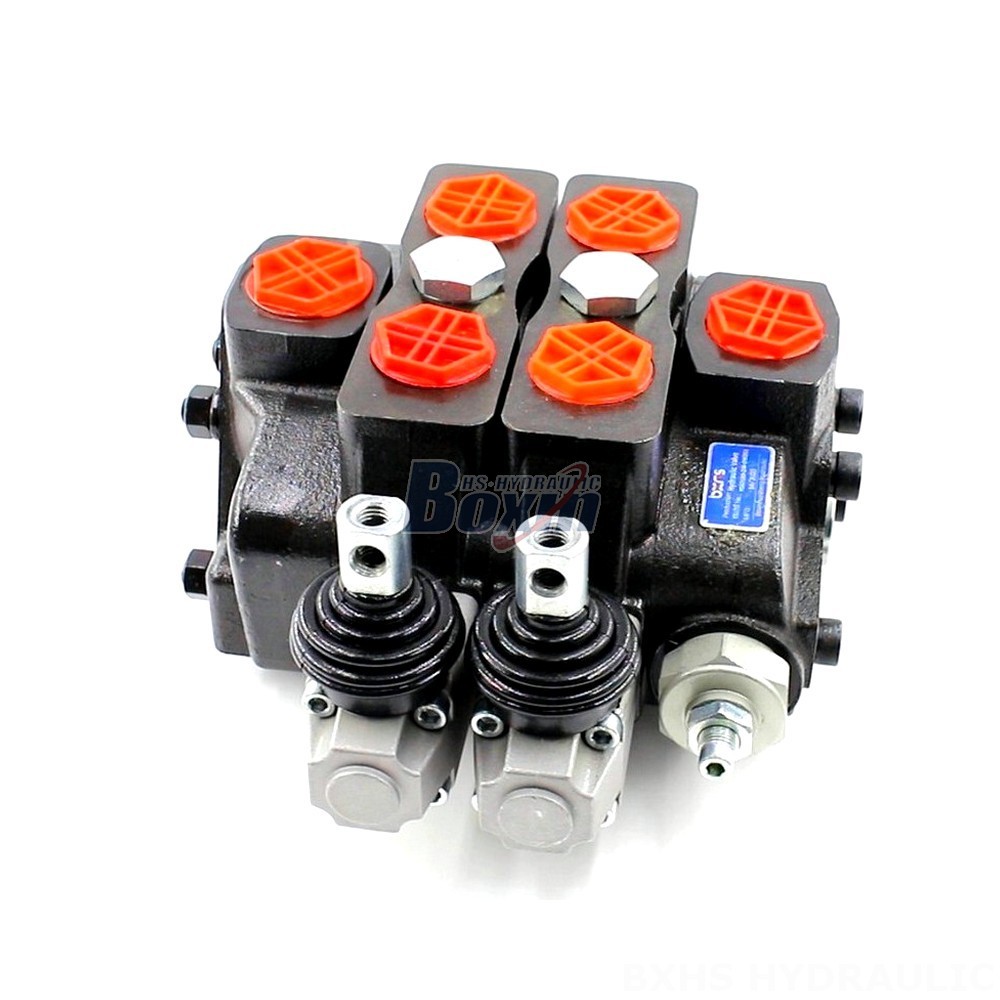

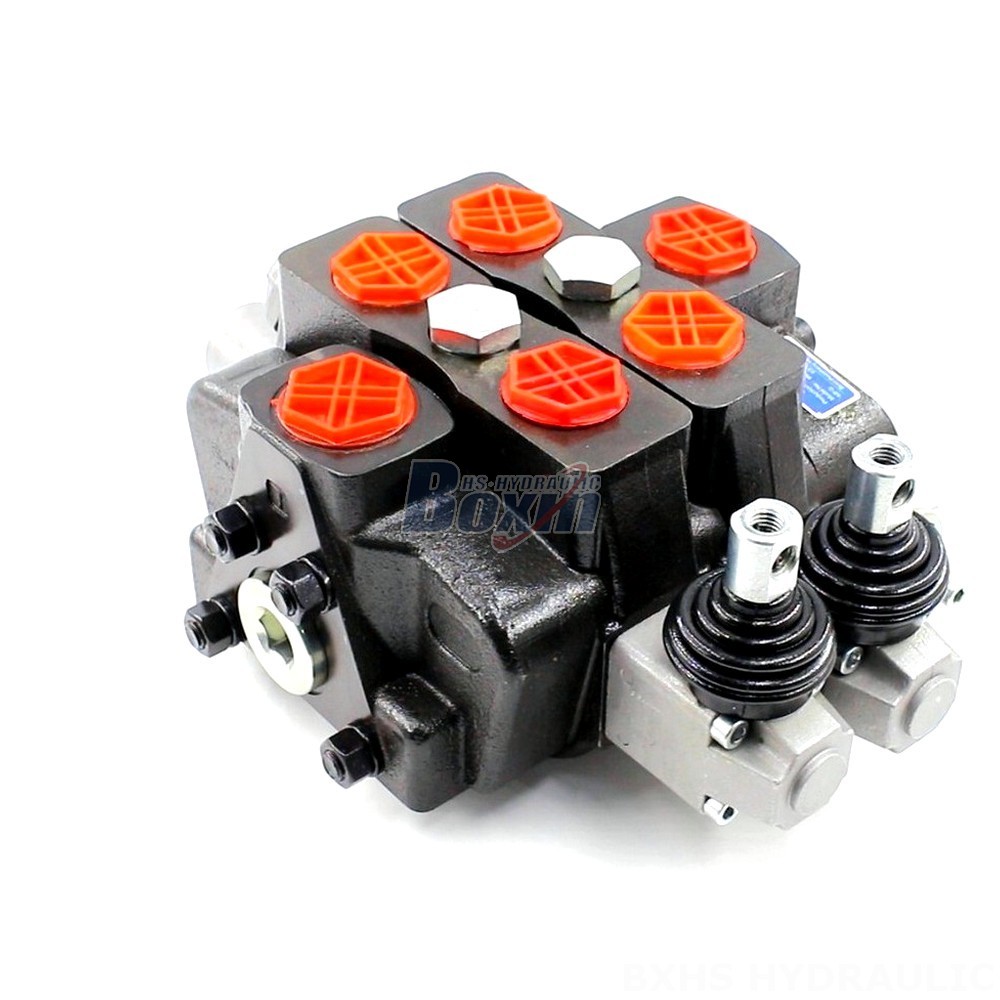

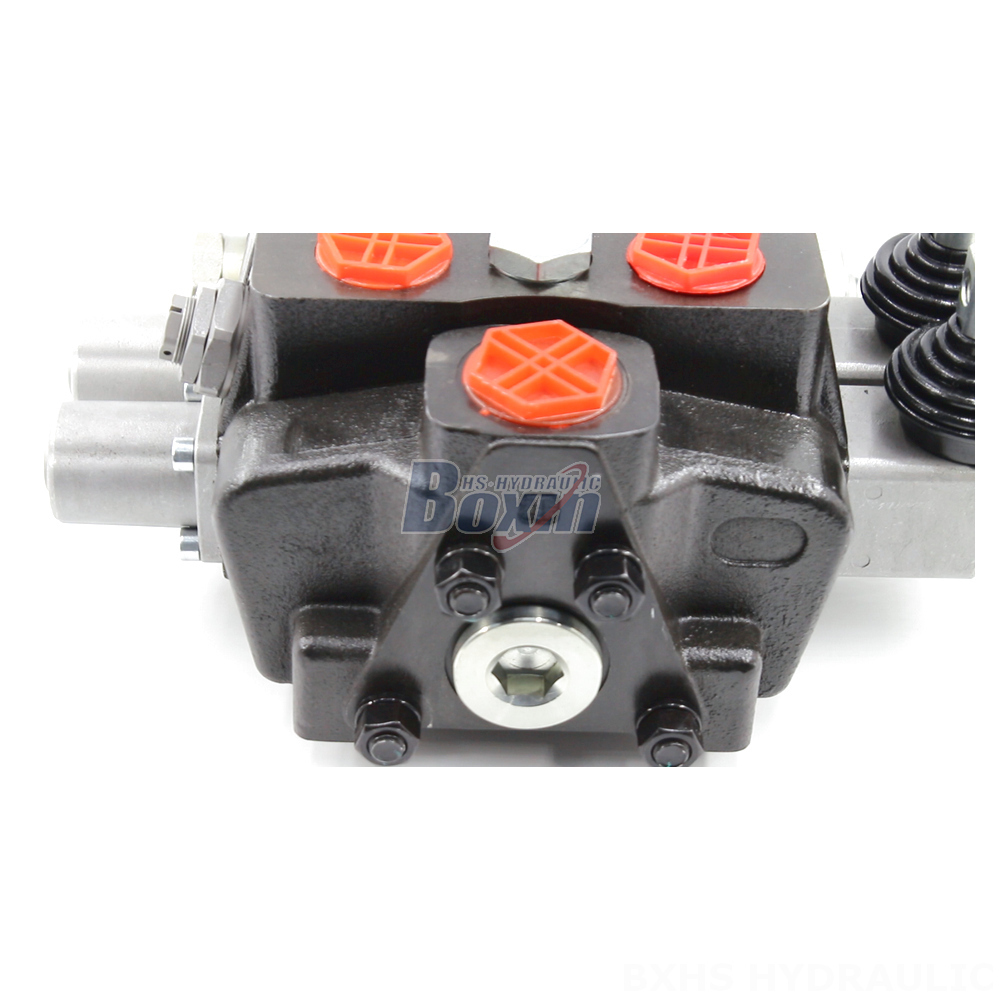

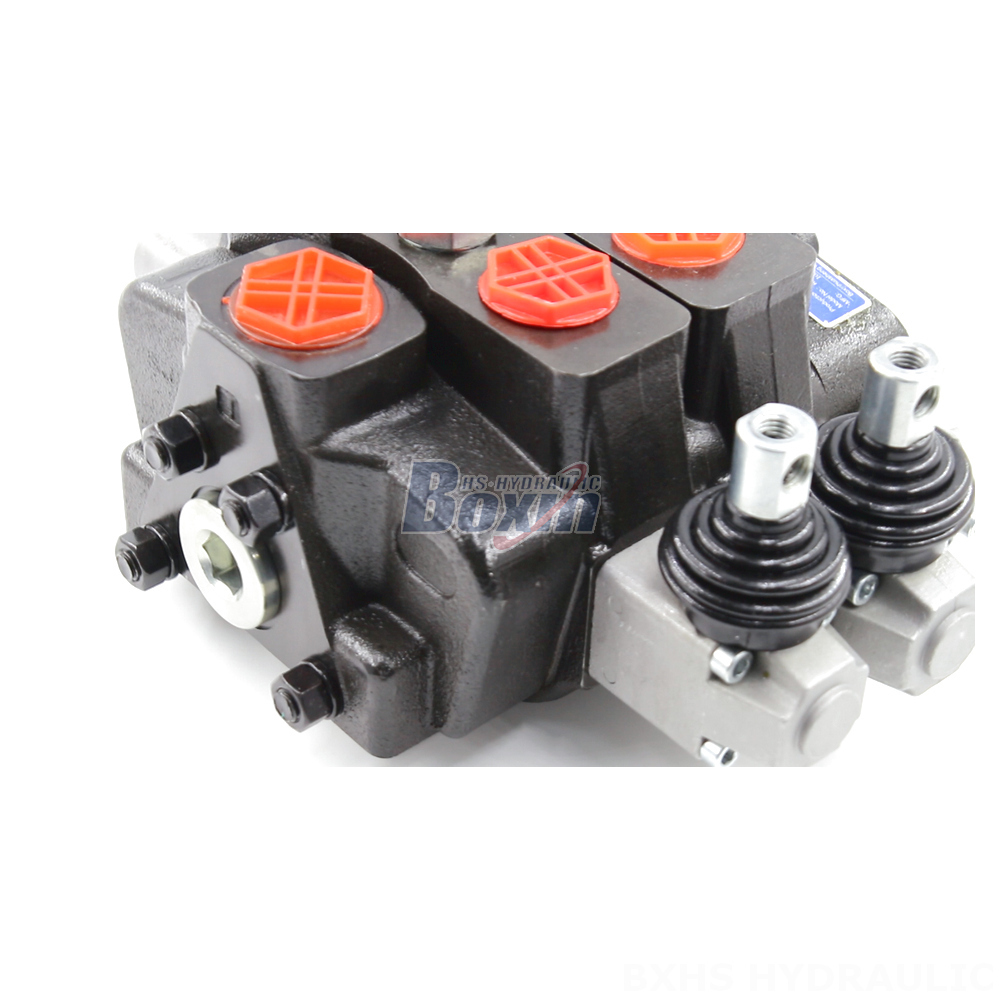

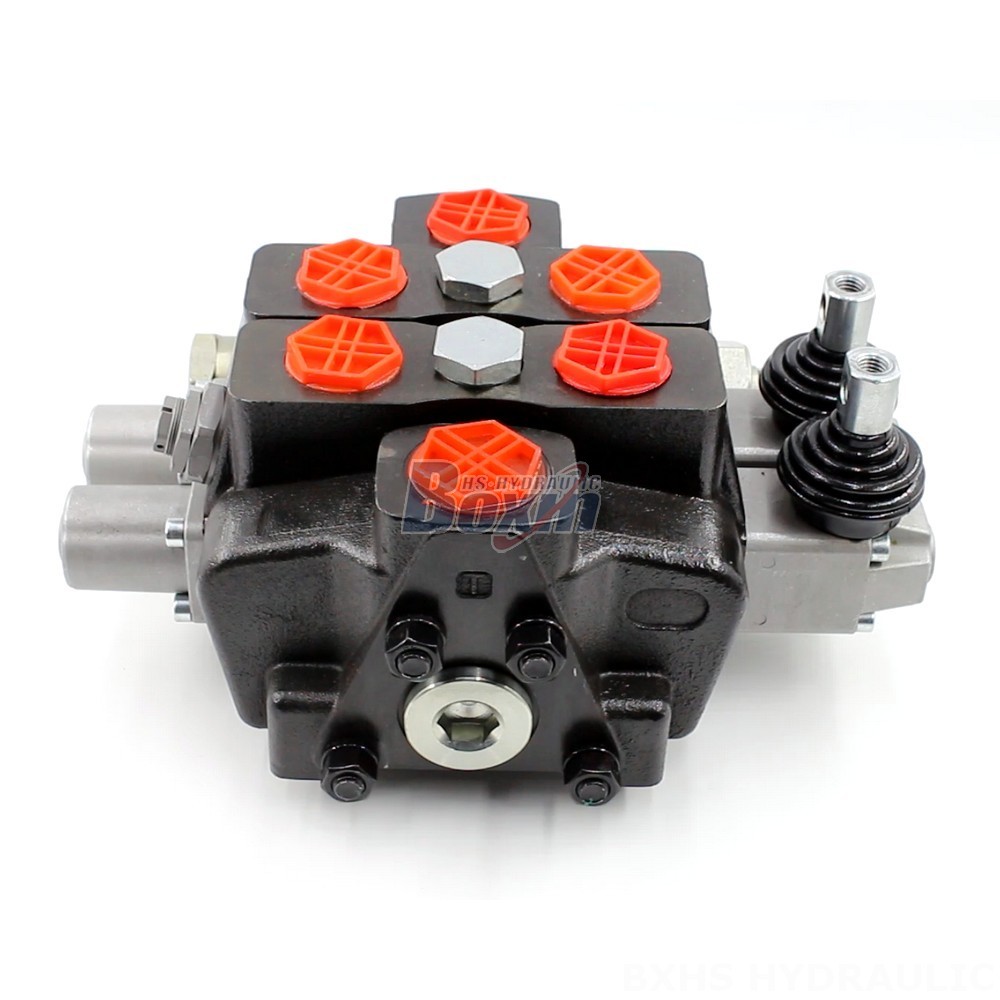

**Product Name:** SDS180 Manual 2 Spool Sectional Directional Valve
**Product Description:**
The SDS180 Manual 2 Spool Sectional Directional Valve is a 2-section, manually controlled hydraulic valve that provides precise and efficient flow control in hydraulic systems. It features a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for demanding applications.
**Key Features:**
* Manual control for precise and responsive operation
* 2-spool design for versatile flow control
* Sectional valve construction for modularity and flexibility
* Rated flow of 160 L/min (42.2 US gpm)
* Maximum pressure of 350 bar (5100 psi)
* Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt)
* Wide range of applications in material handling, construction, and agriculture
* Applicable models include telehandlers, forklifts, cranes, stackers, and excavators
