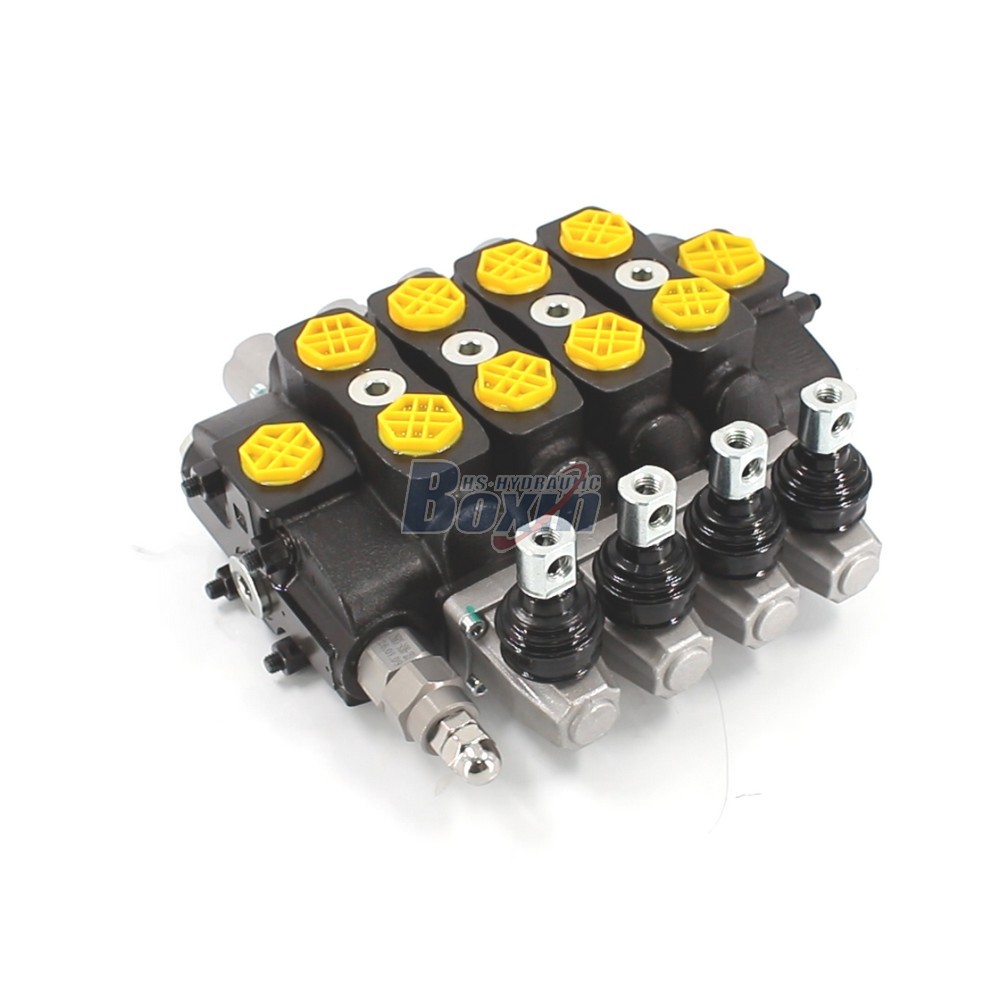

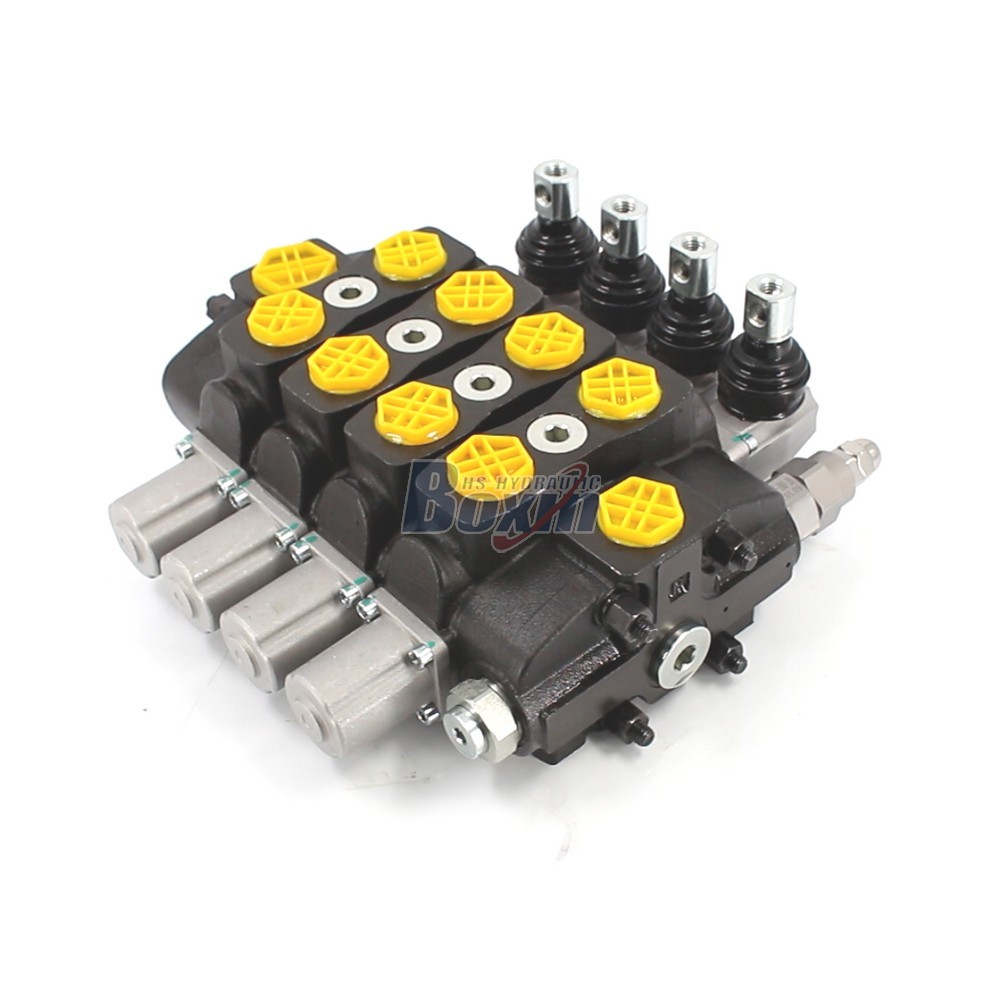

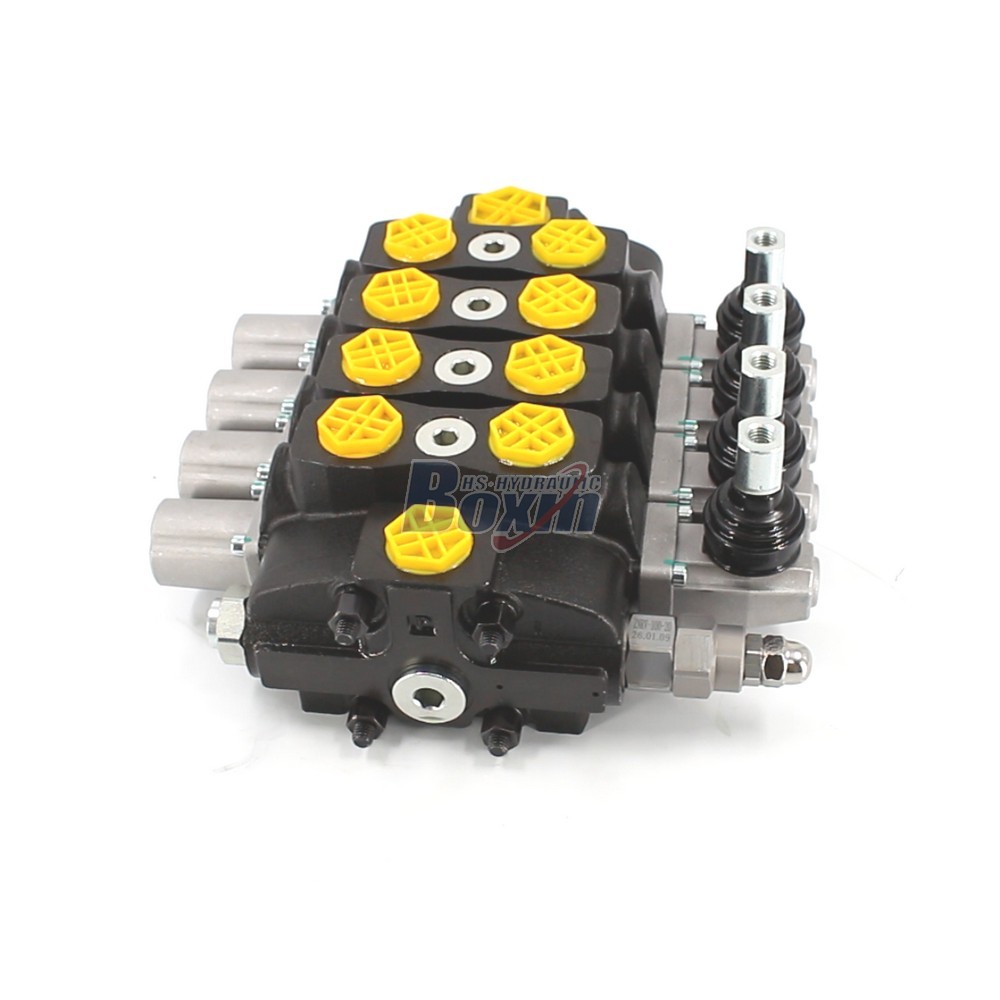

Sectional Type SD8 Manual 4 Spool Directional Valve

제어 방식:수동

스풀:4 스풀

정격 유량:분당 90리터 (23.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G1/2

출구 포트:G3/4

포트 크기:G1/2

브랜드:BXHS

제품 유형:구역 방향 밸브

제품 시리즈:SD8 시리즈 구역 방향 밸브

포장 크기:32*36*16

총중량:18.00 kg

재고 상태: 재고 있음

101 이 제품을 찾아보시지 않겠습니까?

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve

Sectional Type SD8 Manual 4 Spool Directional Valve drawing image

The SD8 Series 4-spool manual sectional directional valve is a high-performance hydraulic solution designed for flow rates up to 80 L/min and pressures up to 315 bar. This versatile valve offers precise manual control for a wide range of mobile and industrial applications, including construction, agriculture, and material handling equipment.

SD8 시리즈 구역 방향 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 섹션 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션
작동 점도 범위 12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량 분당 90리터 (23.8 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2, G3/4, SAE 10
출구 포트 G1/2, G3/4, SAE 10, 3/4 NPT
포트 크기 G1/2, SAE 10

As a leading manufacturer of hydraulic solutions, we offer the SD8 Series Sectional Type Manual 4 Spool Directional Valve, engineered for demanding environments. This valve features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 315 bar (4600 psi), making it ideal for machinery such as forklifts, skid steer loaders, mini-excavators, and tractors. The sectional design provides flexible configuration, while G1/2 inlet and G3/4 outlet ports ensure standard connectivity. We specialize in factory-direct supply, providing extensive OEM, ODM, and custom branding (Private Label) services to meet specific technical requirements. Our facility is equipped for large-scale production, supporting wholesale orders with competitive pricing. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need a reliable supplier for forestry wood splitters or complex aerial platforms, our factory provides the expertise and manufacturing capacity to support your business growth.
