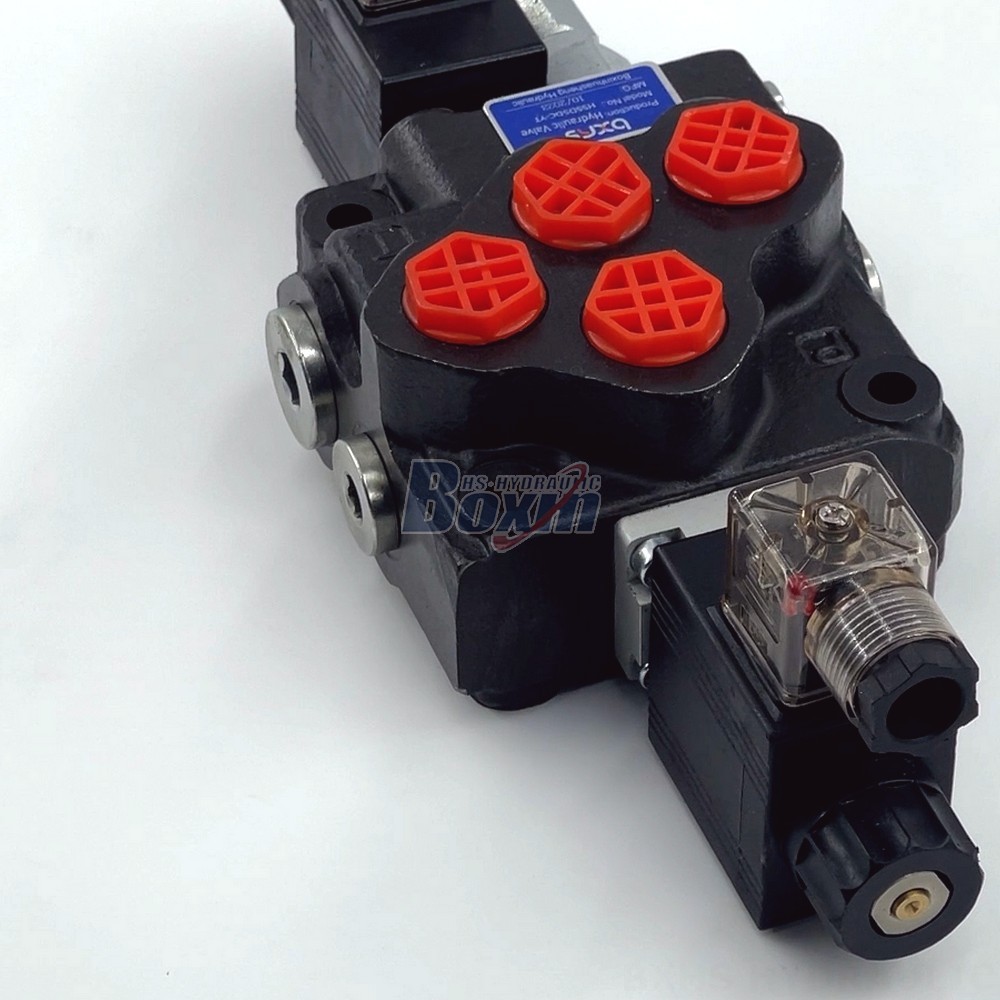

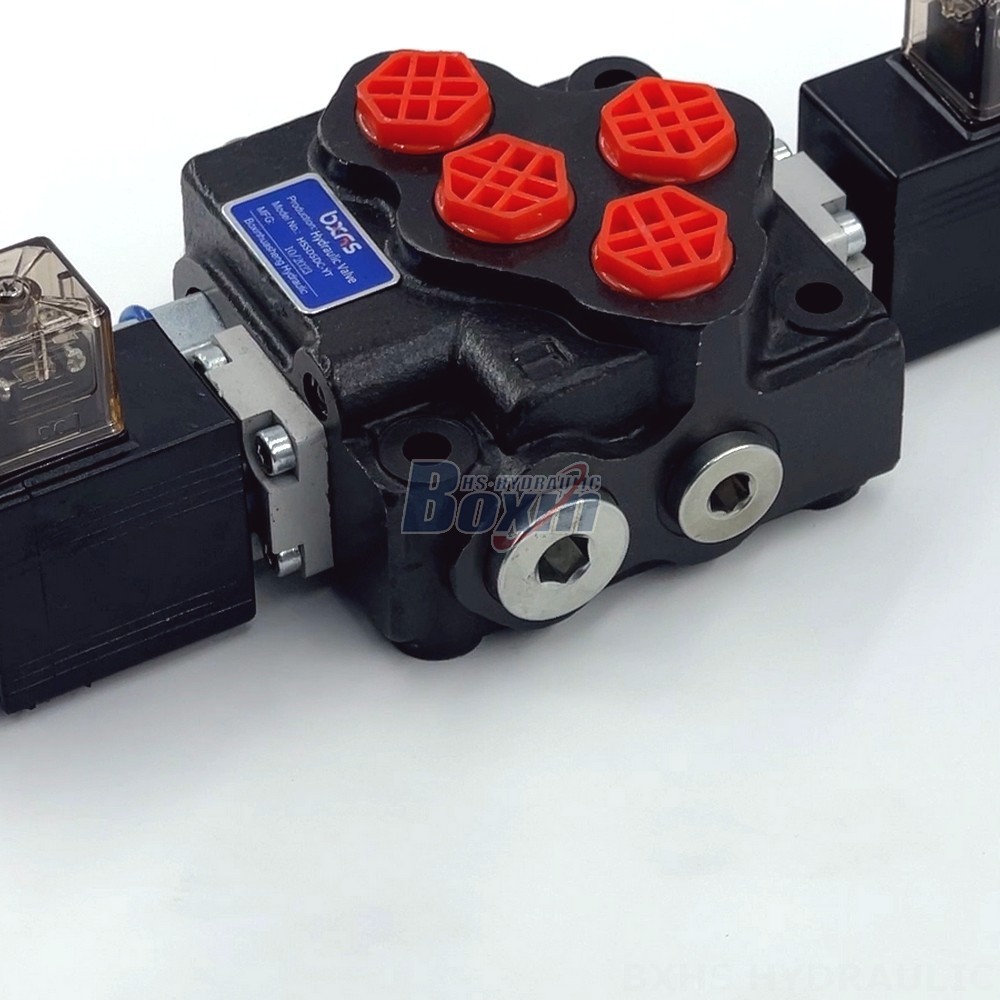

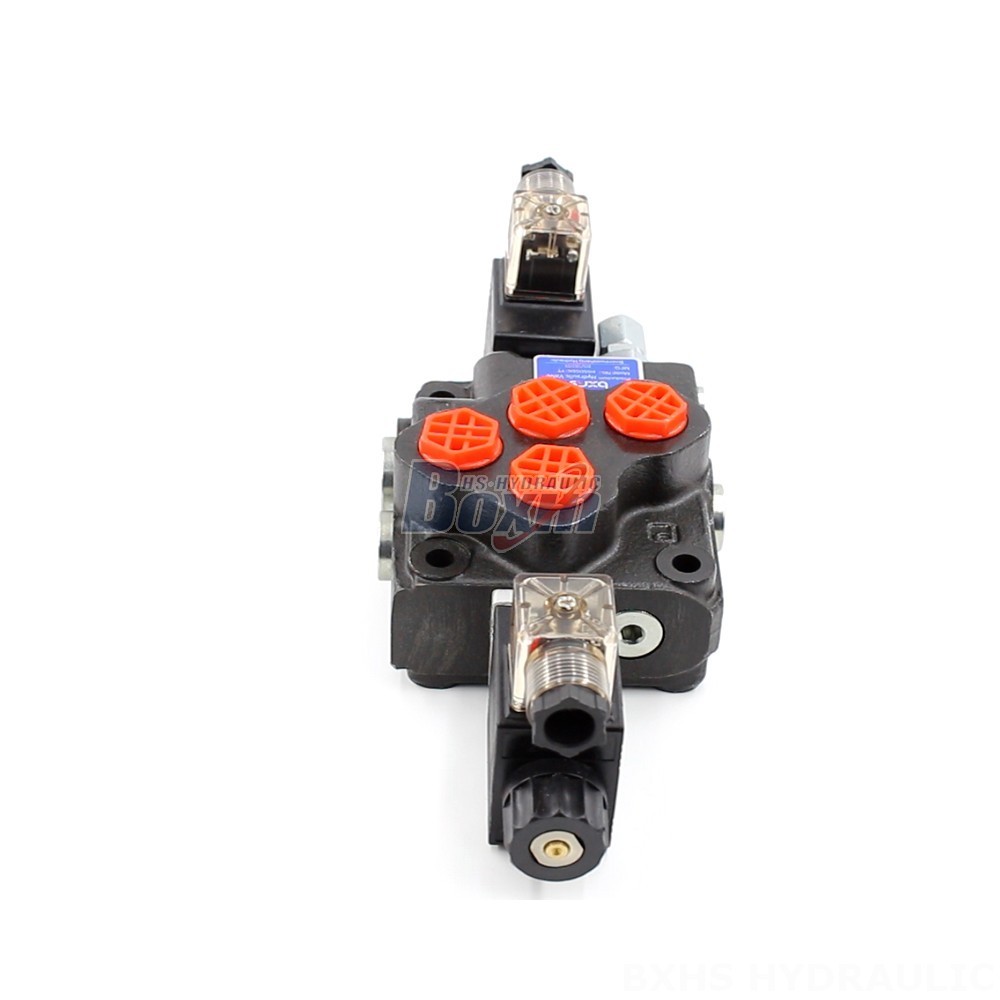

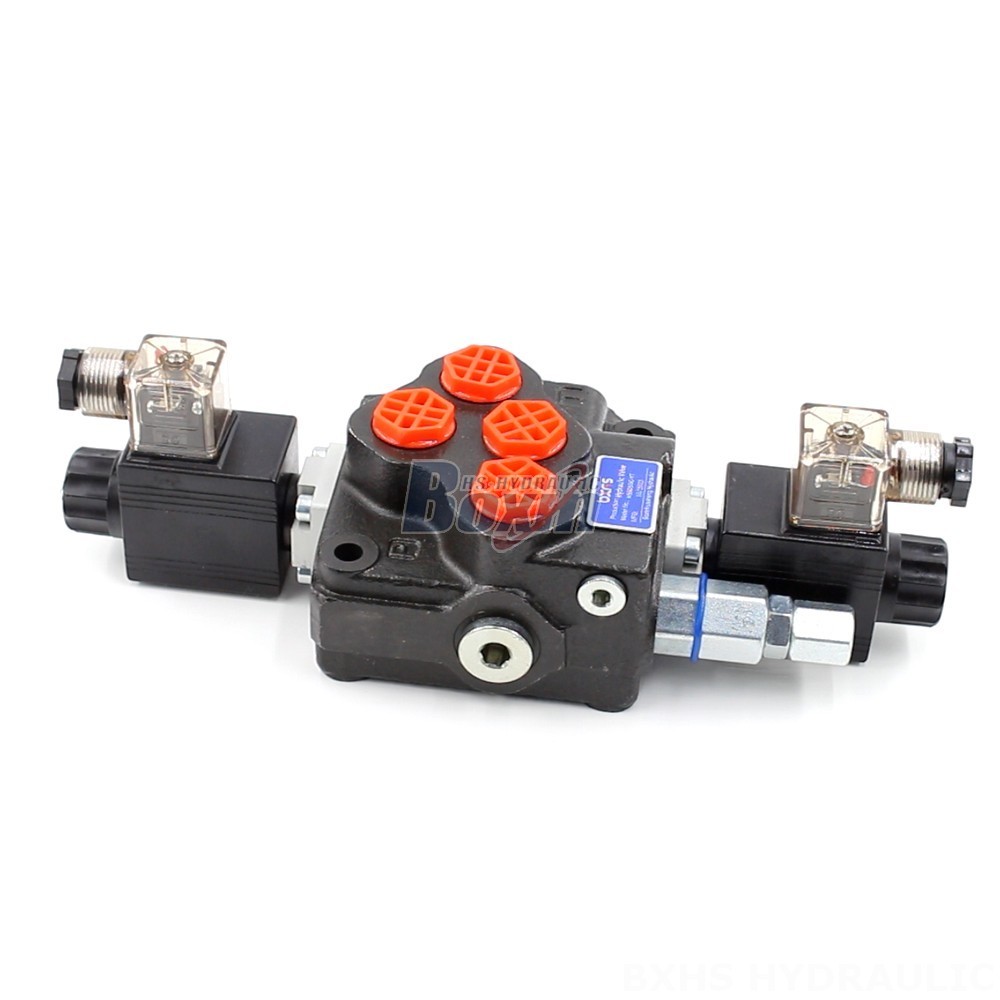

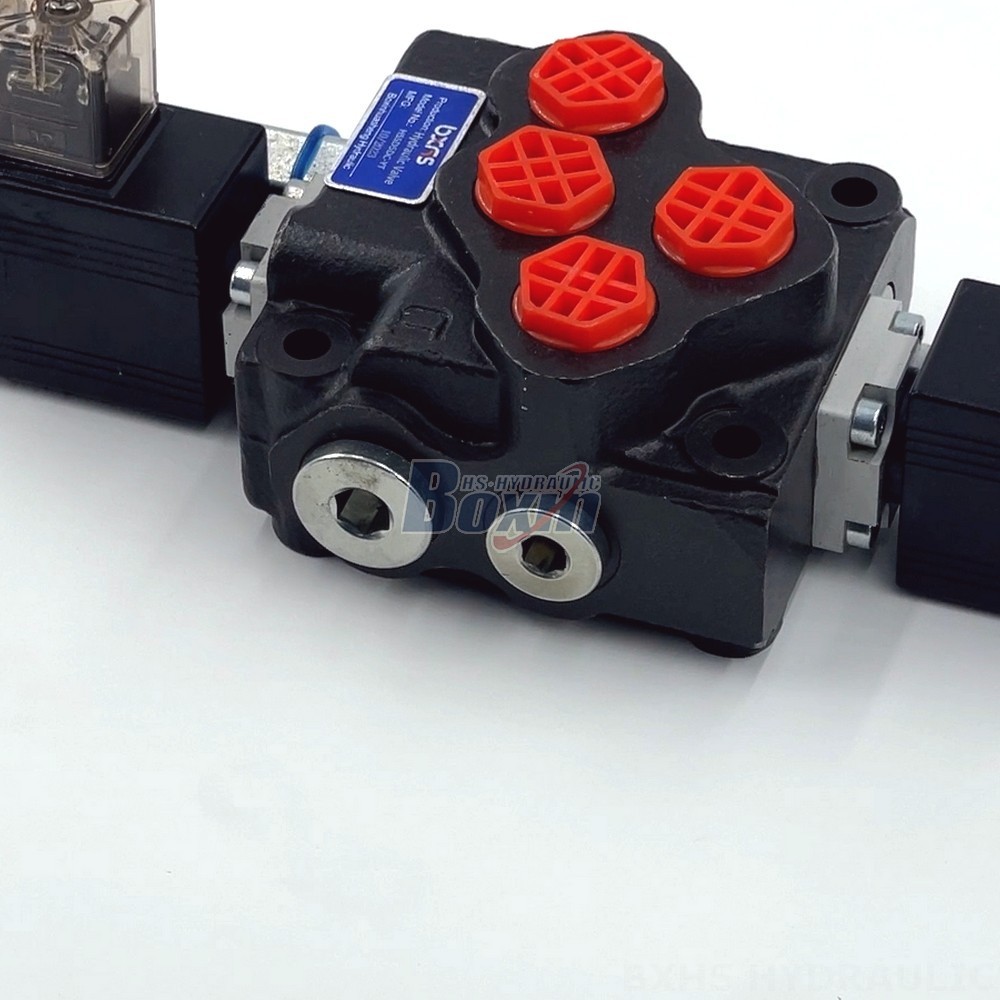

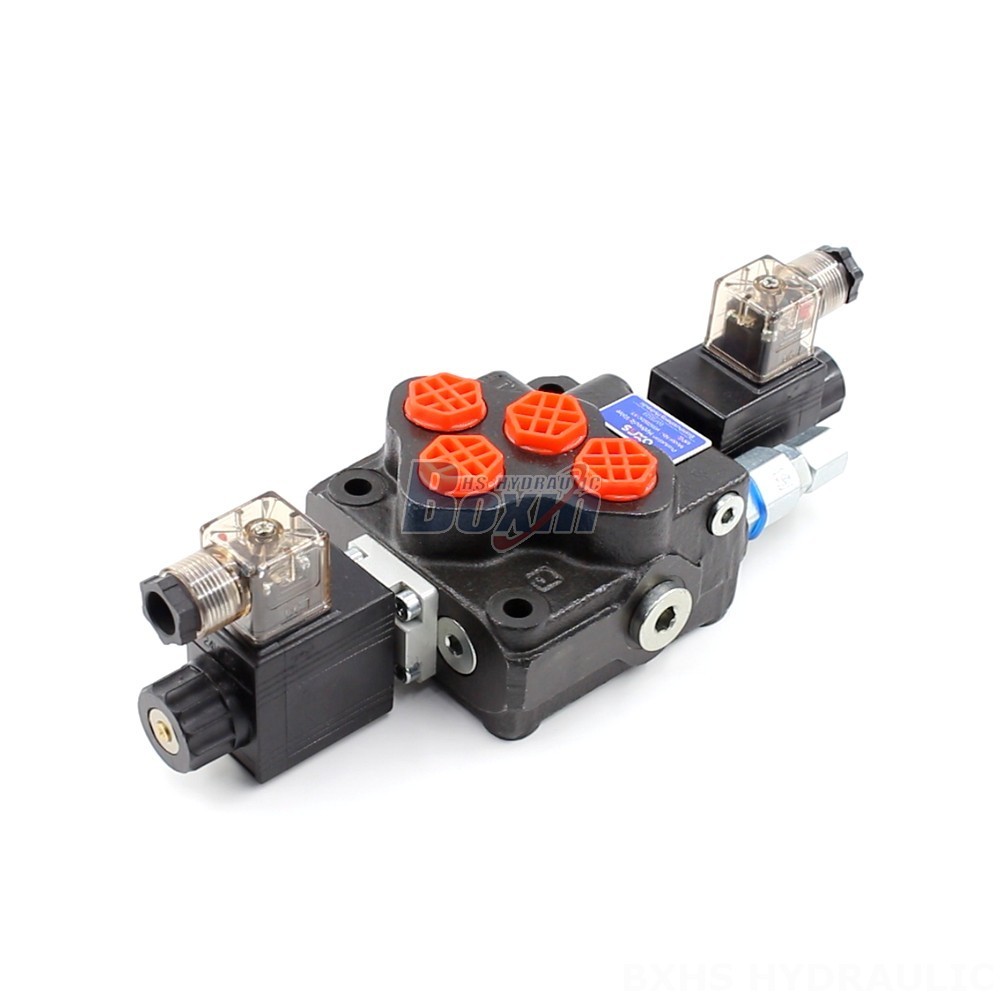

The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a durable and reliable valve designed for use in a variety of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a solenoid control method, 1 section, 40 L/min rated flow, and 305 bar maximum pressure. It's available directly from the factory and can be customized to meet your specific needs.
| SD5 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +60°C (-40°F to +140°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 305바 (4400 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| 출구 포트 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| 포트 크기 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series Log Splitter Spool Valve Solenoid Hydraulic Valve is a high-performance, heavy-duty valve designed for use in demanding applications. It features a compact design, robust construction, and reliable performance. This monoblock valve is controlled by a solenoid, offering precise and responsive operation. The valve is available in a variety of configurations to meet your specific needs. It is also available with a range of options and accessories, including custom-engineered solutions. The SD5 Series is the perfect choice for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is also suitable for use in a variety of harsh environments. Contact us today to learn more about this high-quality hydraulic valve.
