What is the primary application of the Solenoid Operated Valve | SD5 Series | Specifications and Technical Data?

The Solenoid Operated Valve | SD5 Series | Specifications and Technical Data is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data

Name: Solenoid Operated Valve | SD5 Series | Specifications and Technical Data
Brand: Boxinhuasheng
SKU: BXHS-51305
Availability: InStock

홈모노블럭 방향 제어 밸브SD5 시리즈제품 상세

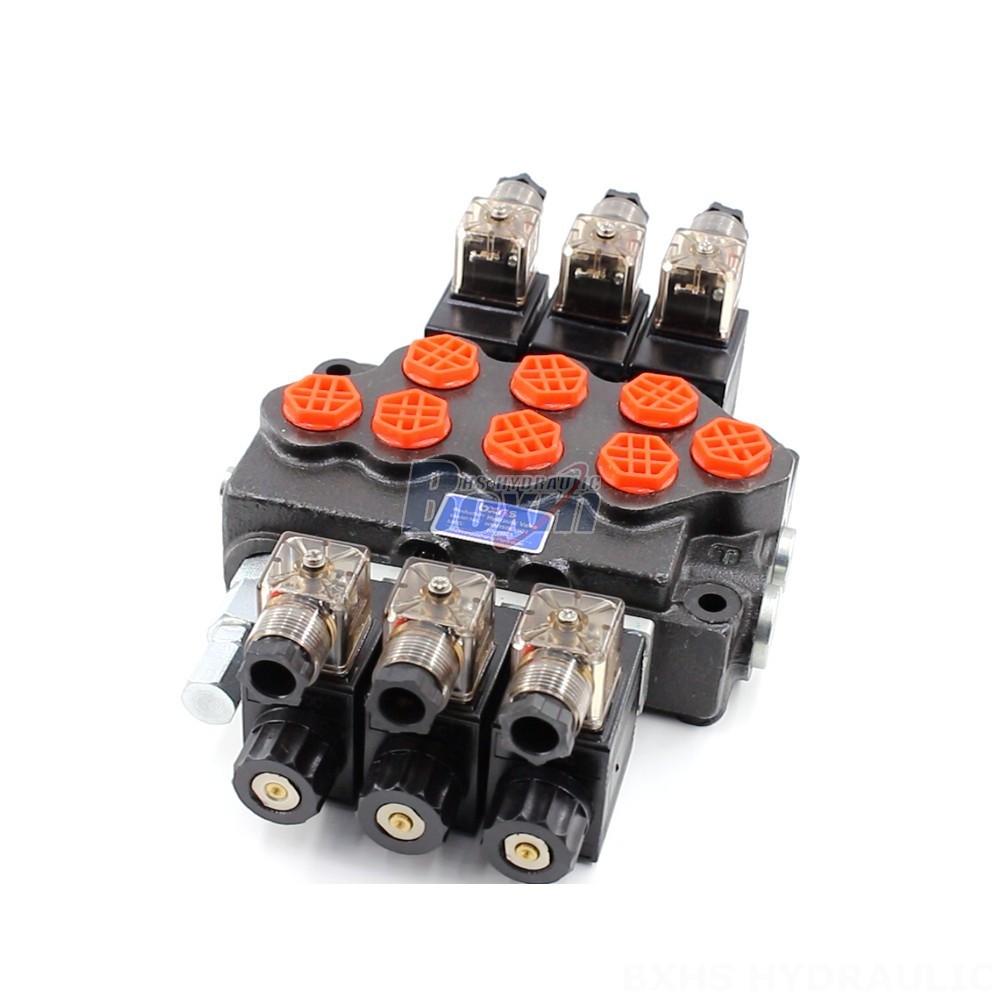

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data cover photo

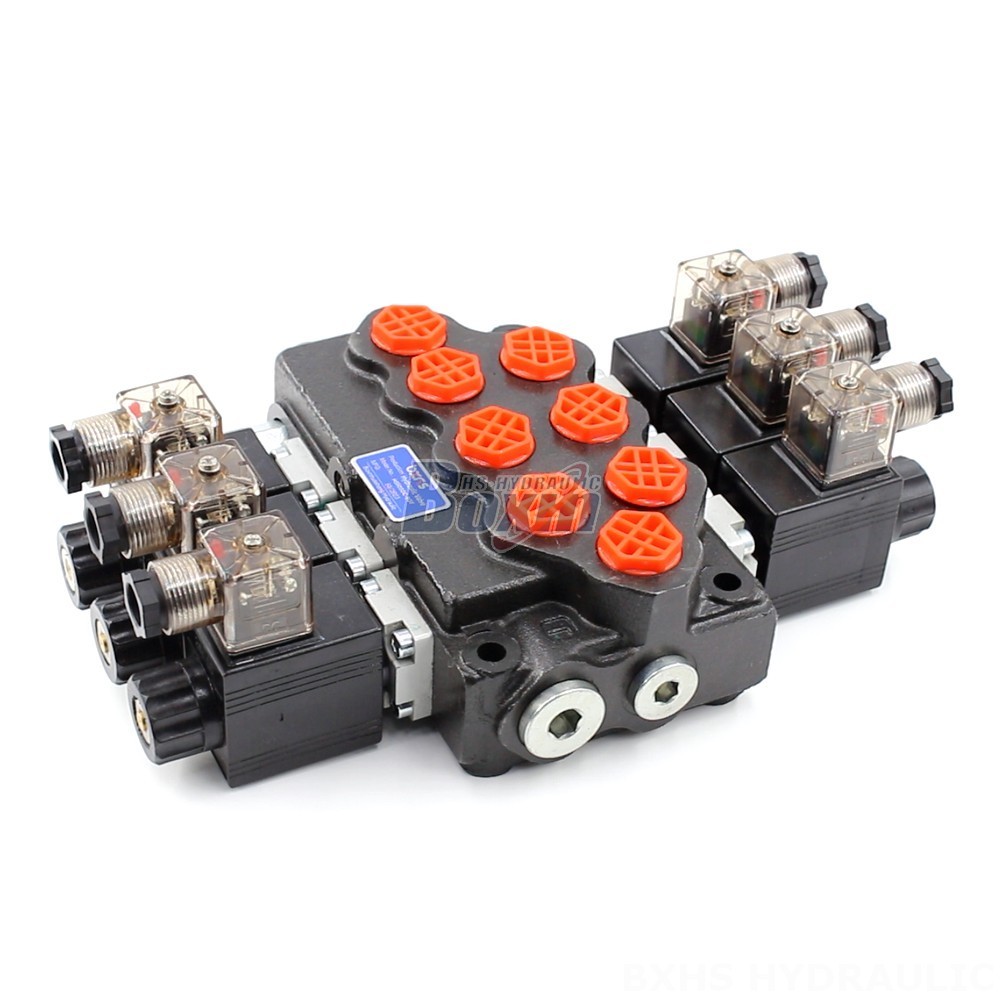

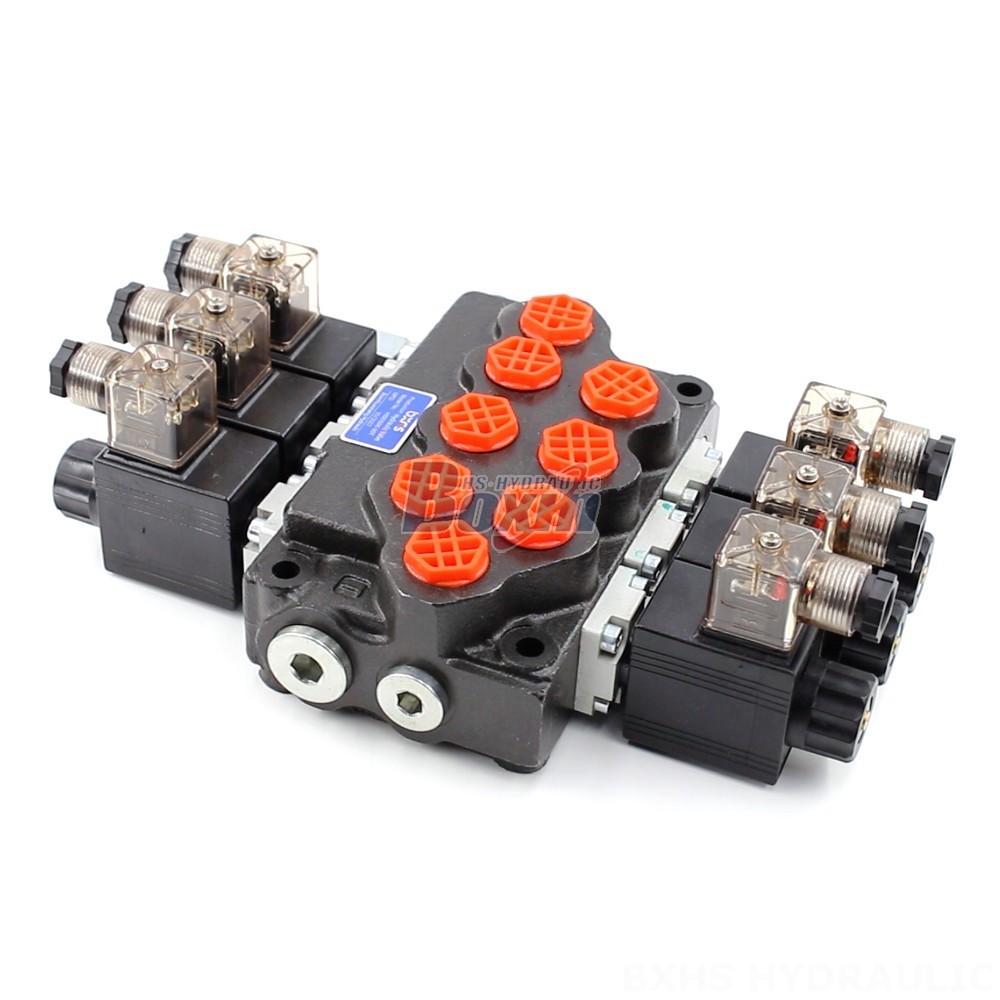

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data main image

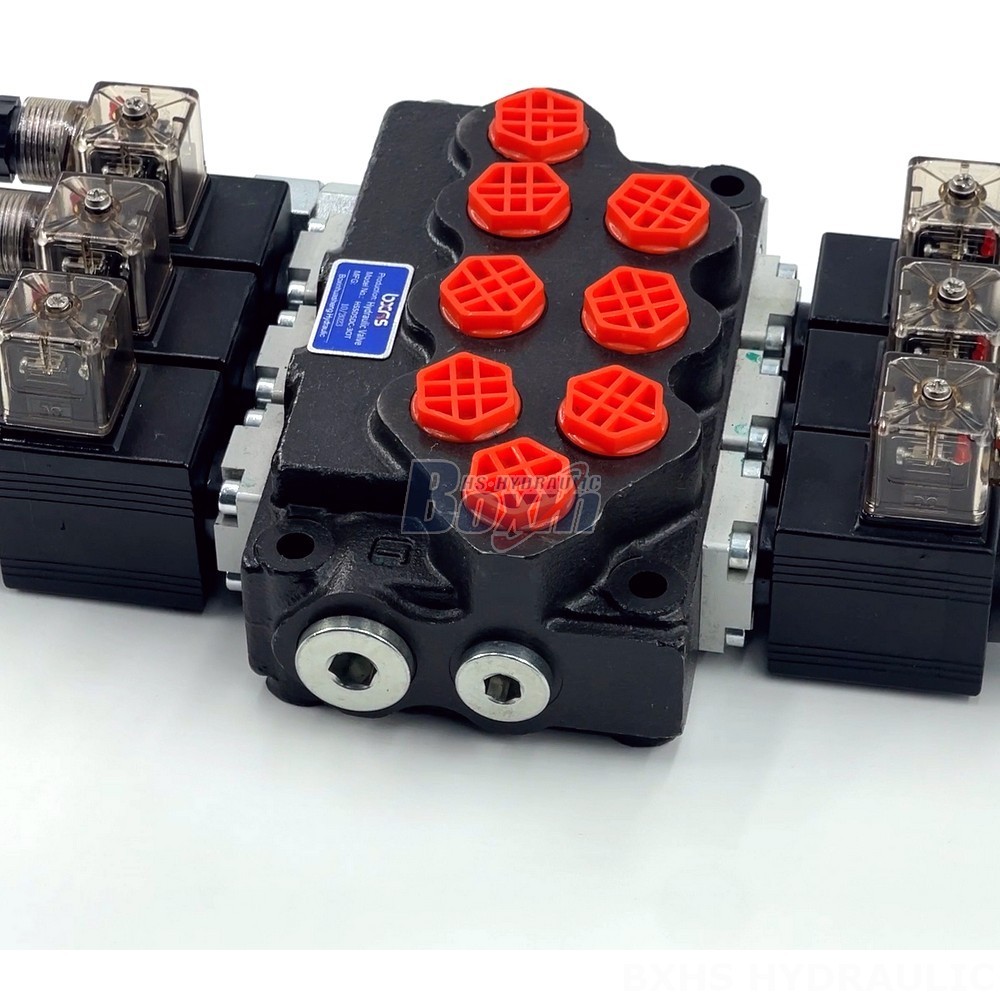

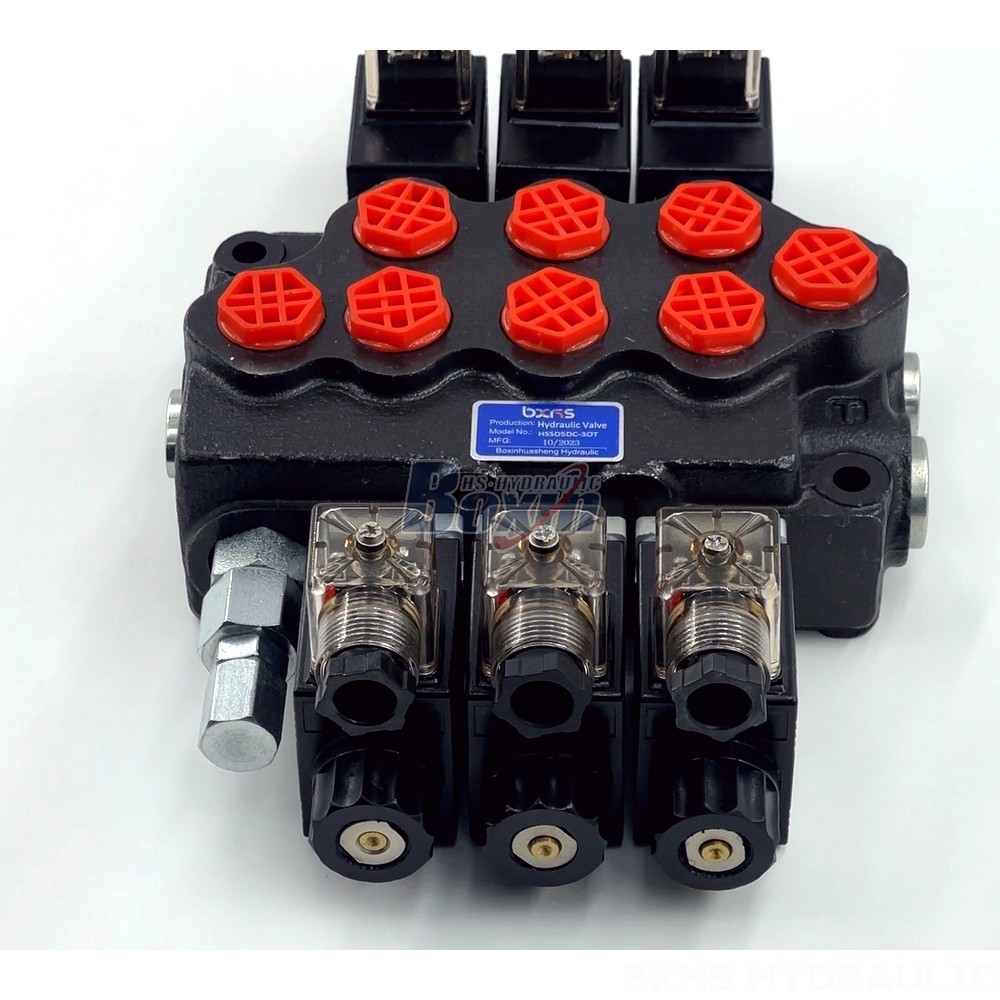

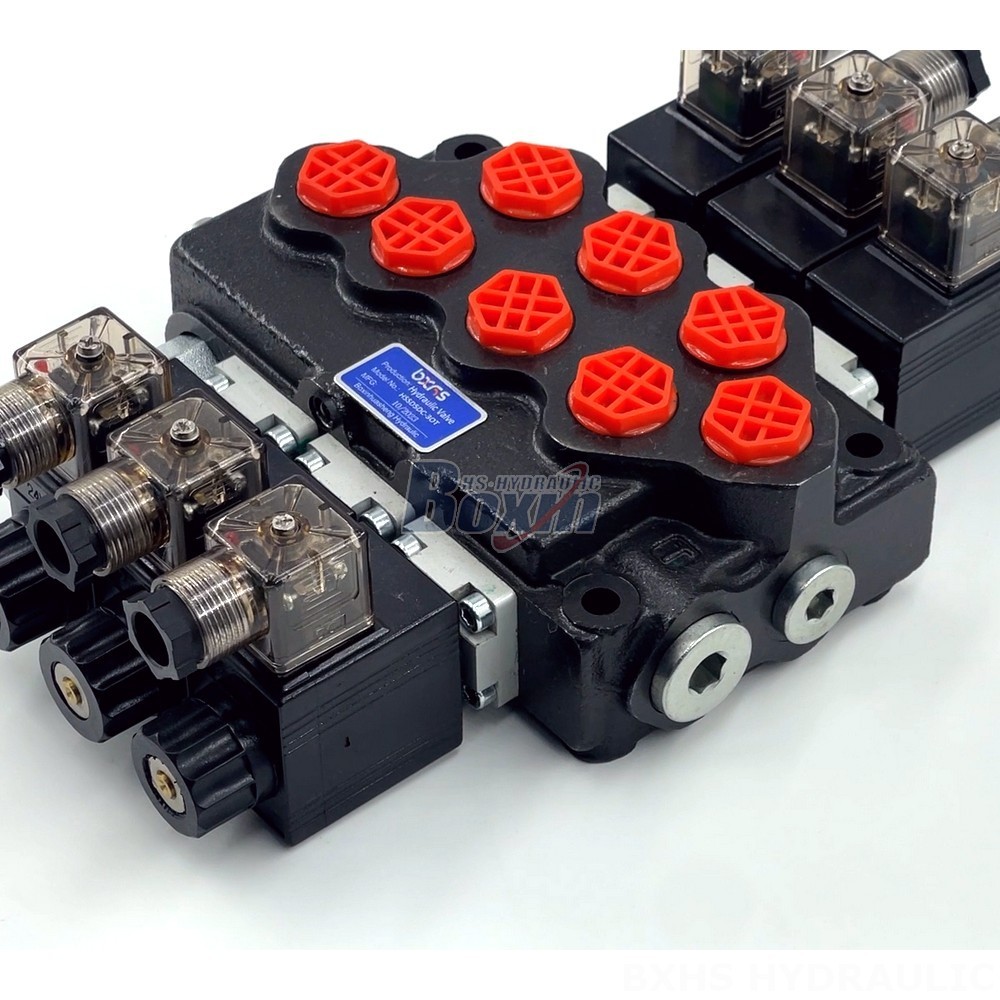

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data detail image

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data

제어 방식:솔레노이드

스풀:3 스풀

정격 유량:분당 45리터 (11.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G3/8

출구 포트:G3/8

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:SD5 시리즈 모노블럭 방향 제어 밸브

포장 크기:30*21*13

총중량:9.00 kg

재고 상태: 재고 있음

문의하기

1312 이 제품을 찾아보시지 않겠습니까?

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data

Solenoid Operated Valve | SD5 Series | Specifications and Technical Data drawing image

The SD5 Series Monoblock Valve is a solenoid operated hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. It features a compact design, high flow rate, and robust construction, making it ideal for demanding environments.

SD5 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +60°C (-40°F to +140°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	305바 (4400 psi)
입구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
출구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
포트 크기	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5 Series Monoblock Valve is a 3-section, 3-spool valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. It is designed for use with hydraulic fluids with a viscosity range of 15-75 mm²/s and can operate in ambient temperatures ranging from -40°C to +60°C. This valve is suitable for applications such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The SD5 Series Monoblock Valve is a reliable and durable solution for your hydraulic system needs.
