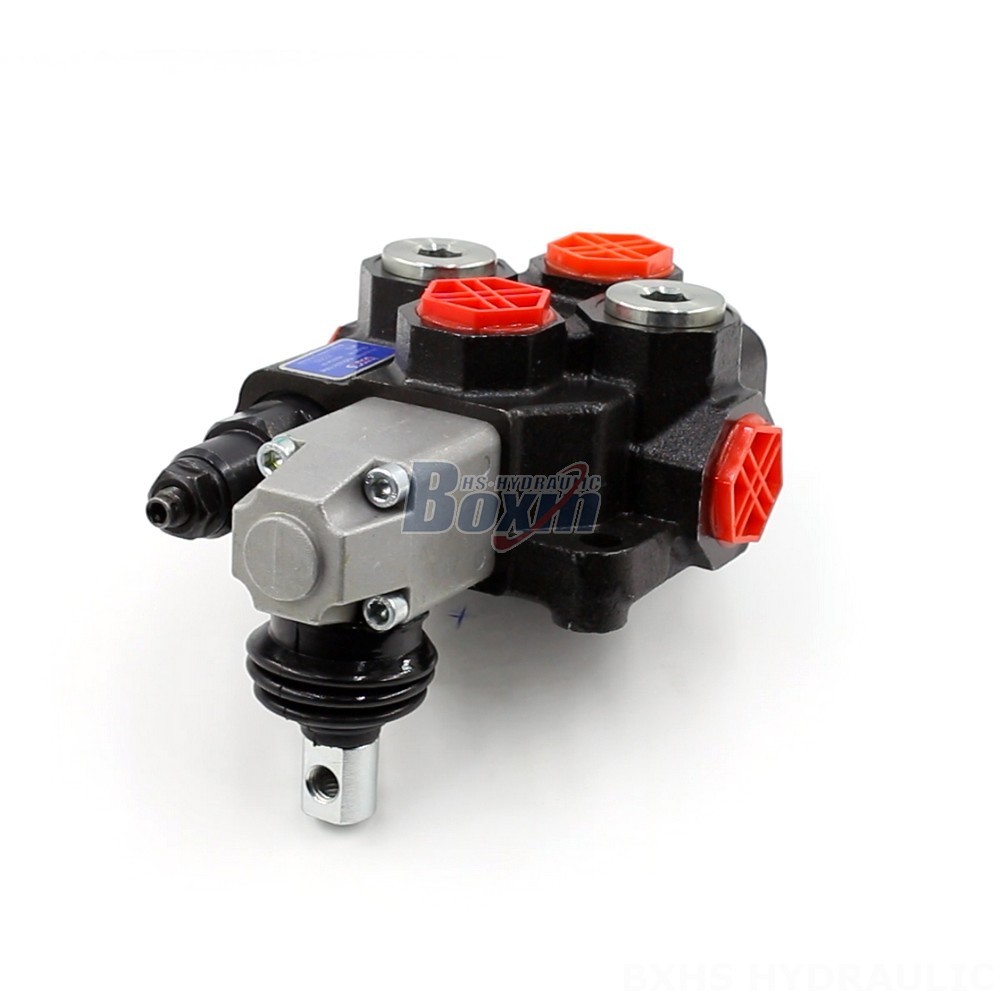

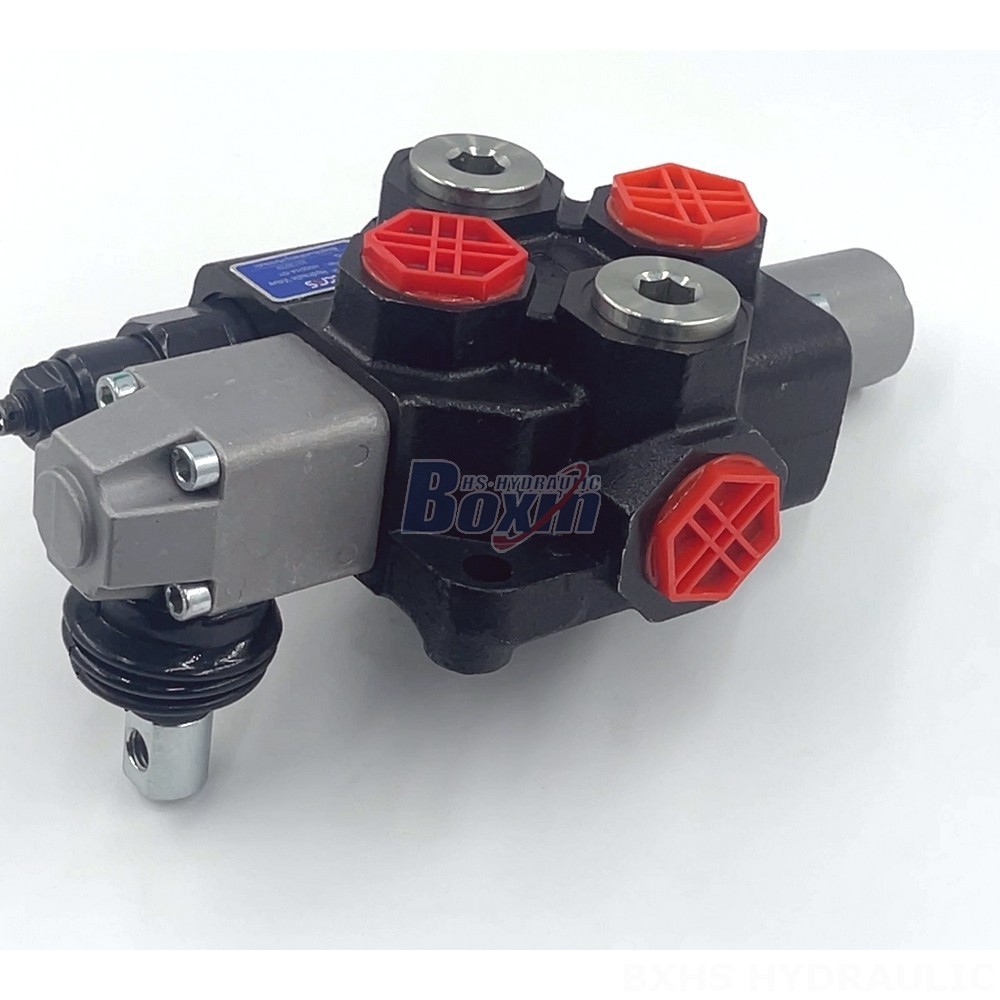

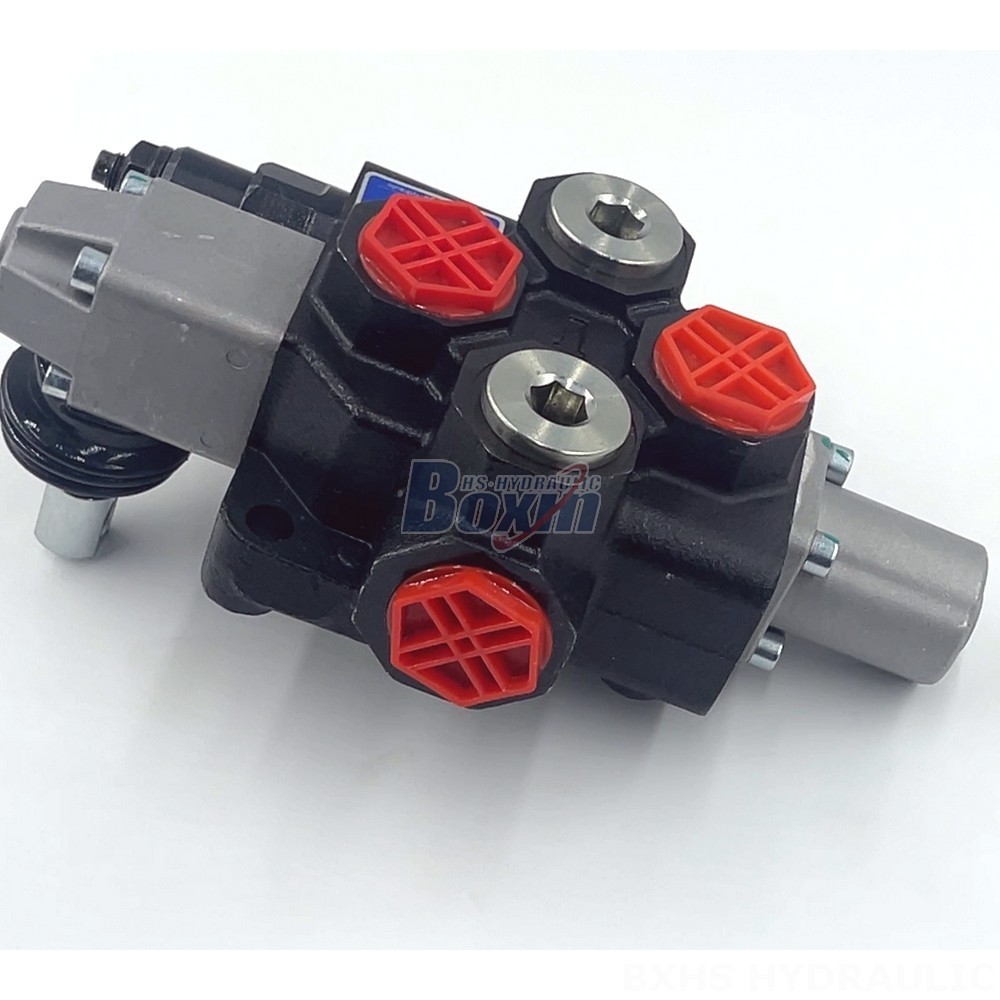

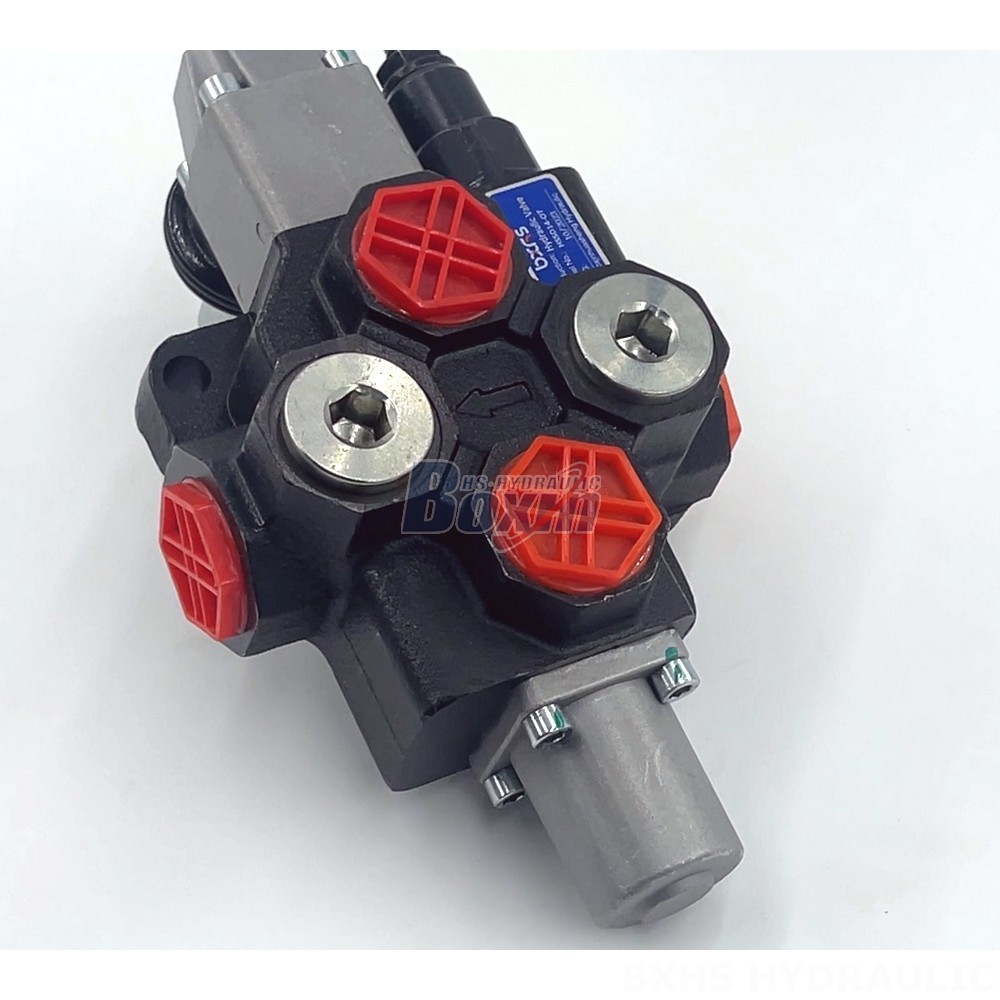

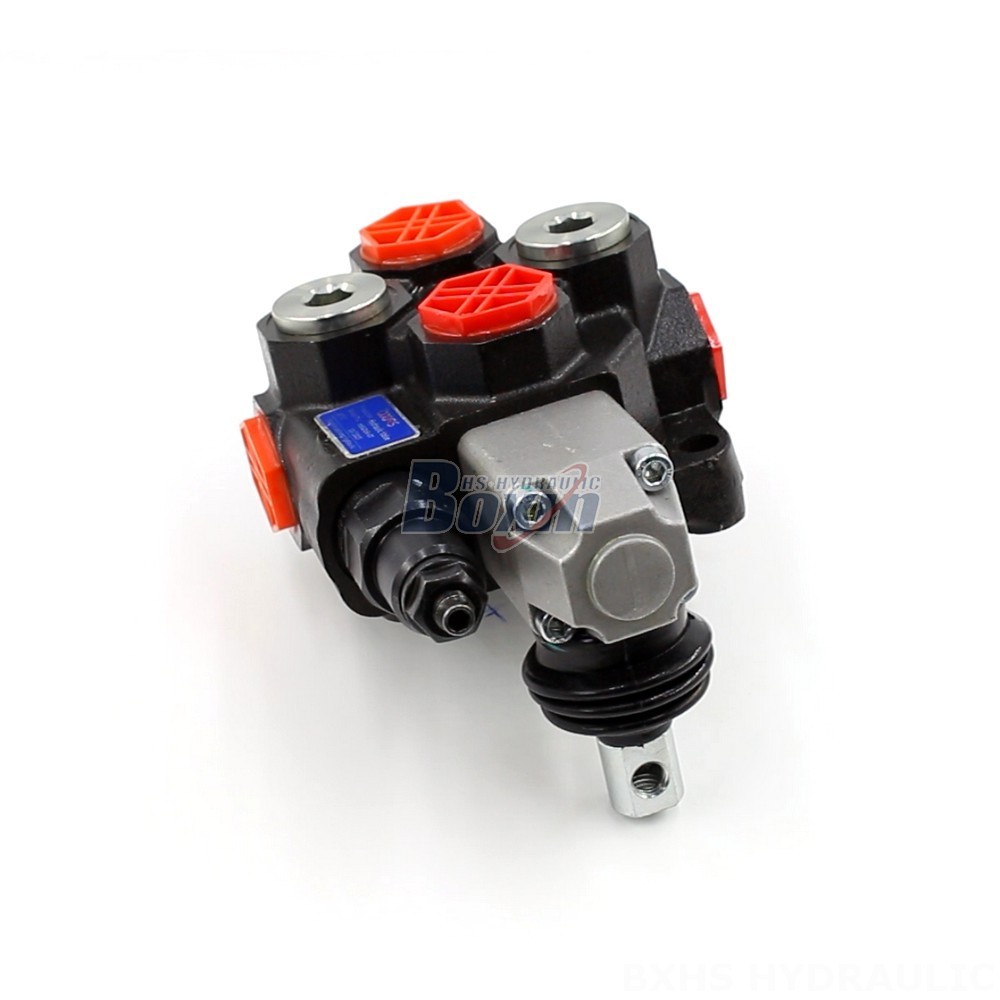

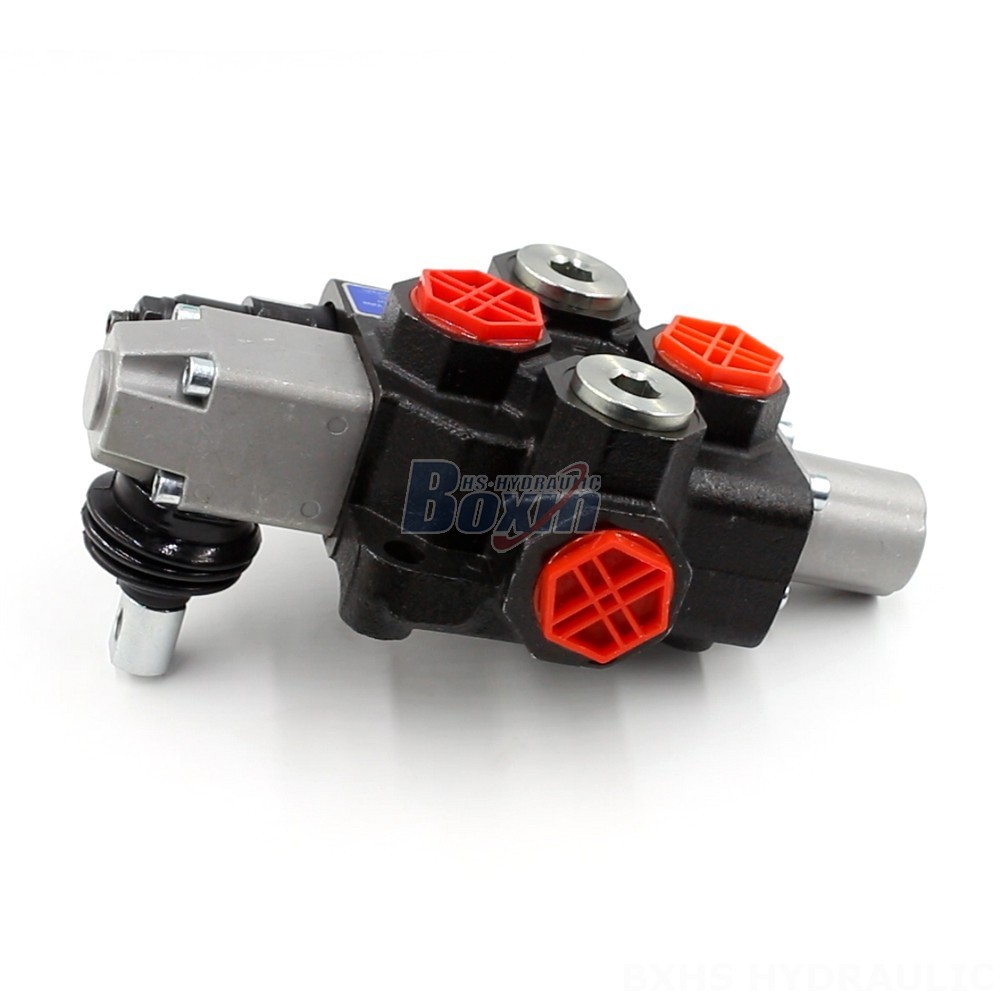

The SD14 Directional Control Valve is a reliable and robust manual control valve designed for use in a wide range of applications including construction, material handling, agriculture and industrial vehicles. This monoblock valve features a compact design with a 120 L/min flow rate and a maximum pressure rating of 315 bar.
| SD14 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 유압 |
| 스풀 | 1 스풀 |
| 주변 온도 범위 | -40°C to +60°C (-40°F to +140°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 120 L/분 (31.7 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G3/4 |
| 출구 포트 | G3/4 |
| 포트 크기 | G3/4 |
The SD14 Series Directional Control Valve is a high-quality, manual control valve manufactured for durability and performance. It features a compact monoblock design with a single spool and offers a flow rate of 120 L/min at a maximum pressure of 315 bar. Designed for a wide range of operating temperatures (-40°C to +60°C), this valve is ideal for use in demanding applications involving construction equipment, material handling machinery, agricultural equipment, and industrial vehicles. Specific applications include telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini- and midi- excavators, skid steer loaders, and compact wheel loaders.
