Source ZT20 Directional Control Valves from a Trusted Manufacturer

제어 방식:수동

스풀:2 스풀

정격 유량:분당 90리터 (23.8 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G3/4

출구 포트:G3/4

포트 크기:G3/4

브랜드:BXHS

제품 유형:유압 제어 밸브

제품 시리즈:ZT20 시리즈 유압 제어 밸브

포장 크기:23*18*11

총중량:7.91 kg

재고 상태: 재고 있음

1152 이 제품을 찾아보시지 않겠습니까?

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer

Source ZT20 Directional Control Valves from a Trusted Manufacturer drawing image

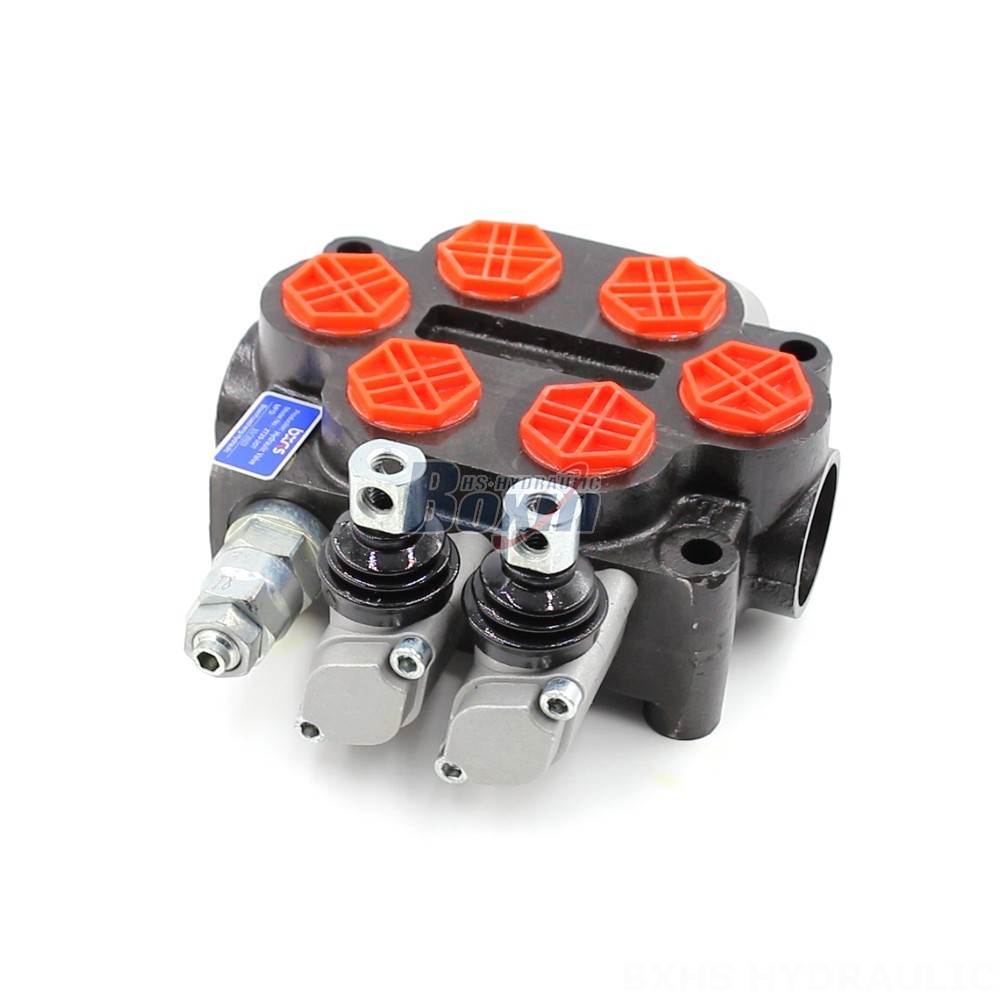

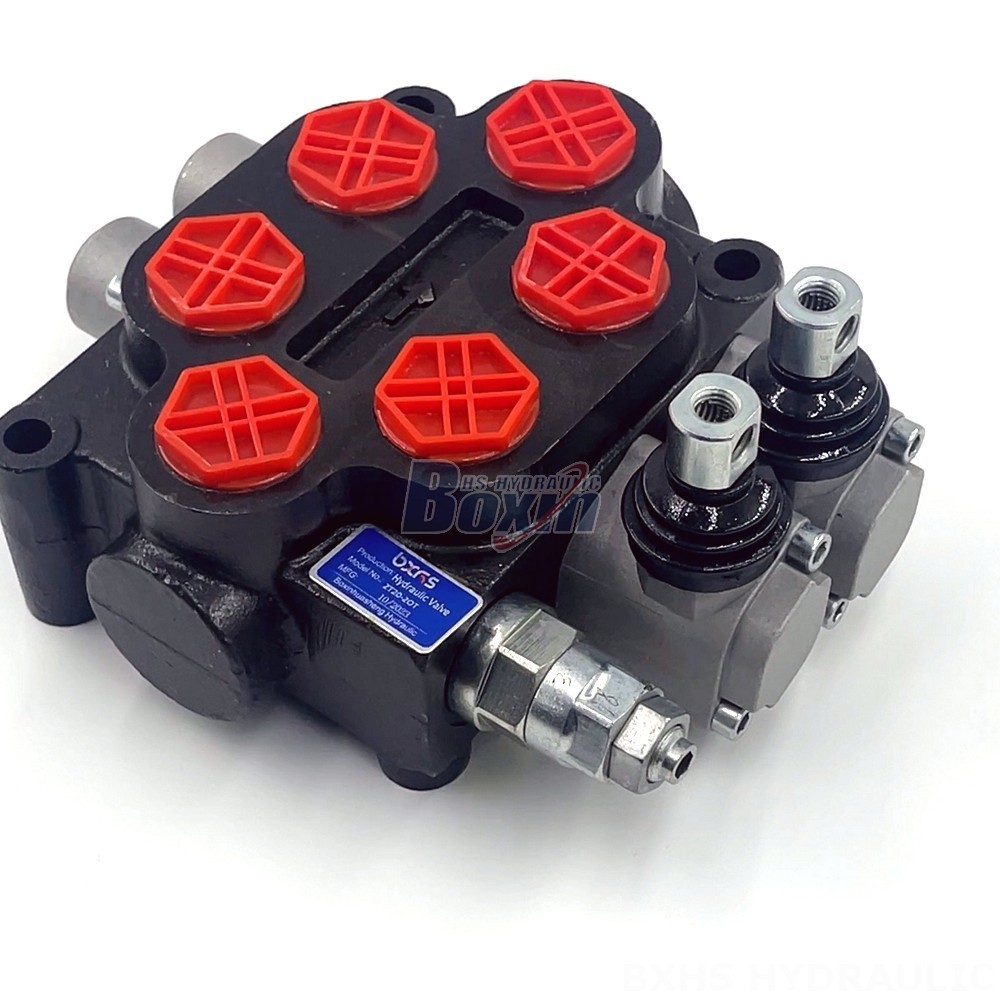

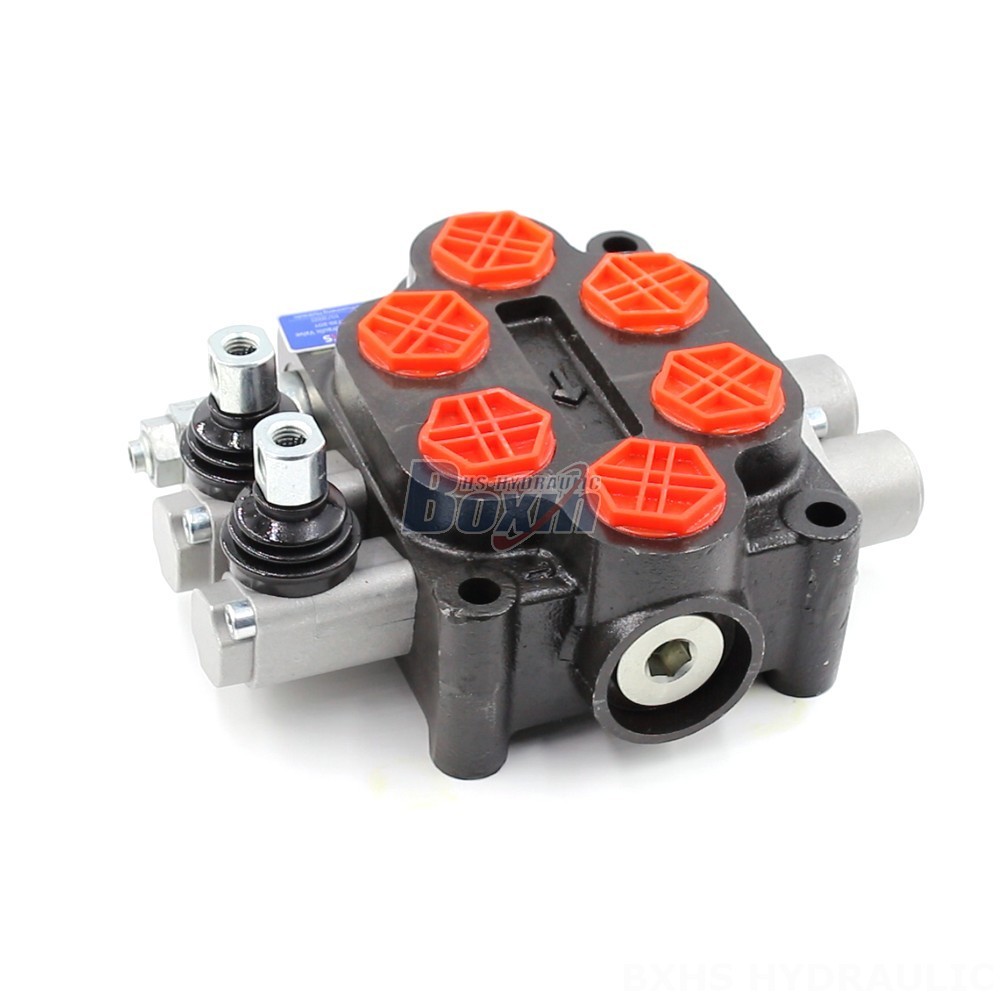

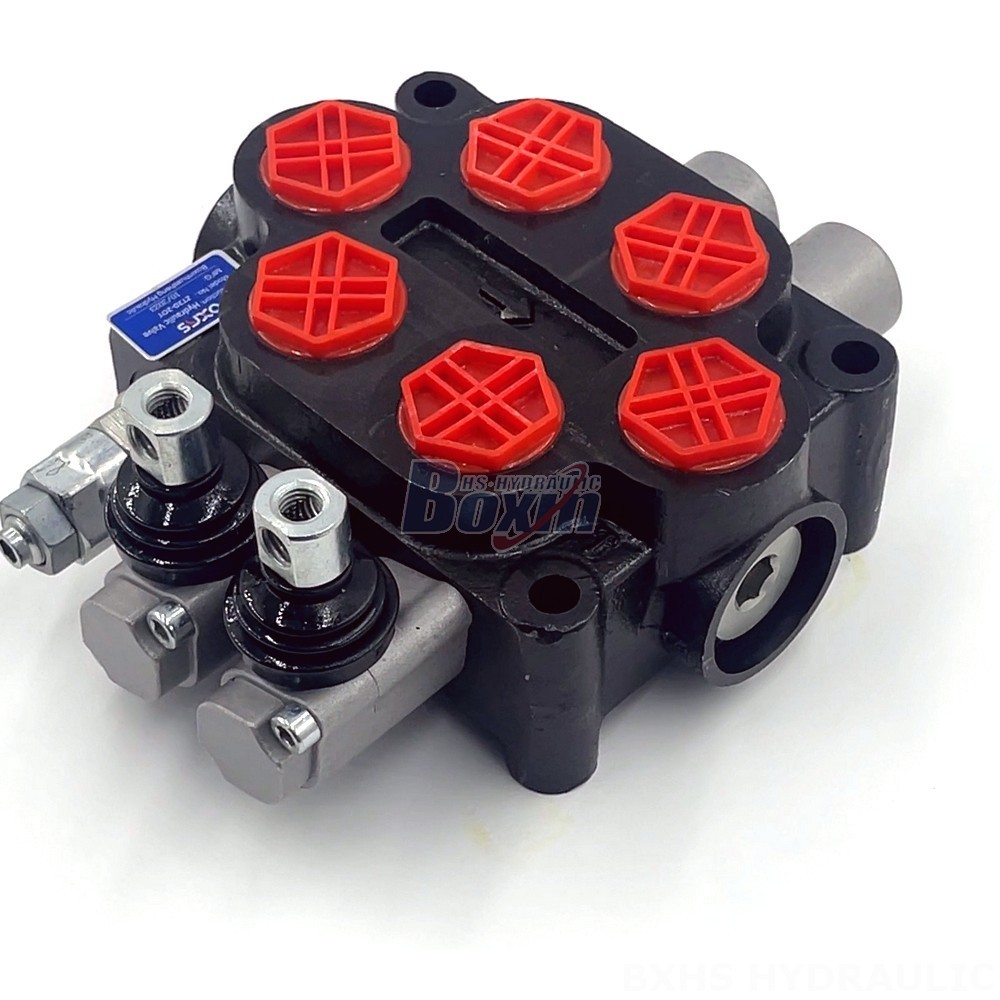

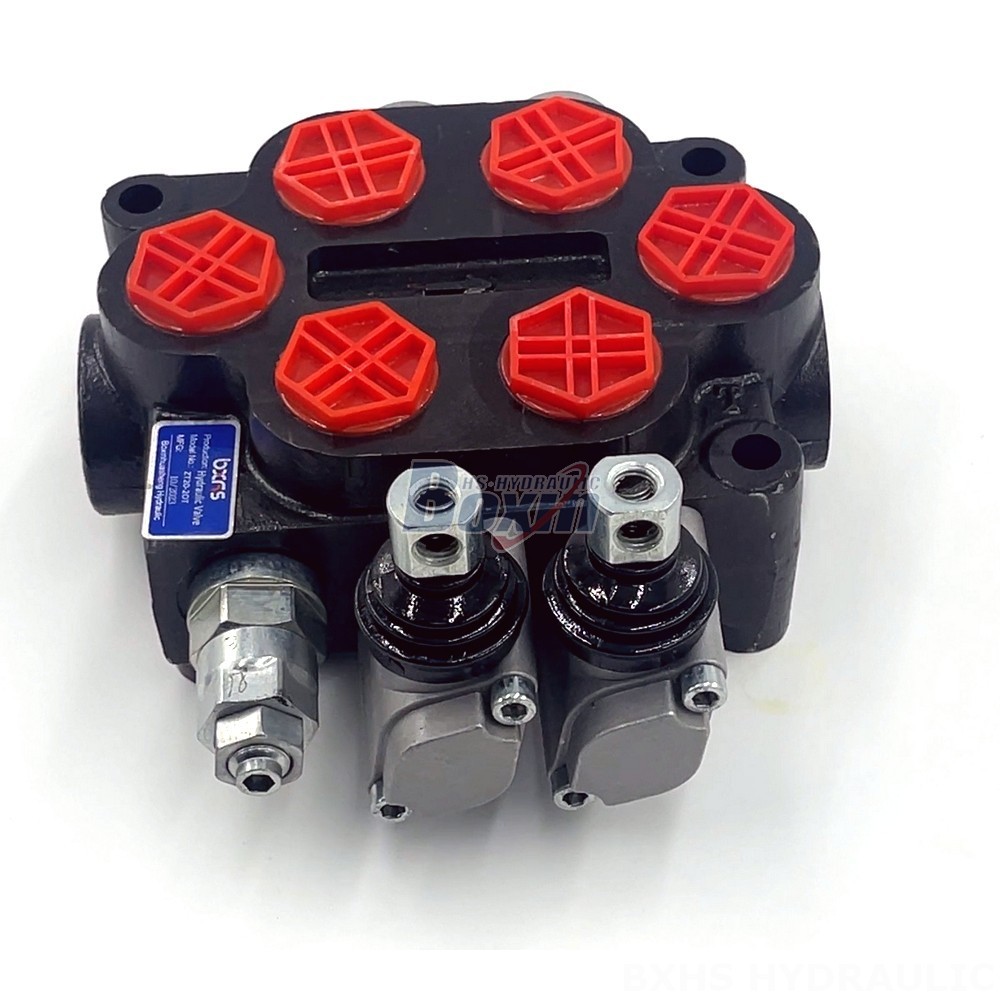

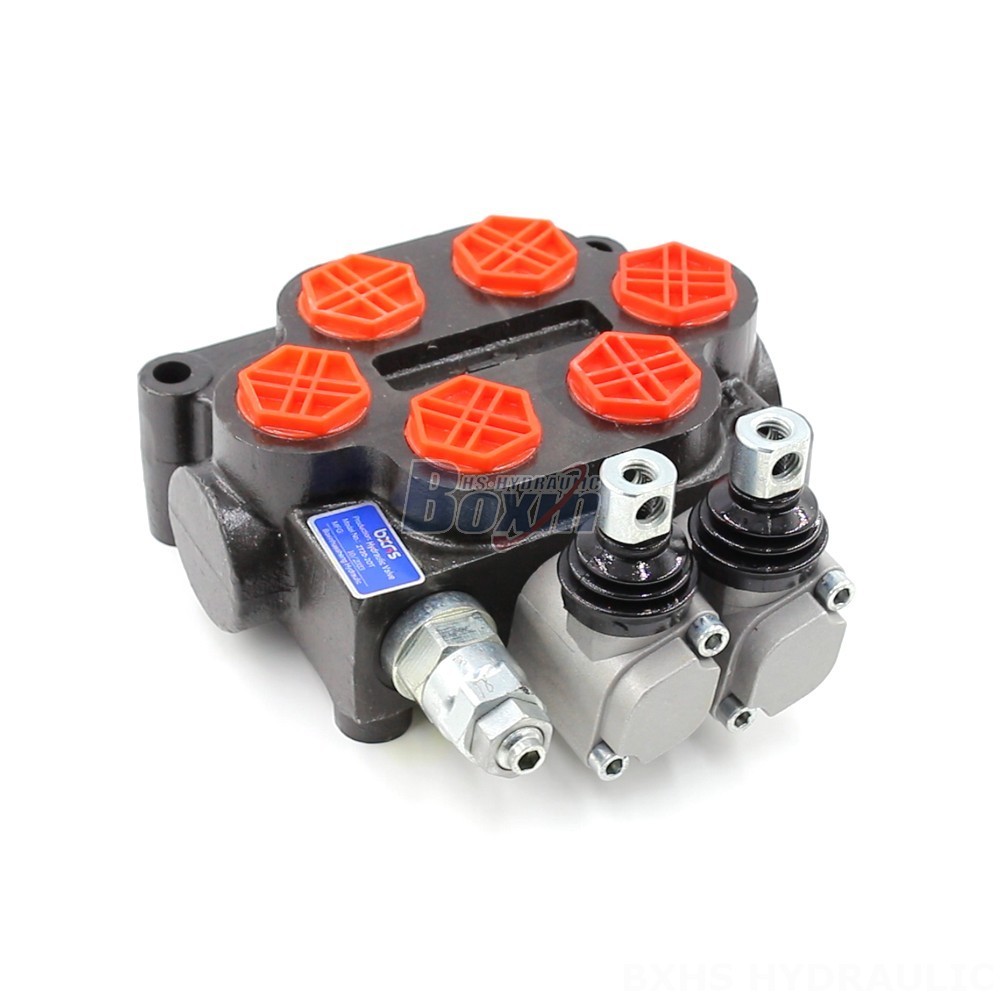

The ZT20 Series Directional Control Valve is a high-performance, 2-section monoblock valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. It features manual control, 100 L/min rated flow, and 250 bar maximum pressure.

ZT20 시리즈 유압 제어 밸브 매개변수
제어 방식 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀
정격 유량 분당 100리터 (26.5 US gpm)
최대 압력 250바 (3600 psi)
입구 포트 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트 G1/2, G3/4, M22×1.5, M27×2.0, SAE 8, SAE 10, 1/2 NPT, 3/4 NPT
포트 크기 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션
구조 유형 모노블록 밸브
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)

This ZT20 Series Directional Control Valve is a reliable and durable solution for your hydraulic system needs. It features a compact, monoblock design with a 2-section configuration, offering precise control and efficient operation. With a rated flow of 100 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications. Its manual control allows for easy operation and adjustment. The valve is designed for use in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. With a robust construction and high-quality materials, this ZT20 Series valve delivers long-lasting performance and reliability.
