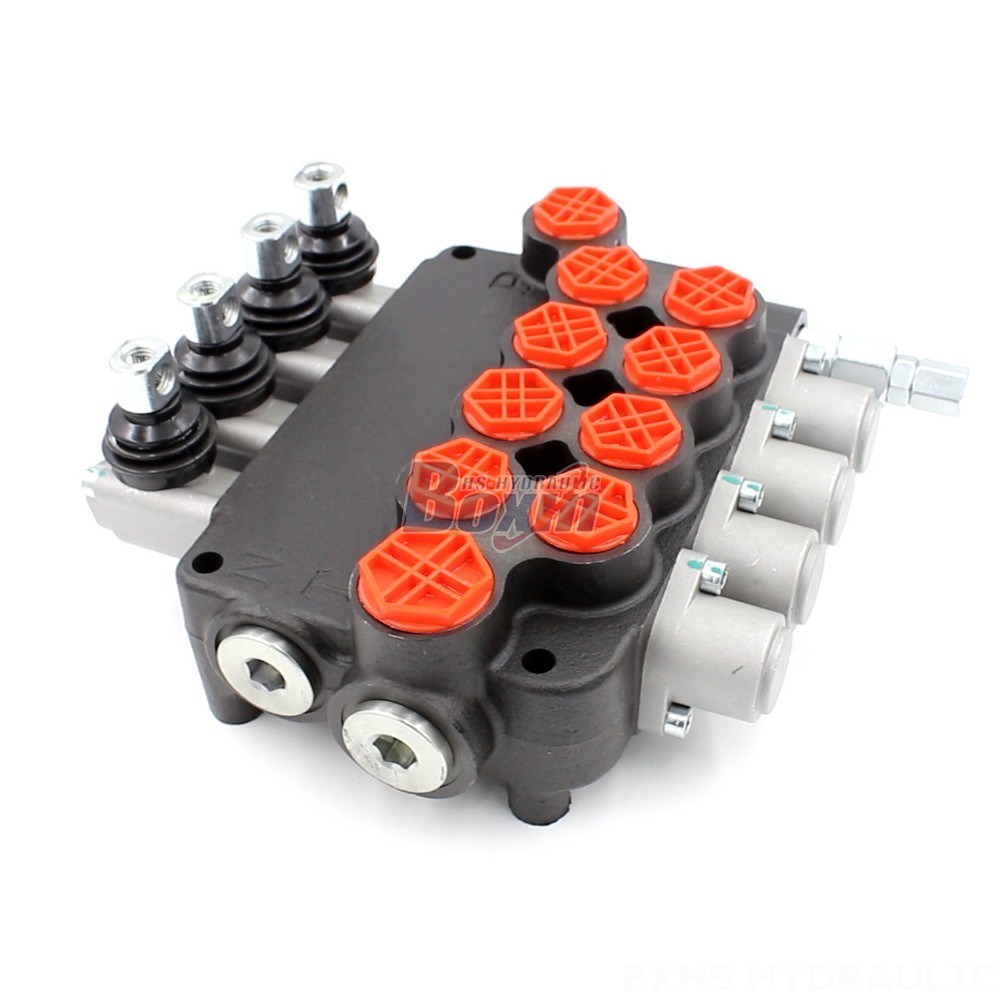

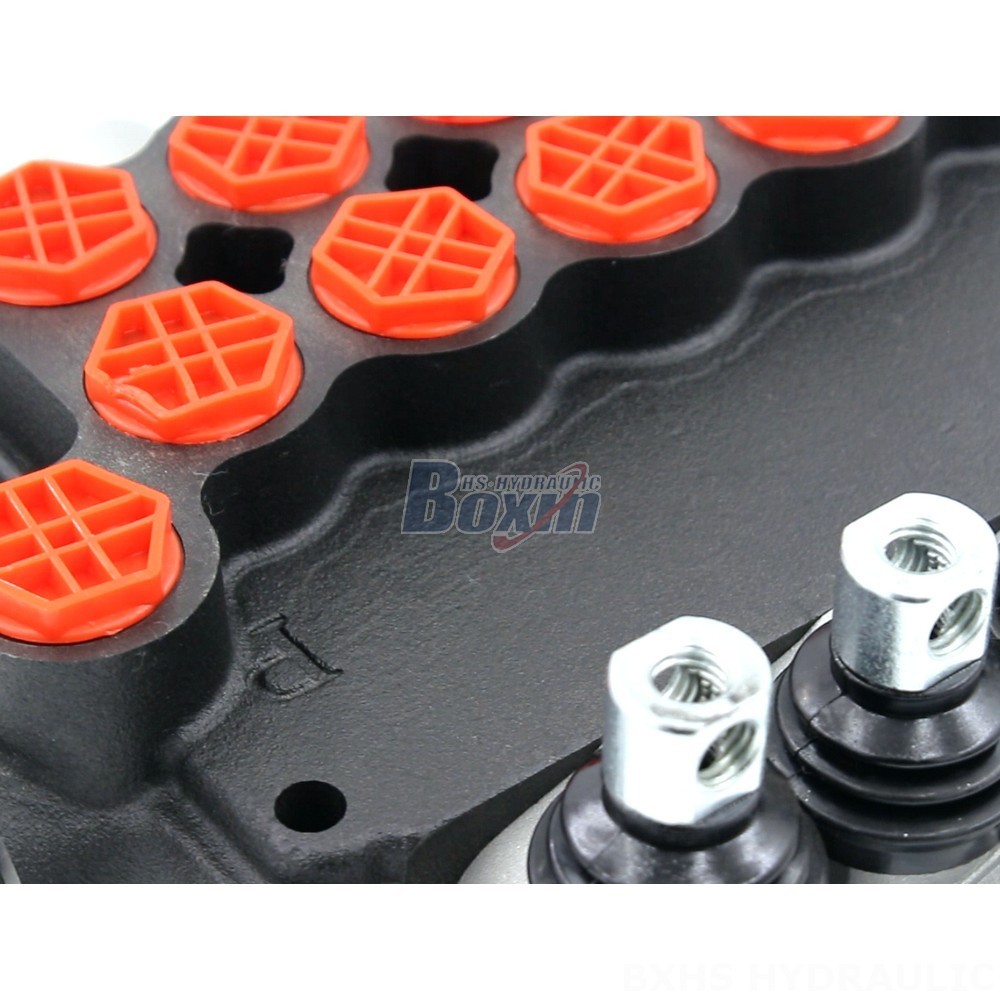

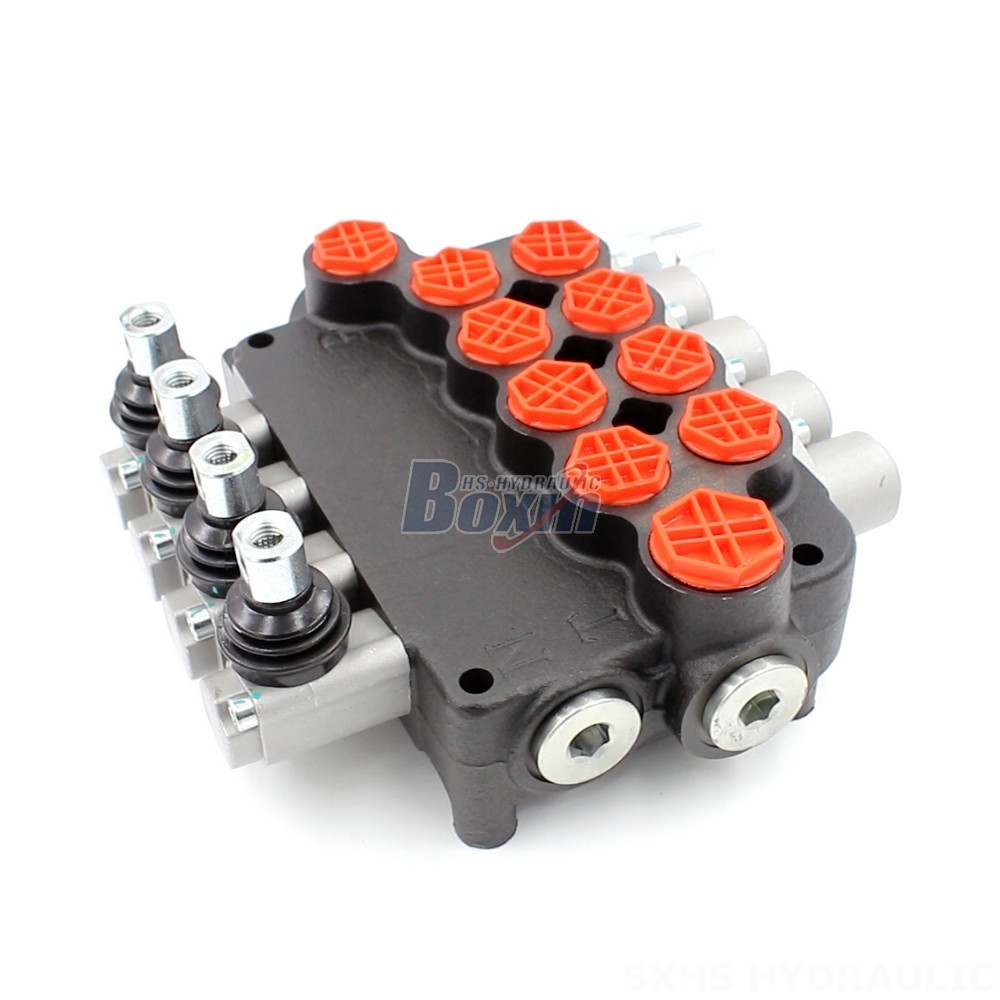

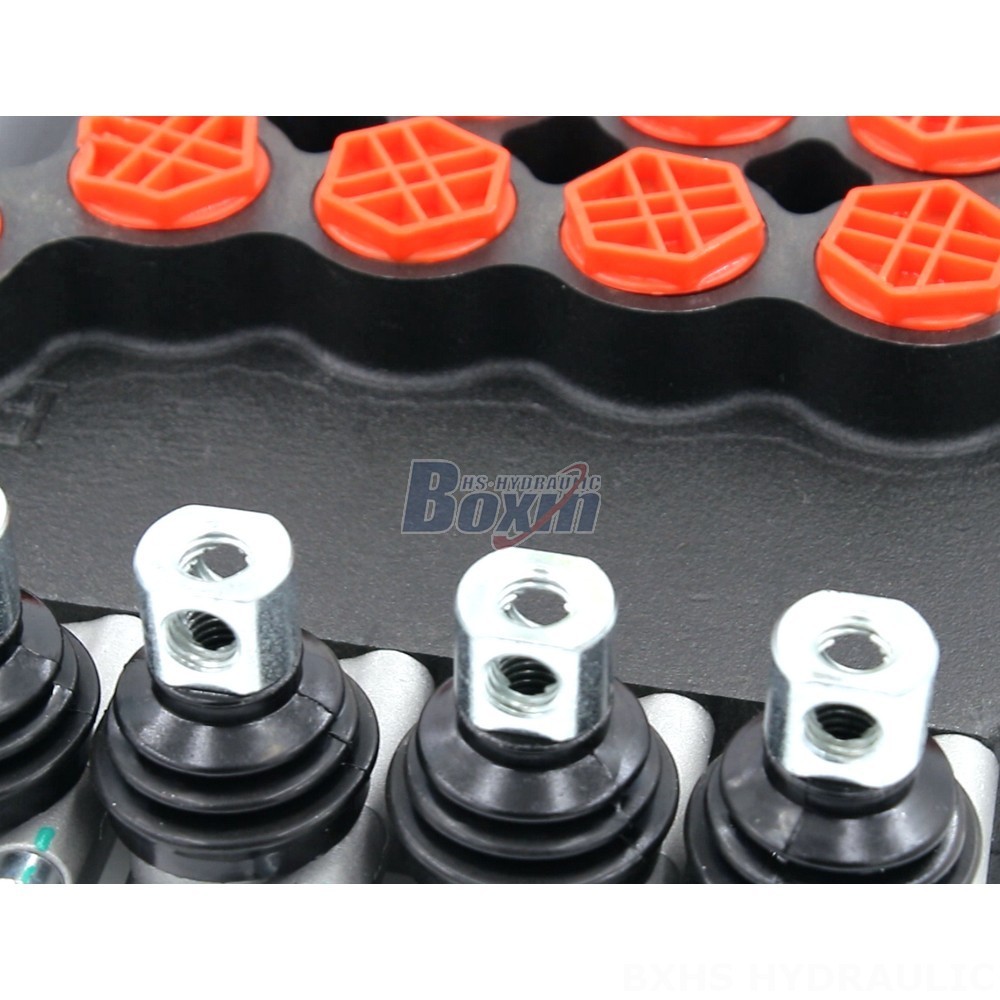

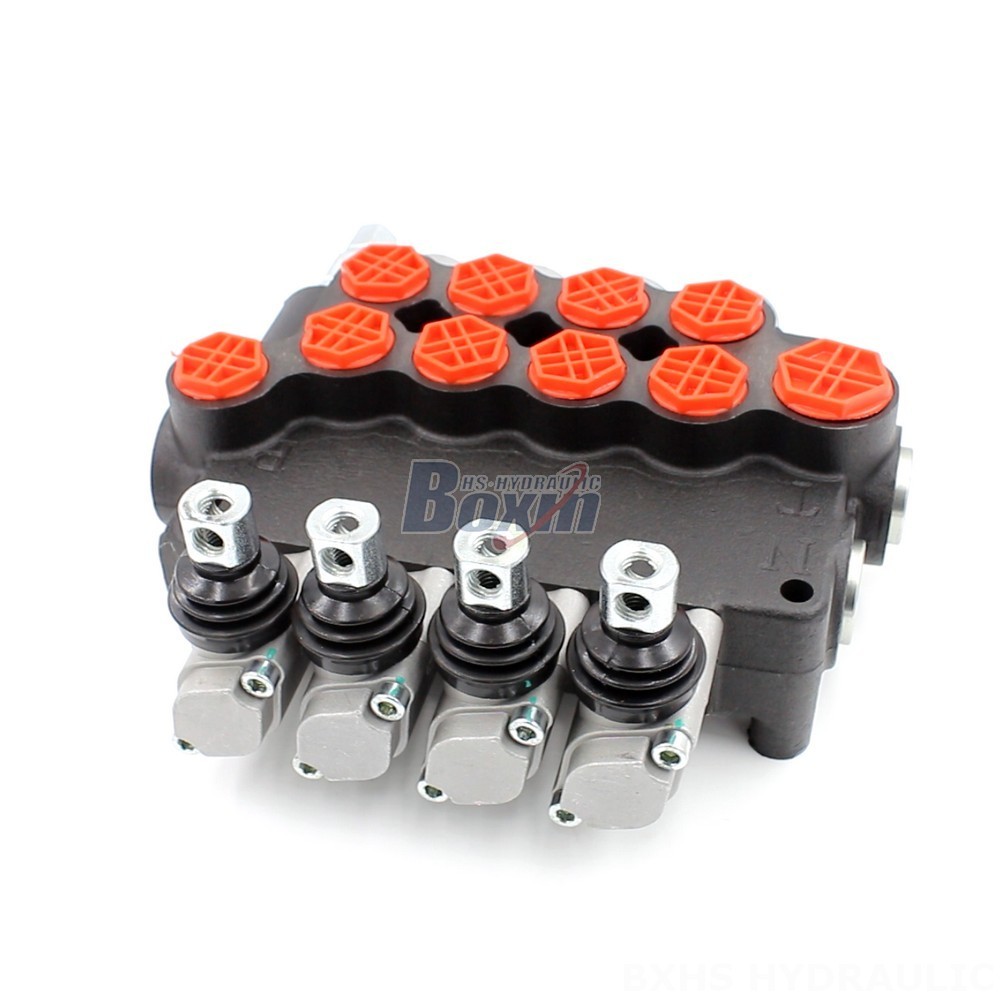

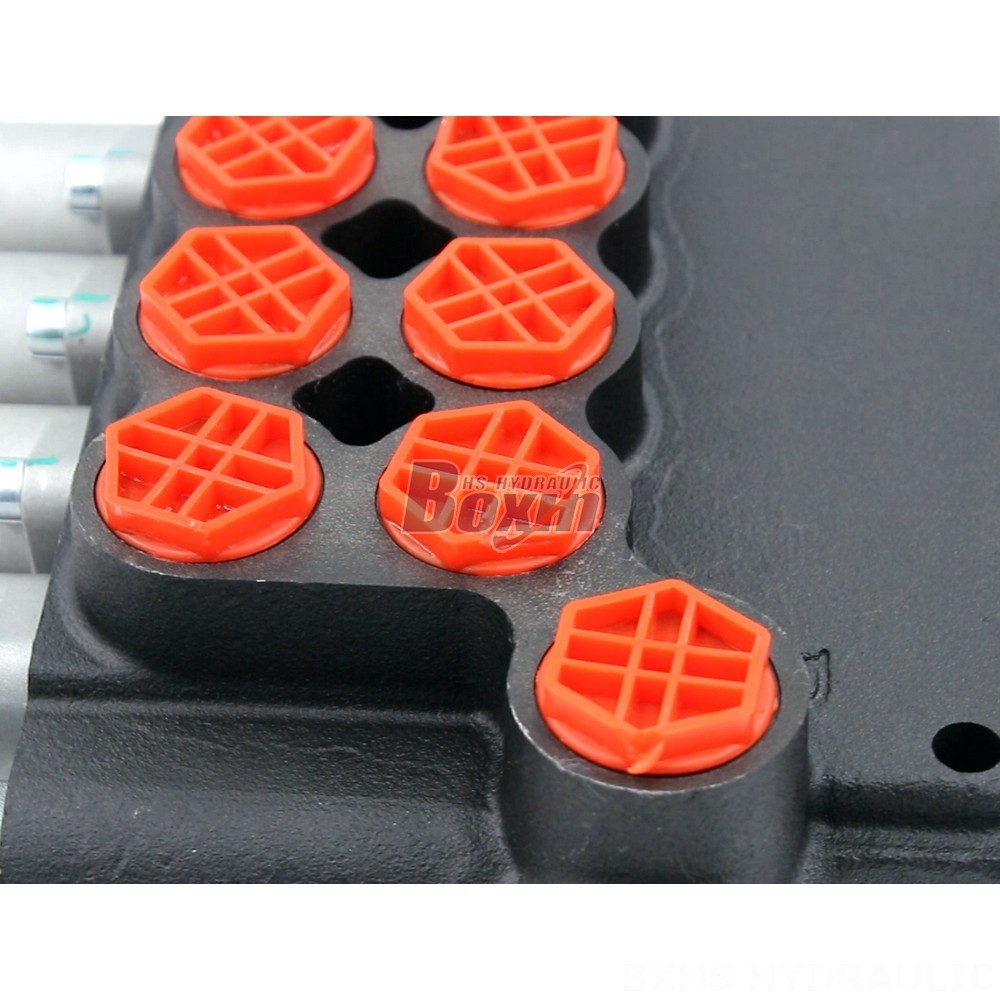

Spool Type Valve | G34 Series | 4 Spools

제어 방식:수동

스풀:4 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G3/4

출구 포트:G3/4

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P80 시리즈 모노블럭 방향 제어 밸브

포장 크기:26*27*11

총중량:13.40 kg

재고 상태: 재고 있음

1225 이 제품을 찾아보시지 않겠습니까?

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools

Spool Type Valve | G34 Series | 4 Spools drawing image

The G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a robust and reliable solution for various applications in construction, material handling, agriculture, and industrial vehicles. It features a monoblock valve design, manual control, and a rated flow of 80 L/min, making it suitable for demanding tasks.

P80 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 80리터 (21.2 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This G34 Series 4-Spool Hydraulic Sectional Directional Control Valve is a high-performance valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It boasts a robust monoblock valve structure with 4 spools, offering precise and efficient control of hydraulic systems. The valve is manually controlled and has a rated flow of 80 L/min, making it ideal for handling various tasks. It operates at a maximum pressure of 250 bar and is compatible with a wide viscosity range (15 - 75 mm²/s). Designed for durability and reliability, this valve can withstand ambient temperatures ranging from -40°C to +80°C. Its versatile design makes it suitable for a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
